In the Decode menu, click or tap the drop-down button of Bus Type to select
Parallel, then configure the parameters for Parallel decoding.

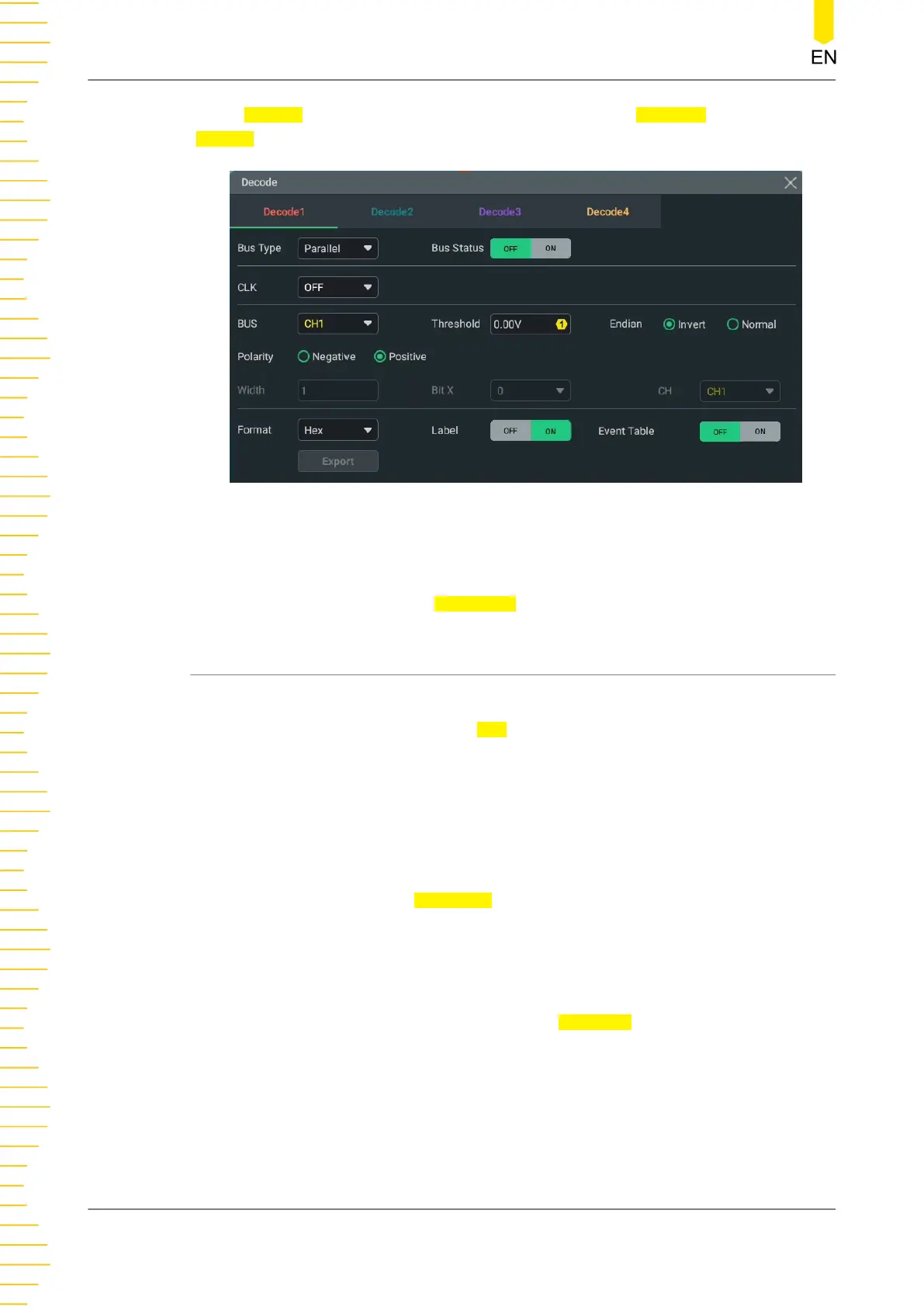

Figure 19.2 Parallel Decoding Menu
Bus Status
Click or tap the ON/OFF tab for Bus Status to enable or disable the bus decoding.
19.1.1 Clock Setting (CLK)
Clock Setting (CLK)
Click or tap the drop-down button of CLK to select the analog channel or the digital
channel as the desired clock channel. If "OFF" is selected, no clock channel is set, and
sampling is performed when a hop occurs to the data of the data channel during
decoding.
Threshold
When the clock source is set to an analog channel, you need to set the threshold.
Click or tap the input field of Threshold to set the threshold with the pop-up numeric
keypad. You can also use the specified knob to set it. The range of the threshold is
related to the current vertical scale and offset.
CLK Edge
You can select "Rising", "Falling", or "Both" for CLK Edge when configuring the
clock channel.
• Rising: samples the channel data on the rising edge of the clock.
• Falling: samples the channel data on the falling edge of the clock.
Protocol Decoding
MHO2000 User Guide
220
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
