Pass/Fail Test
During the product design and manufacturing process, you usually need to monitor
the variations of the signal or judge whether the product is up to standard. The pass/
fail test function of this series oscilloscope can accomplish this task perfectly. With
this function, you can set the test mask based on the known "basic" waveforms, then
compare the signal under test with the "basic" waveforms to display the test result.
When a successful or failed event is detected, you can set the error action performed
by the instrument, such as stopping immediately, enabling the beeper to sound, and
capturing the current screen shot.
Click or tap the function navigation icon
at the lower-left corner of the screen to
open the function navigation menu. Click or tap to select
Pass/Fail to enter the pass/
fail test interface. You can also press on the front panel, then click or tap Pass/
Fail to enter the pass/fail test interface.

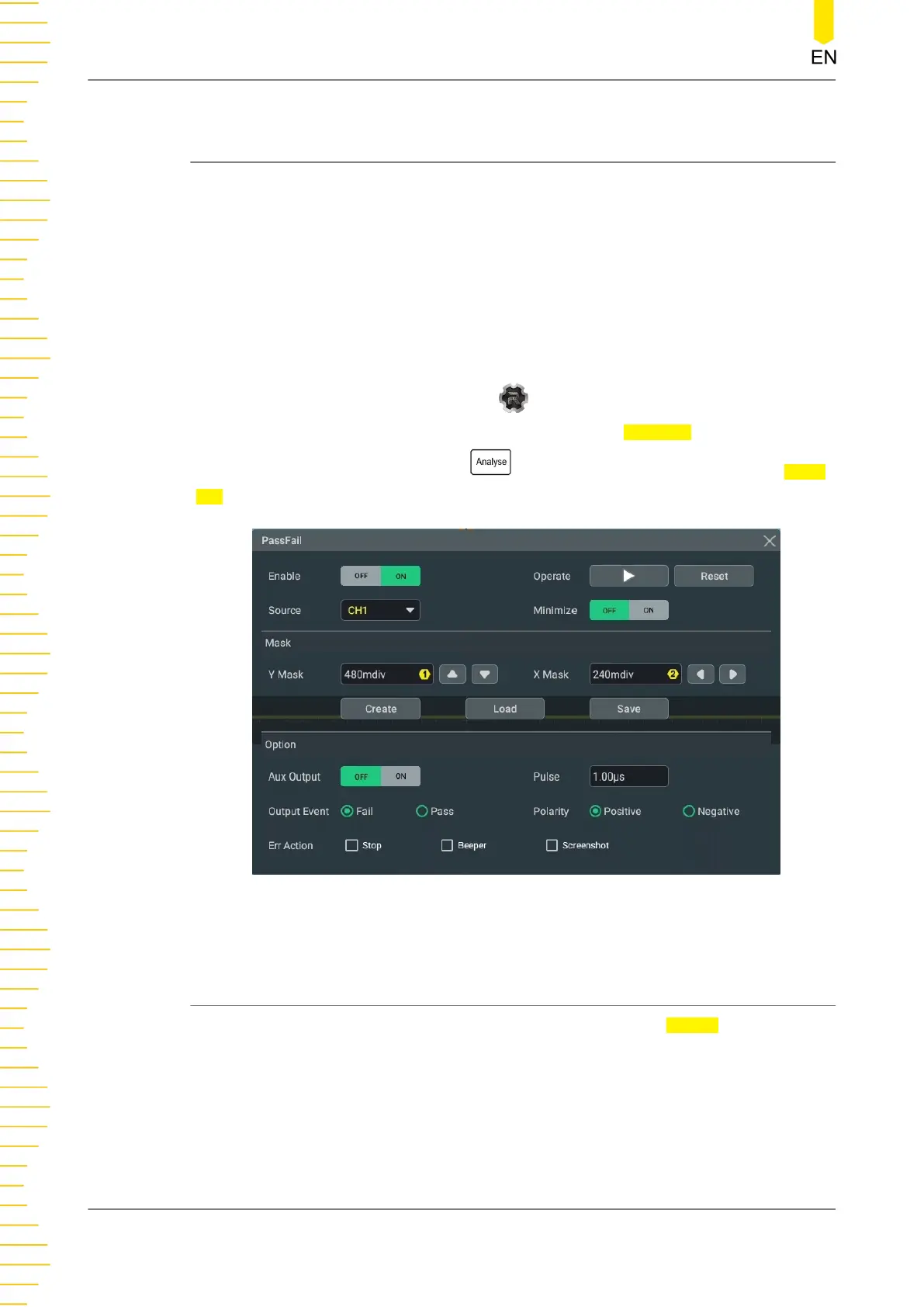

Figure 18.1 Pass/Fail Test Menu
18.1 To Enable or Disable the Pass/Fail Test Function
In the "Pass/Fail" setting menu, click or tap the ON/OFF tab for Enable to enable or
disable the pass/fail test function.
When enabled, you can select the source, set the test mask, and set the parameters
for the output of the test results.
Pass/Fail Test
MHO2000 User Guide
214
