16
Power Analysis (Option)
This series oscilloscope supports power analysis function, which can help you easily
analyze the efficiency and reliability of the switching power supply. With the power
analysis function, you can analyze the power quality and output ripple noise of the
input power. To enter the
UPA interface, perform any of the following operations:
• Click or tap and select UPA to enter the "UPA" menu.
• Press the front-panel key and then select UPA to enter the "UPA" menu.

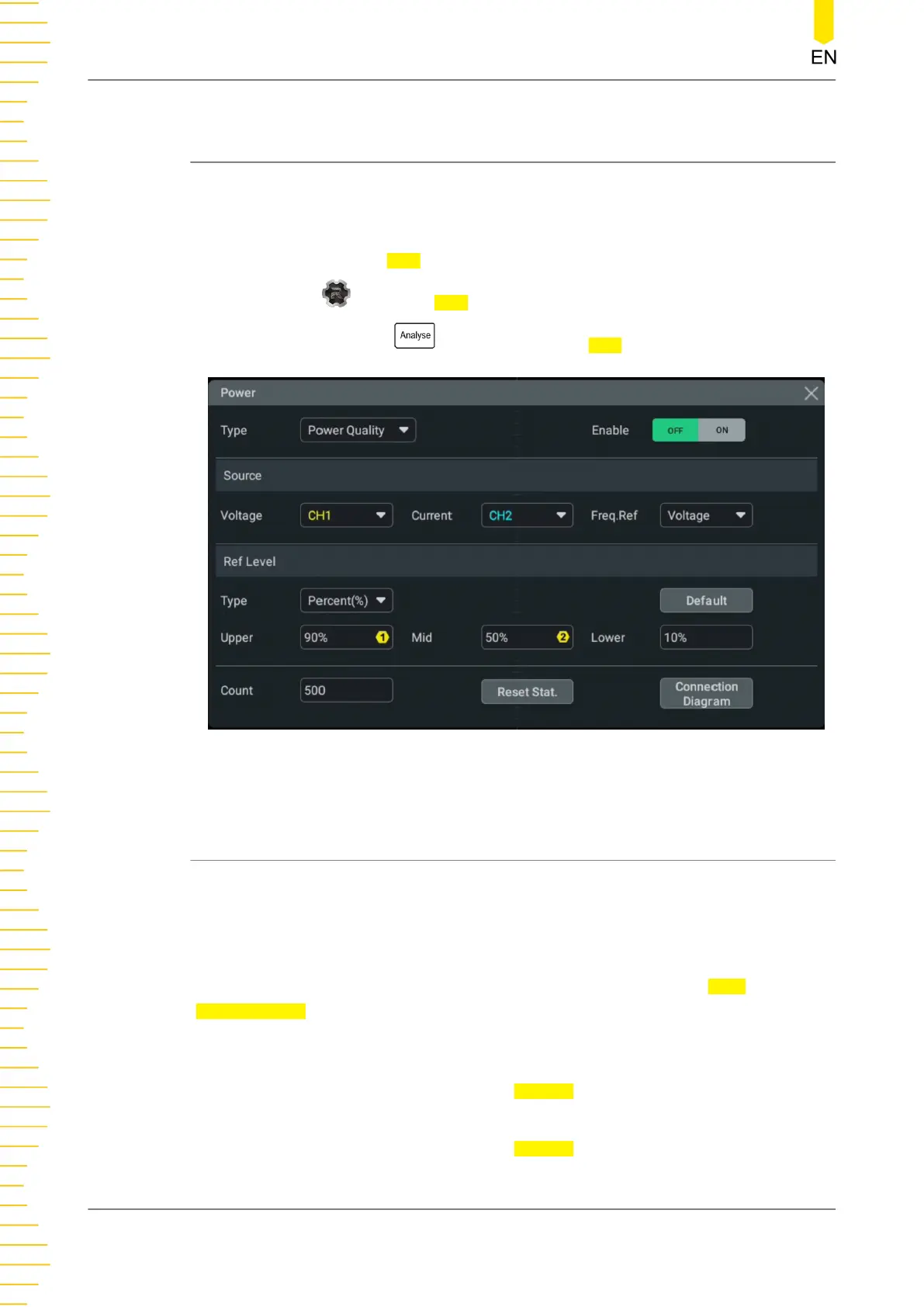

Figure 16.1 Power Analysis Interface
16.1 Power Quality
By analyzing the power quality, you can test the quality of AC input lines. The specific
measurement parameters for power quality analysis include reference frequency,
V_RMS, I_RMS, real power, apparent power, reactive power, power factor, phase angle,
impedance, voltage crest factor, and current crest factor.
In the power analysis interface, click or tap the drop-down button of Type to select
Power Quality.
Set Power Quality Analysis Source
• Click or tap the drop-down button of Voltage to select the desired voltage
source from the drop-down list. The sources include CH1-CH4.
• Click or tap the drop-down button of Current to select the desired current
source from the drop-down list. The sources include CH1-CH4.
Power Analysis (Option)
MHO2000 User Guide
204
