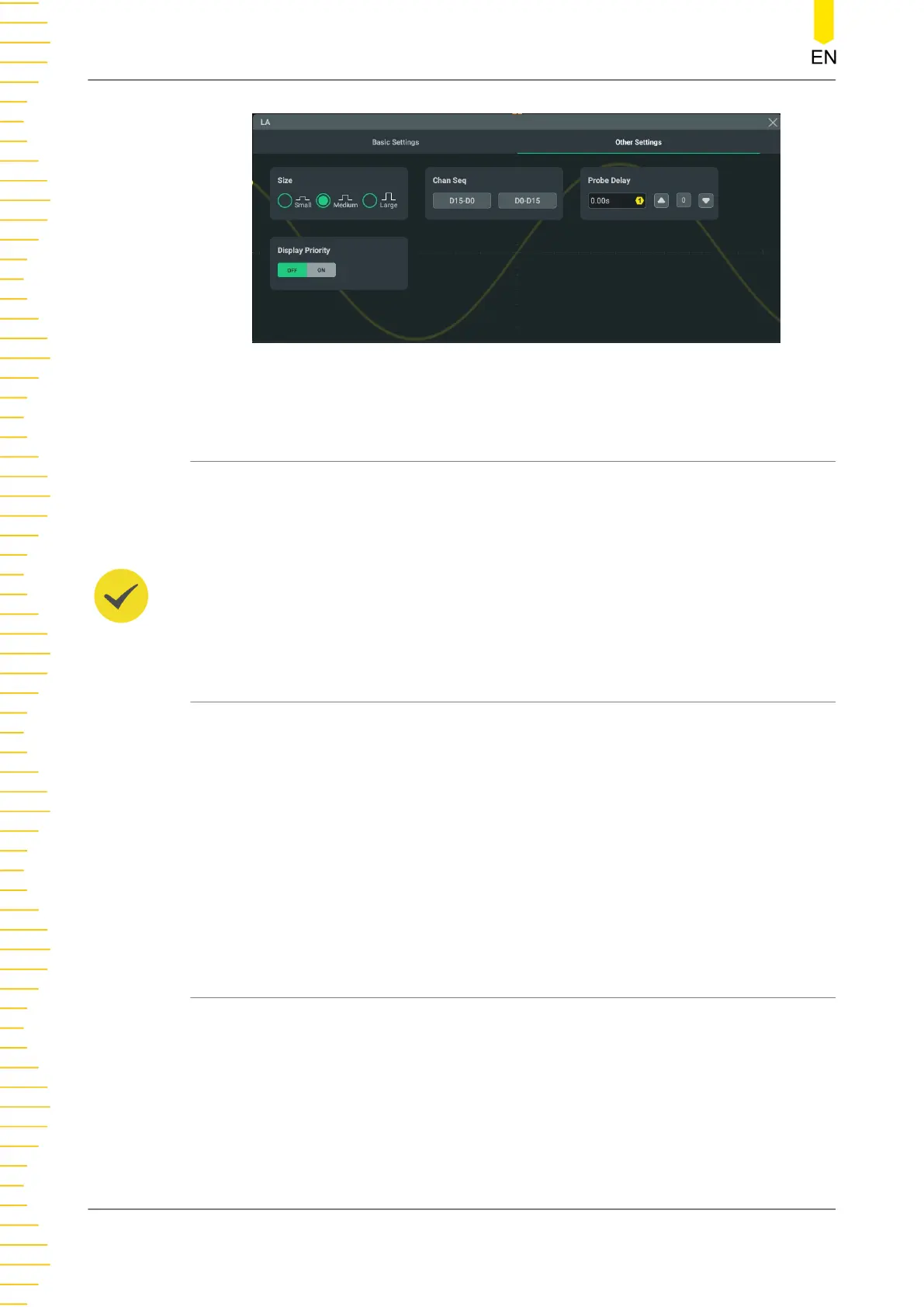

Figure 12.2 "Other Settings" Tab of Logic Analyzer Interface
12.2.1 To Set the Waveform Size
This series oscilloscope allows you to set the waveform size for the digital channels. If
you need to observe several waveforms of the digital channels, you can set the
waveform size to small, medium, and large to make them easy to observe.
TIP
"Large" is only available when the number of currently enabled digital channels is less than or
equal to 8.
12.2.2 To Set the Channel Sequence
You can set the waveform sequence for the enabled channels according to your
needs.
• D0-D15: the waveforms of D0-D15 are displayed in sequence on the screen in
the waveform view.
• D15-D0: the waveforms of D15-D0 are displayed in sequence on the screen in
the waveform view.
You can also drag the waveform of the specified digital channel to a specified
position to adjust the channel waveform sequence.
12.2.3 Priority of the Waveform Display
When the waveform of the digital channel and that of the analog channel are
overlapped, you can enable or disable the priority of the waveforms of the analog
channels and the digital channels to be displayed.
• When set to OFF, the waveform of the analog channel is displayed in high
priority. The waveforms of the digital channels are overlaid.
Digital Channel
MHO2000 User Guide
176
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
