12.1.1 To Enable or Disable the Digital Channel
The LA function allows you to enable or disable all the channels of the specified

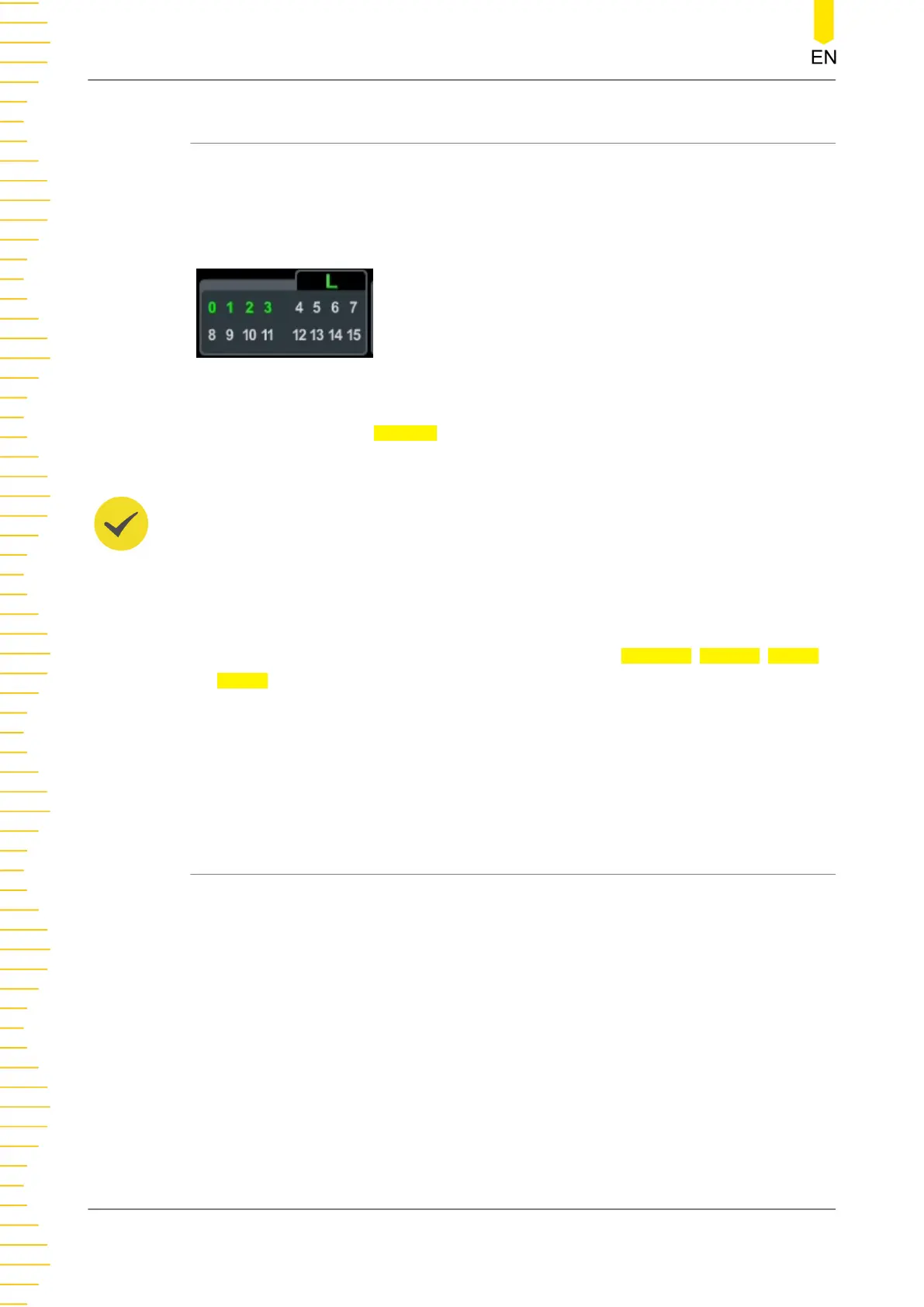

group; enable or disable each single digital channel. The digital channel label at the
bottom of the screen displays the on/off status of the digital channel. The channels
indicated in gray are disabled and those indicated in green are enabled.
Enable or Disable a Single Channel
You can click or tap the ON/OFF tab following the specified digital channel to enable
or disable any of digital channels (D0-D15).
TIP
When the specified group of digital channels is enabled or disabled, you can still set the on/off
status independently for the specified channel in this group.
Enable or Disable the Channels of a Specified Group
In the LA interface, you can enable or disable all the digital channels in the specified
group with the global on/off tab for the specified group (D15-D12, D11-D8, D7-D4,
or
D3-D0).
On/Off Control of All Channels
When some digital channels have been enabled and you want to disable all the
enabled channels, click to drag the digital channel label downward. You can also drag
it downward on the touch screen to disable all the enabled digital channels.
12.1.2 To Set the Label
By default, the instrument takes D0-D15 as the channel label of the 16 digital
channels respectively. You can set a user-defined label for each digital channel to
differentiate the channel and their input signal.
Enable or Disable the Label Display
Click or tap the ON/OFF tab for the channel label to display or hide the channel label
of the specified group channel. If enabled, the labels of the specified channel group
will be displayed at the leftmost side of the waveform view.
Use Preset Labels
This oscilloscope presets the common signal type names for the channel label,
including ACK, ADO, ADDR, BIT, CAS, CLK, and DATA.
Digital Channel
MHO2000 User Guide
174
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
