12
Digital Channel
MHO2000 series oscilloscope provides the standard configuration of the logic
analyzer (LA) function. It has 16 digital channels, with D3-D0 as one group, D7-D4 as
one group, D11-D8 as one group, D15-D12 as one group.
The oscilloscope compares the voltages acquired in each sample with the preset logic
threshold. If the voltage of the sample point is greater than the logic threshold, it will
be stored as logic "1"; otherwise, it will be stored as logic "0". The oscilloscope
displays logic levels ("1" and "0") in the form of a graph for you to easily detect and
analyze the errors in circuit design (hardware design and software design).
To enter the Logic Analyzer (LA) menu, perform one of the following operations:
• Press LA I or LA II key on the front panel to enter the LA menu.
• Click or tap the "L" label at the bottom of the screen to enter the logic analyzer
(LA) menu.
Before using the digital channels, connect the PLA3204 active logic analyzer probe
(option, required to purchase by yourself) to the oscilloscope and the device under
test (DUT). For details about how to use the PLA3204 probe, refer to descriptions in
PLA3204 Active Logic Probe User Guide
.
12.1 Basic Settings
In the Basic Settings tab, you can enable or disable the specified digital channel, set
the channel label, and set the threshold for the channel.

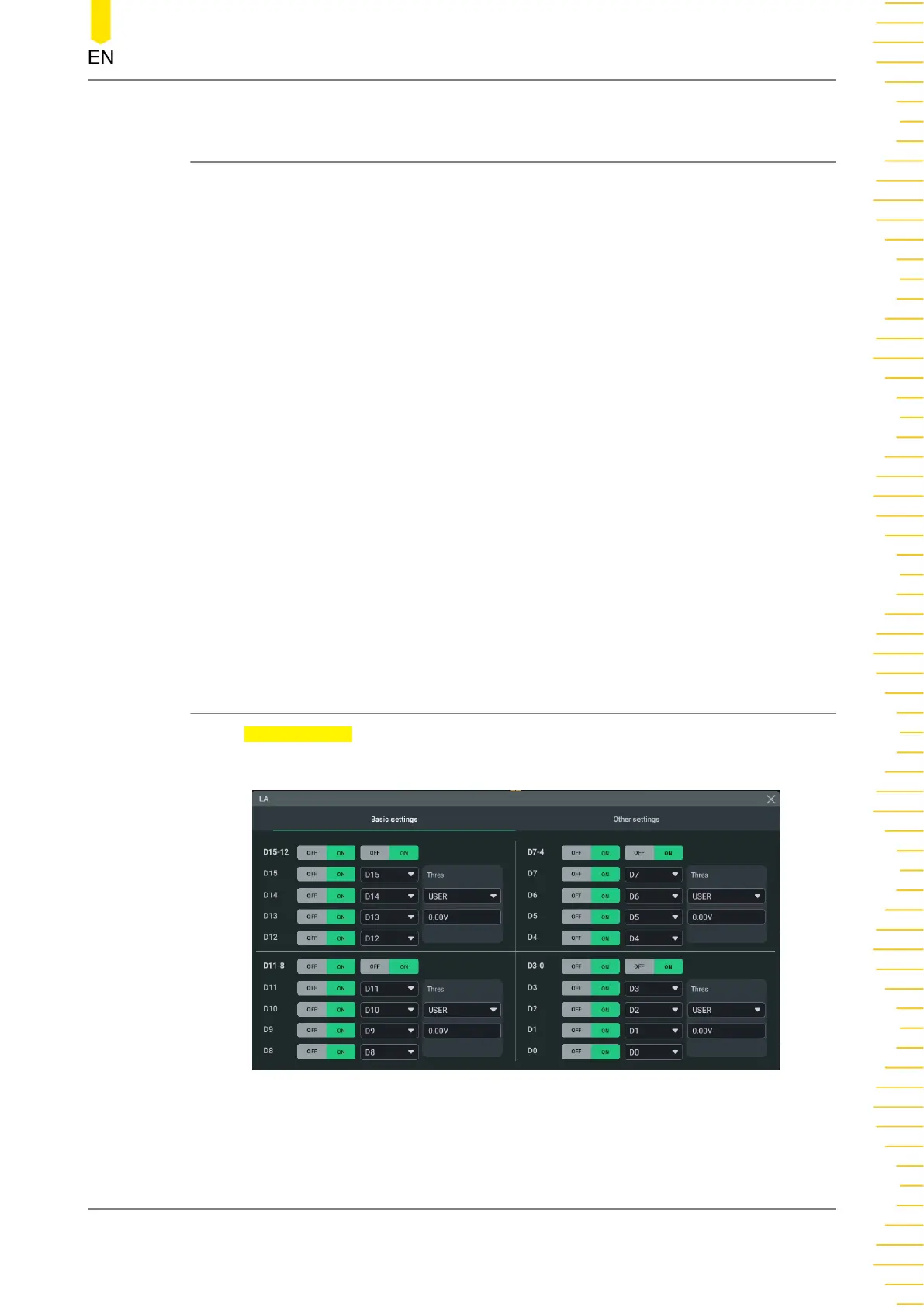

Figure 12.1 Basic Settings Tab of Logic Analyzer Interface
Digital Channel
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
173
