waveforms in a multiple periods. The measurement results are displayed at the
right side of the screen under the "Result" list.
• Click or tap the third icon, and then "rise time" measurement item is enabled. Its
measurement results are displayed at the right side of the screen under the
"Result" list. By default, it is intended for the fast edge signal.
• Click or tap the fourth icon, and then "fall time" measurement item is enabled.
Its measurement results are displayed at the right side of the screen under the
"Result" list. By default, it is intended for the fast edge signal.
• Click or tap the fifth icon to cancel the auto setting and recovers to the
parameter settings prior to pressing the
Auto key.
• Click or tap the sixth icon to enter the Auto Config sub-menu under the Utility
menu. For details on how to operate this menu, please refer to
Auto Config
.
TIP
The waveform auto setting function requires that the frequency of the signal should be greater
than or equal to 35 Hz, the amplitude greater than or equal to 10 mV. If not meeting the
conditions, the waveform auto setting function may be invalid.
10.7 Cursor Measurements
Cursor measurement can measure the X axis values (e.g. Time) and Y axis values (e.g.
Voltage) of the selected waveform. Before making cursor measurements, connect the
signal to the oscilloscope to acquire stable display. The cursor measurement function
provides the following two cursors.

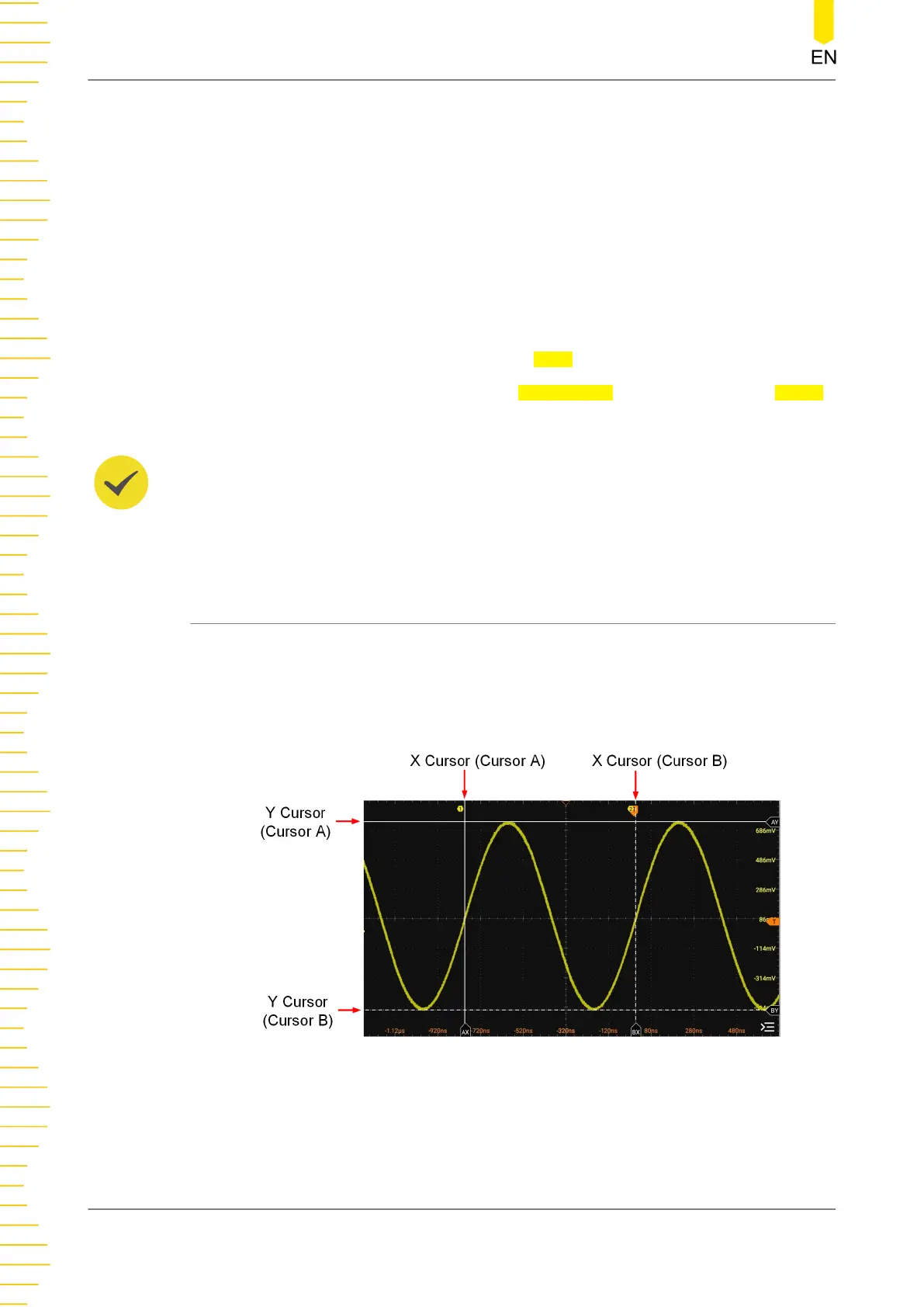

Figure 10.6 Cursors
• X Cursor
X cursor is a vertical solid/dotted line that is used to make horizontal
adjustments. It can be used to measure time (s) and frequency (Hz).
Measurements
MHO2000 User Guide
158
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
