• Horizontal: Period, Frequency, Rise Time, Fall Time, +Width, -Width, +Duty, -
Duty, Positive Pulse Count, Negative Pulse Count, Rising Edge Count, Falling
Edge Count, Tvmax, Tvmin, +Slew Rate, and -Slew Rate.
• Other: Delay (r-r), Delay (r-f), Delay (f-r), Delay (f-f), Phase (r-r), Phase (r-f),
Phase(f-r), and Phase (f-f).
After selecting the specified measurement item, you can view the measurement
results of the specified measurement item in the result list. You can click or tap the
measurement results of the specified item, then its sub-menus are displayed. You can
perform relevant settings, such as setting the measurement parameters and removing
the measurement results.
10.3 Measurement Settings
To enter the measurement setting menu, perform either of the following operations:
• In the Measure menu, click or tap the Setting button to enter the measurement
setting menu.
• Click or tap any measurement item shown in the result list. Then the sub-menu is
displayed. Click or tap Setting to enter the measurement setting menu.

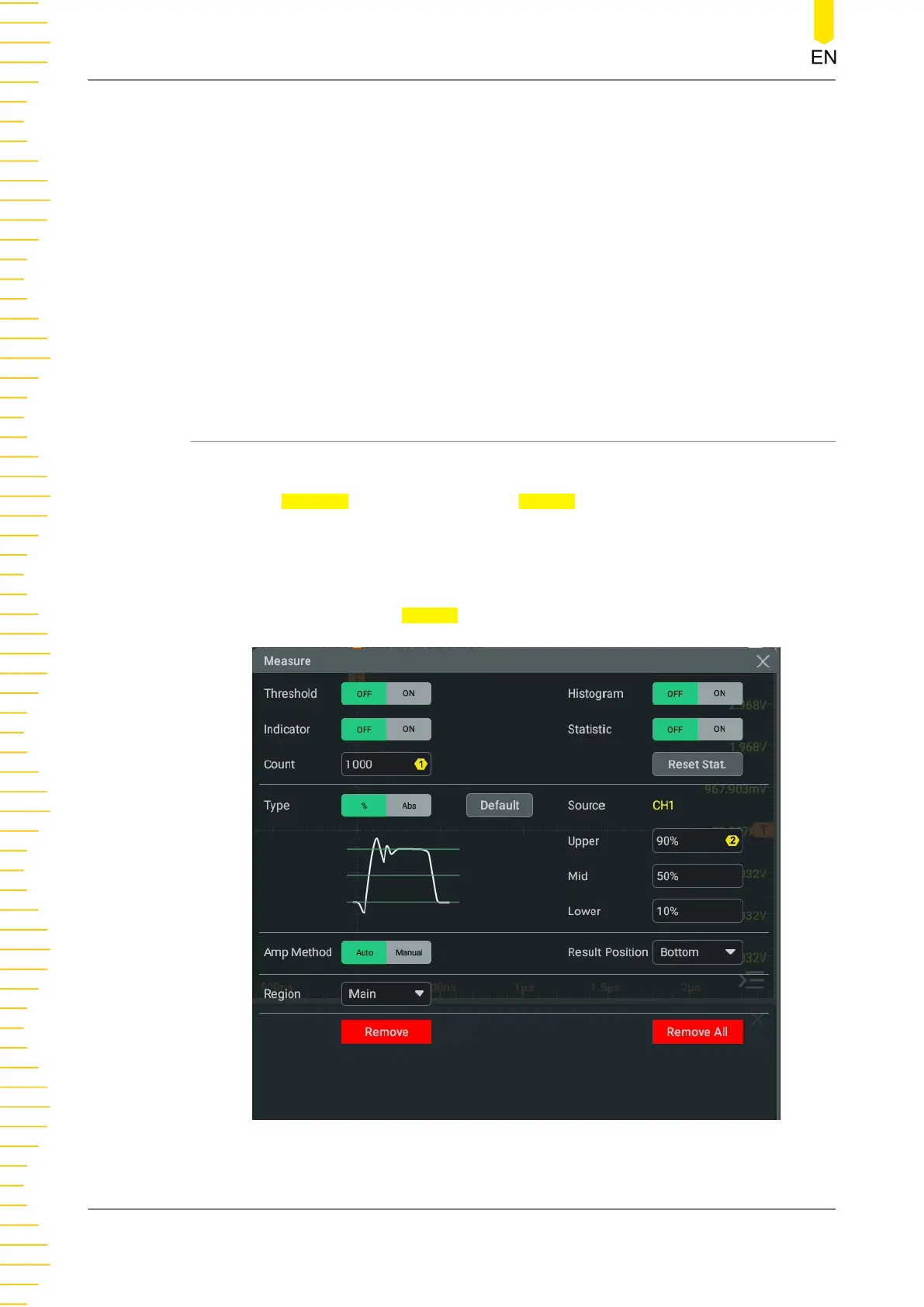

Figure 10.4 Measurement Settings Menu
Measurements
MHO2000 User Guide
152
