• +Duty: indicates the ratio of the positive pulse width to the period.
• -Duty: indicates the ratio of the negative pulse width to the period.
• Tvmax: indicates the time that corresponds to the maximum value of the
waveform (Vmax).
• Tvmin: indicates the time that corresponds to the minimum value of the
waveform (Vmin).
The default values for threshold upper limit, threshold middle value, and threshold
lower limit are 90%, 50%, and 10%, respectively.
10.1.2 Count Values
The default values for threshold upper limit and threshold lower limit are 90% and
10%, respectively.

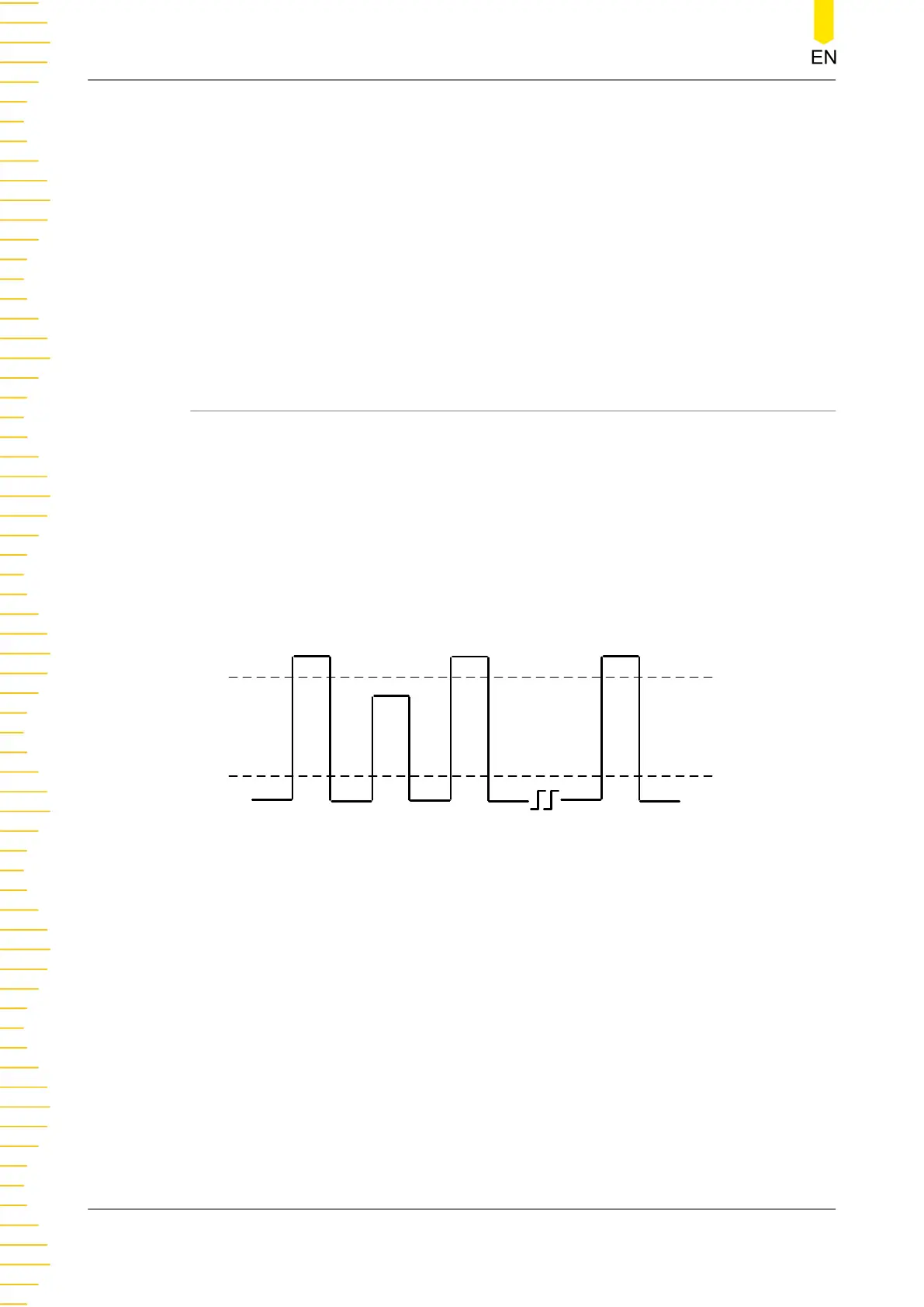

Positive Pulse Count
It is specified as the number of positive pulses that rise from under the threshold
lower limit to above the threshold upper limit.
Positive Pulse Count = n
1 n2
Threshold
Upper Limit
Threshold
Lower Limit
Negative Pulse Count
It is specified as the number of negative pulses that fall from above the threshold
upper limit to below the threshold lower limit.
Measurements
MHO2000 User Guide
146
