10
Measurements
This series oscilloscope provides the quick measurements after "Auto" is selected,
auto measurements for 41 waveform parameters, as well as the cursor measurement
function.
10.1 Measurement Parameter
This oscilloscope supports the measurement of 41 waveform parameters, including
time parameters, count values, delay and phase parameters, voltage parameters and
other parameters.
10.1.1 Time Parameters
Threshold
Middle Value
Threshold
Upper Limit
Rise Time Fall Time
+Width
- Width
Period
Threshold
Lower Limit

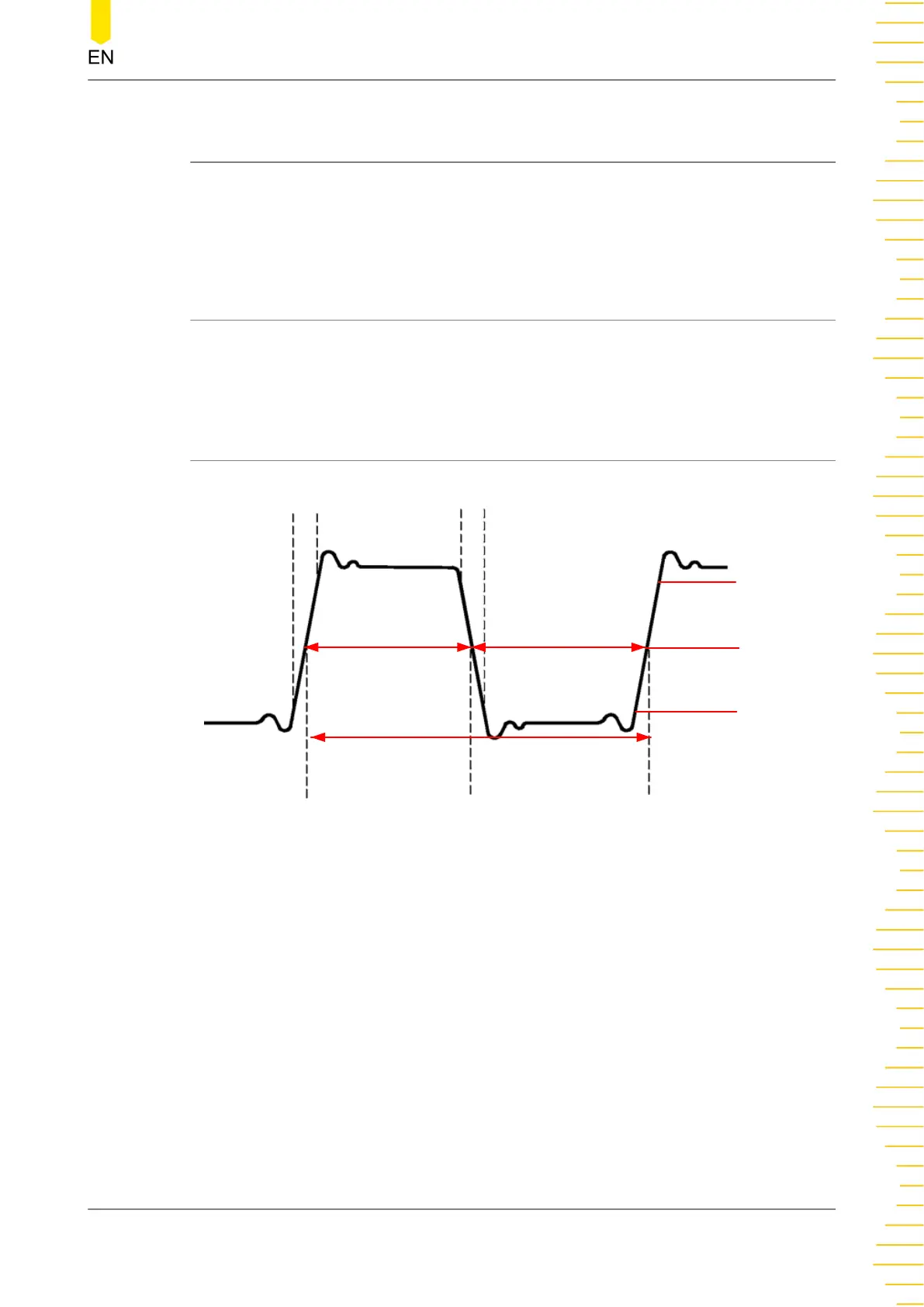

Figure 10.1 Time Parameters
• Period: defined as the time between the middle threshold points of two
consecutive, like-polarity edges.
• Frequency: defined as the reciprocal of period.
• Rise Time: indicates the time for the signal amplitude to rise from the threshold
lower limit to the threshold upper limit.
• Fall Time: indicates the time for the signal amplitude to rise from the threshold
upper limit to the threshold lower limit.
• +Width: indicates the time between the threshold middle value of a rising edge
to the threshold middle value of the next falling edge.
• -Width: indicates the time between the threshold middle value of a falling edge
to the threshold middle value of the next rising edge.
Measurements
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
145
