Users can drag the title bar of the display window to change the position of the
window. You can also click/tap the close button at the upper-right corner of the
window to close it.
9.1 Arithmetic Operation
In the Math menu, click or tap the drop-down button of Operator to select the
desired math operation. The arithmetic operations supported by this oscilloscope
include A+B, A-B, A×B, and A÷B.
• A+B: adds the waveform voltage values of signal source A and B point by point
and displays the results.
• A-B: subtracts the waveform voltage values of signal source B from that of
source A point by point and displays the results.
• A×B: multiplies the waveform voltage values of signal source A and B point by
point and displays the results.
• A÷B: divides the waveform voltage values of signal source A by that of source B
point by point and displays the results. It can be used to analyze the Multiple
relation of the two channels waveforms.
For the arithmetic operation menu, refer to
Figure 9.1
.

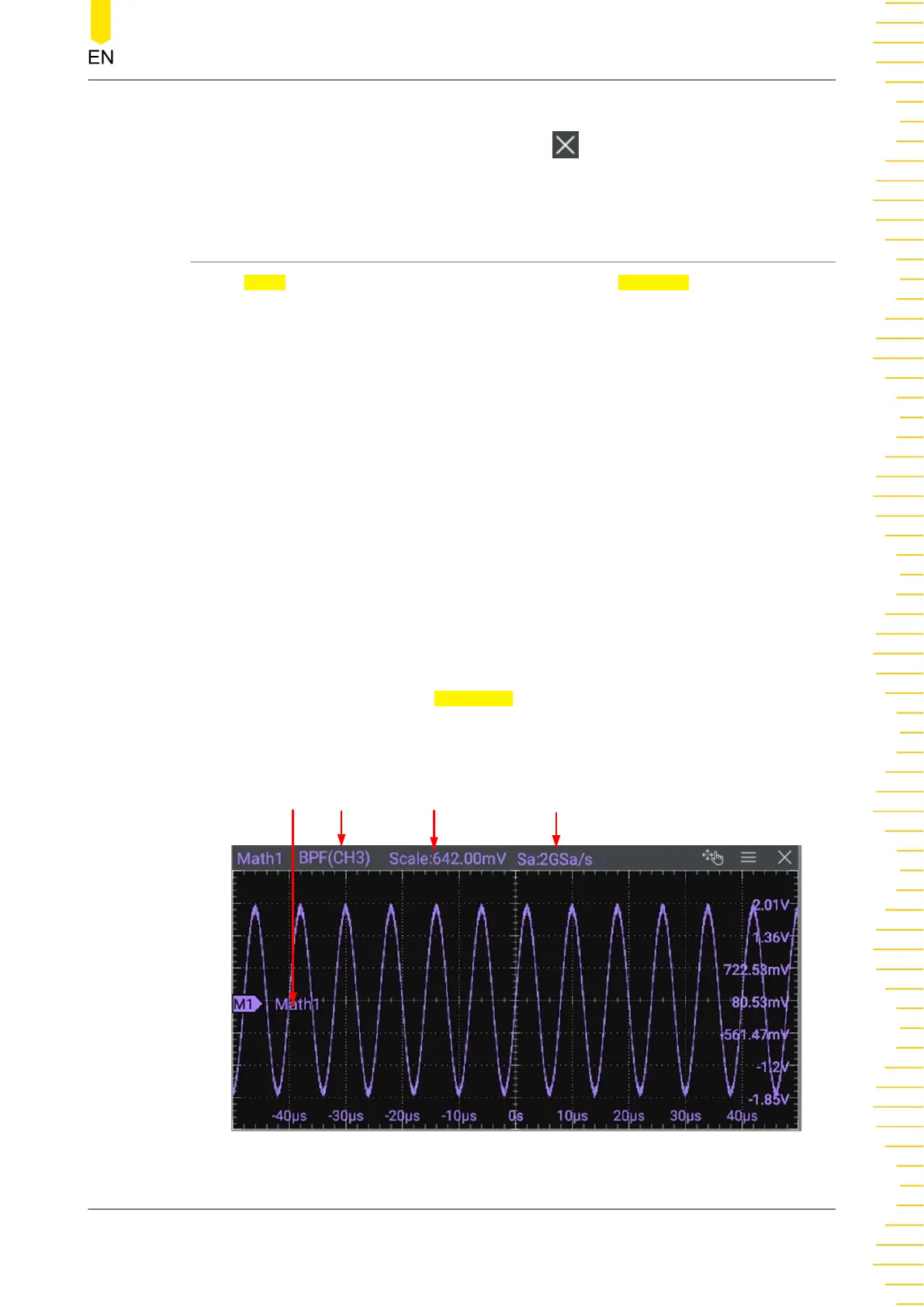

Arithmetic Operation Result Display Window
Click or tap the ON/OFF tab for Operation to enable or disable the display of the
arithmetic operation result window. The source and the vertical scale parameters are
displayed at the top of the window, as shown in the figure below.
Source
Vertical Scale
Label
Sample Rate
Figure 9.3 Arithmetic Operation Result Display Window
Math Operation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
131
