8.7.16 CAN Trigger
This series oscilloscope can trigger on the start of a frame, end of a frame, frame of
the specified type (e.g. Remote, Overload, Data, etc.), or error frame of the specified
type (e.g. Answer Error, Check Error, Format Error, etc.) of the CAN signal.

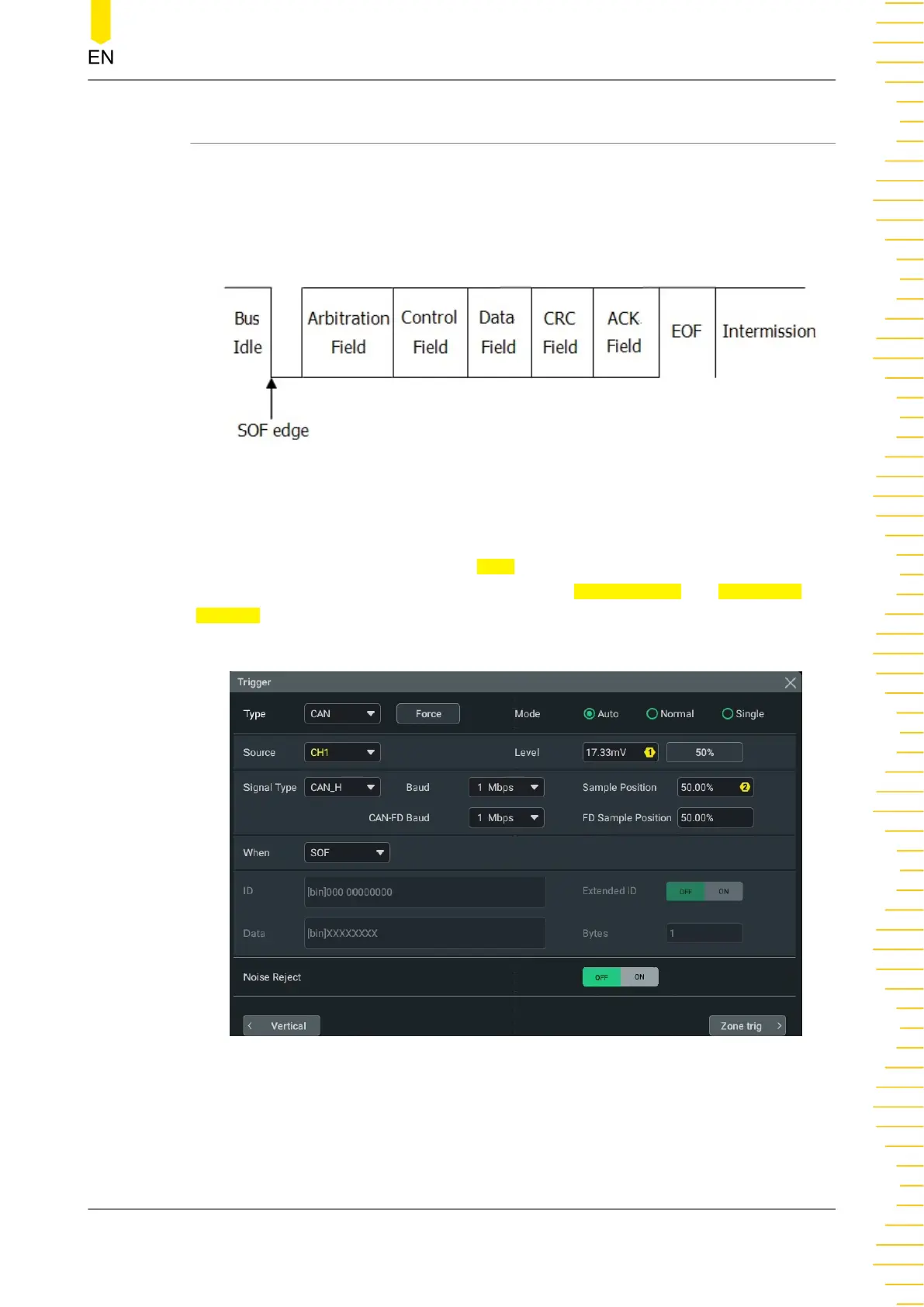

The data frame format of the CAN bus is as shown in the figure below.
Figure 8.32 Data Frame Format of the CAN Bus
Trigger Type
Click or tap the drop-down button of Type to select "CAN" from the drop-down list.
Then set the parameters for CAN trigger. Wherein,
CAN-FD Baud and FD Sample
Position are available when you have installed the MHO2000-AUTOA option. The
CAN-FD Baud is the baud rate of the CAN-FD trigger.
Figure 8.33 CAN Trigger Setting Menu
After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) is displayed in the trigger
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
111
