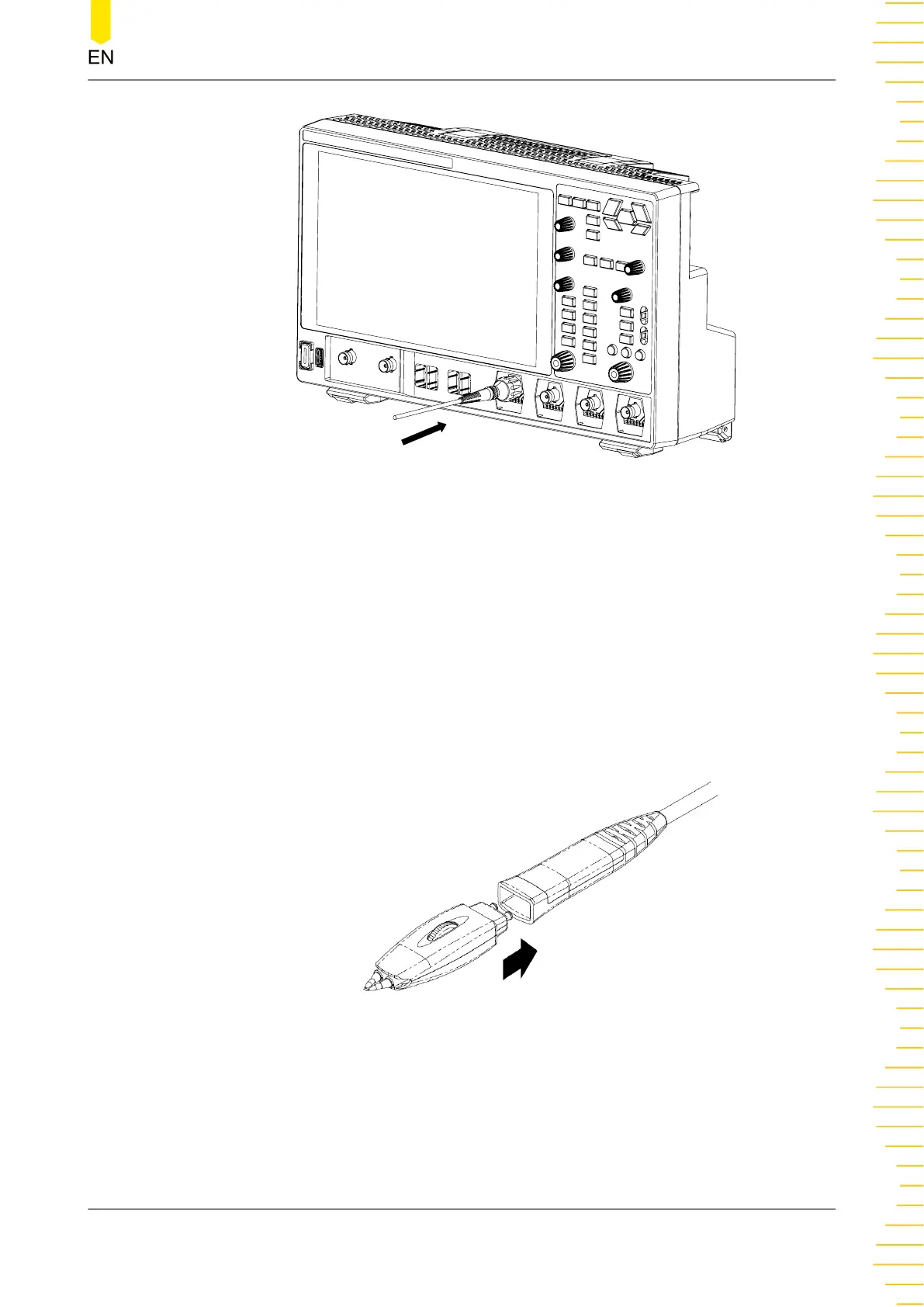

Figure 4.8 Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed procedures,
refer to
Function Inspection
and
Probe Compensation
.
Connect the Active Probe
Take PVA7250 (active differential probe) as an example.
1. Connect the probe head to the preamp of the active probe, as shown in the figure
below.
Figure 4.9 Connect the Probe Head to the Preamp of the Active Probe
2. Connect the other end of the preamp to an analog channel input terminal of the
oscilloscope on the front panel, as shown in the figure below. Note that you need
to push the probe to the due position to lock it firmly.
Quick Start
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
17
