RIGOL
M300 Quick Guide
22

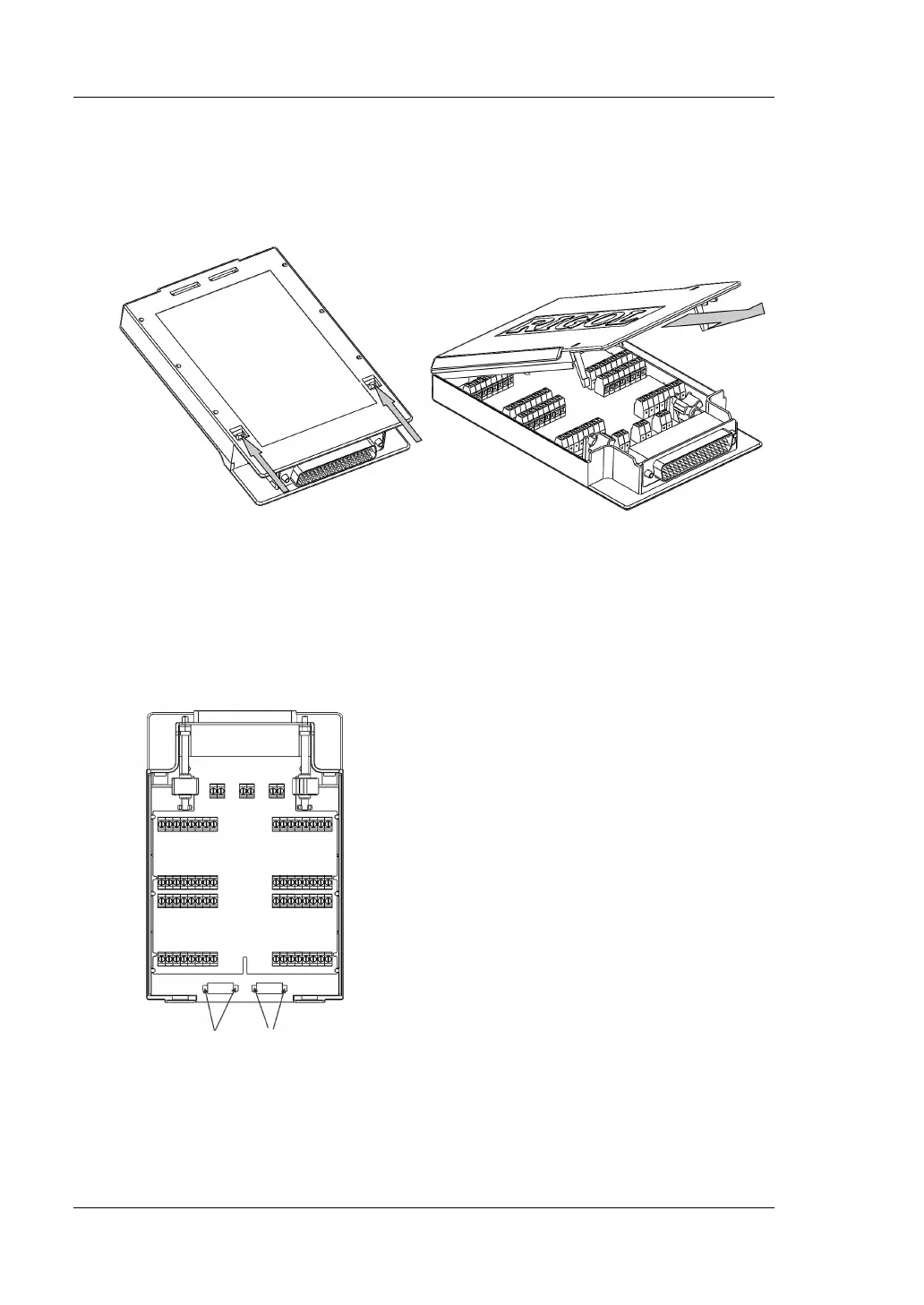

1 Place the terminal block with the front (with the RIGOL caption) facing
downward and pull the two latches in the arrow direction in the figure below and
press them down. Place the terminal block with the front facing upward and pull
the upper cover of the terminal block upward and remove it.
2 Connect the cables for connecting the signal under test according to the labels
on the circuit board of the terminal block (for the connecting method, refer to
Table 2). Pass the binding wires through the two groups of holes as pointed out
by the arrows in the figure below to fix the cable connected. Pay attention to the
channel or terminal connected to the cable to ensure that the signal connected
is correct.
Note:
For the connection method of each module and the corresponding terminal
block as well as the specification requirements of the connecting cable,
please log in RIGOL official website (www.rigol.com) get more related
