RIGOL
M300 Quick Guide
8

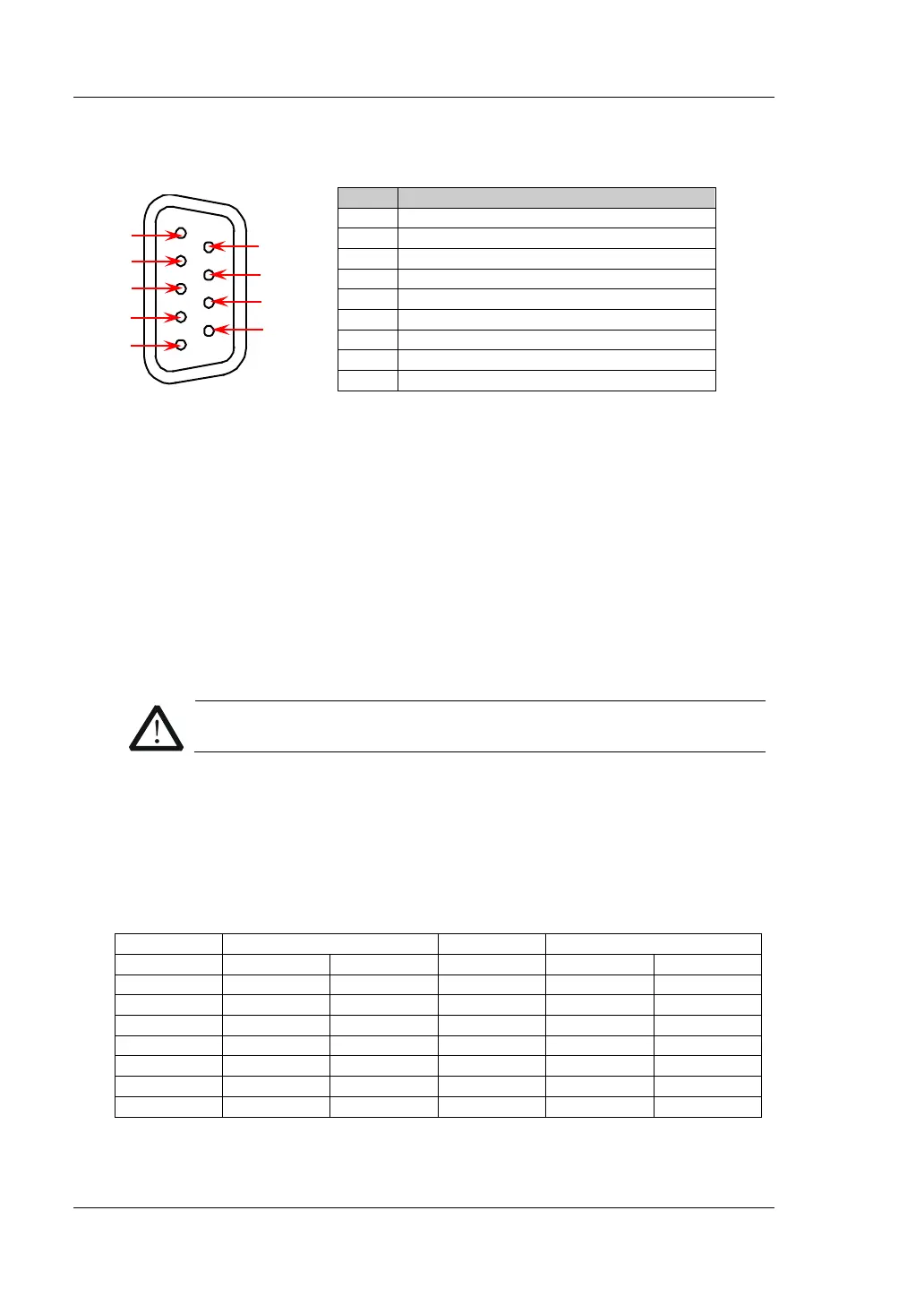

interface is a 9-pin female interface.
Analog Bus Interface
5 DMM Module Power Fuse
The AC power supply input from the power socket is divided into two paths with
one for the DMM module and the other for the other circuits. M300 is equipped
with the DMM module power fuse (AC 250V T250 mA). To replace the fuse, refer
to the method below.
1) Turn off the instrument and remove the power cord.
2) Press down the fuse cover using a straight screw driver and rotate the
straight screw driver clockwise.
3) Select a proper voltage through the voltage selector.
4) Disassemble the fuse cap and fuse.
5) Replace a specified fuse and install the fuse cap.
CAUTION
Please use the specified fuse to avoid electric shock or fire.
6 Voltage Selector
M300 supports two kinds of AC voltages (115 V and 230 V). Please select the
proper voltage scale according to the AC power used.
7 RS-232/Alarms/Ext Trig Mix Interface (Male)
This is a 15-pin male interface.
Pin
Function
Pin
Function
1
Alarm1
Output
9
PC_RX
Output
2
Alarm2
Output
10
PC_DSR
Output
3
Alarm3
Output
11
GND
——
4
Alarm4
Output
12
PC_DTR
Input
5
CH Close
Output
13
PC_CTS
Output
6
Trig
Input
14
PC_RTS
Input
7
GND
——
15
NC
——
8
PC_TX
Input
——
——
——
6
7
4
5
2
3
1
8
9
Pin
Definition
1
Current Input
2
Lo
3
LoSense
4
--
5
--
6
Hi
7
HiSense
8
Float GND
9
--
