918 Roll Groover
999-998-946.10_REV D
10
installed separately as done on the 300 Compact/1233
machines (see that section)
If using with a 535 Auto Chuck Threading Machine, set
the machine up so that the chuck jaws grip the pipe
during REV rotation of the machine, as detailed in the
Left Hand Threading section of the 535 Threading
Machine Operator’s Manual.
1. Confirm that the 918 is properly assembled on the
correct base for the machine it will be used with.
Securely attach the drive bar to the driveshaft.
2. Position machine carriage towards front chuck and
swing carriage mounted tools up away from the
operator. Position reamer inside the die head to
secure and reduce risk of contact.
3. Fully open front chuck of threading machine.
4. With the end of the drive bar in the machine chuck,
place the open slot of the base (stabilizer side) over
the rear carriage rail and lower the pump to the front
carriage rail. See Figure 9.

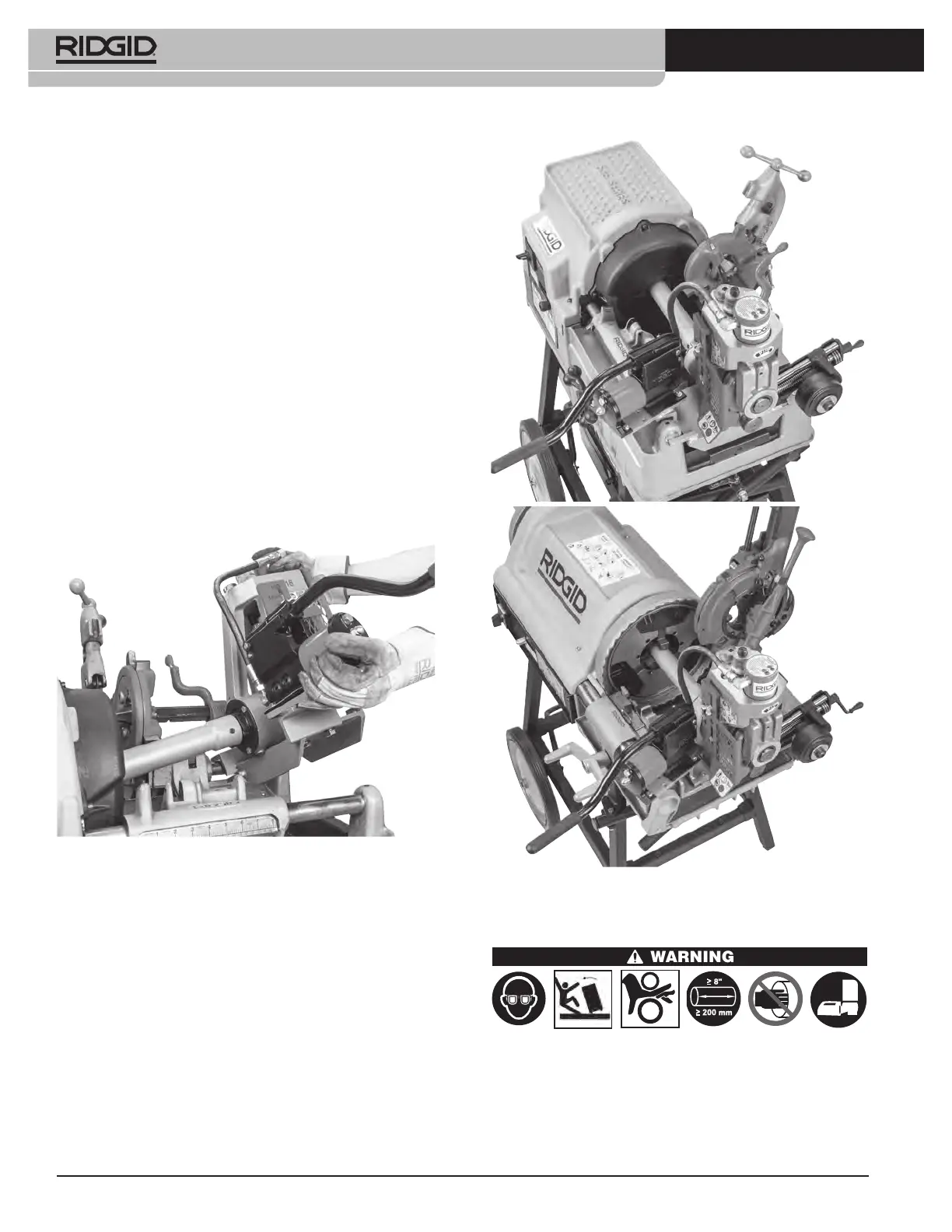

Figure 9 – 918 Roll Groover on 535 Threading Machine
Mounting Base
5. With the 918 positioned at the end of the threading
machine securely tighten the machine front chuck on
the drive bar. See Figure 10.
Figure 10 – 918 installed on 535A and 1224
Operation
WARNING
Keep hands away from grooving rolls. Do not
wear loose tting gloves. Fingers can be crushed
between groove rolls, groove roll and pipe or
between pipe and stabilizer wheel.
Keep hands away from ends of pipe. Do not reach
inside pipe. Do not touch groove while operating.
Burrs and sharp edges can catch and cut. Fingers
10
