INSTALLATION
22
INSTALLATION WITHIN A COVERED AREA
The water heater must be located such that the installation meets the requirements of AS/NZS 5601.1. There
must be sufficient ventilation so the water heater has an adequate supply of combustion air and the flue
products are readily dispersed safely. It is the licensed installer’s responsibility to ensure the installation
complies with the relevant sections of the Gas Installations Standard.
Installation of this continuous flow gas water heater is permitted within a partially or fully covered area or recess
that:
(a) is not a balcony and is open on at least two sides, if its flue terminal is located to ensure a free flow of air
across it is achieved, or
(b) is not a balcony and is open on one side only, if the flue terminal extends beyond either an external corner
or the covered area and discharges toward the open side to ensure that combustion products discharge
to open atmosphere, or
(c) is a balcony and regardless of the number of open sides, the flue extends beyond either an external corner
or any covered area and discharges toward an open side to ensure that combustion products discharge
to open atmosphere.
Additional clearances to openings into the building or obstructions also apply, refer to AS/NZS 5601.1
Clause 6.9.3.
A Rheem 874 or 876 series A12NF, A16NF or A26NF model fitted with a Rheem Flue Terminal Diverter (kit
number 299336) in accordance with its installation instructions, can be installed to meet the requirements of
points (b) and (c).

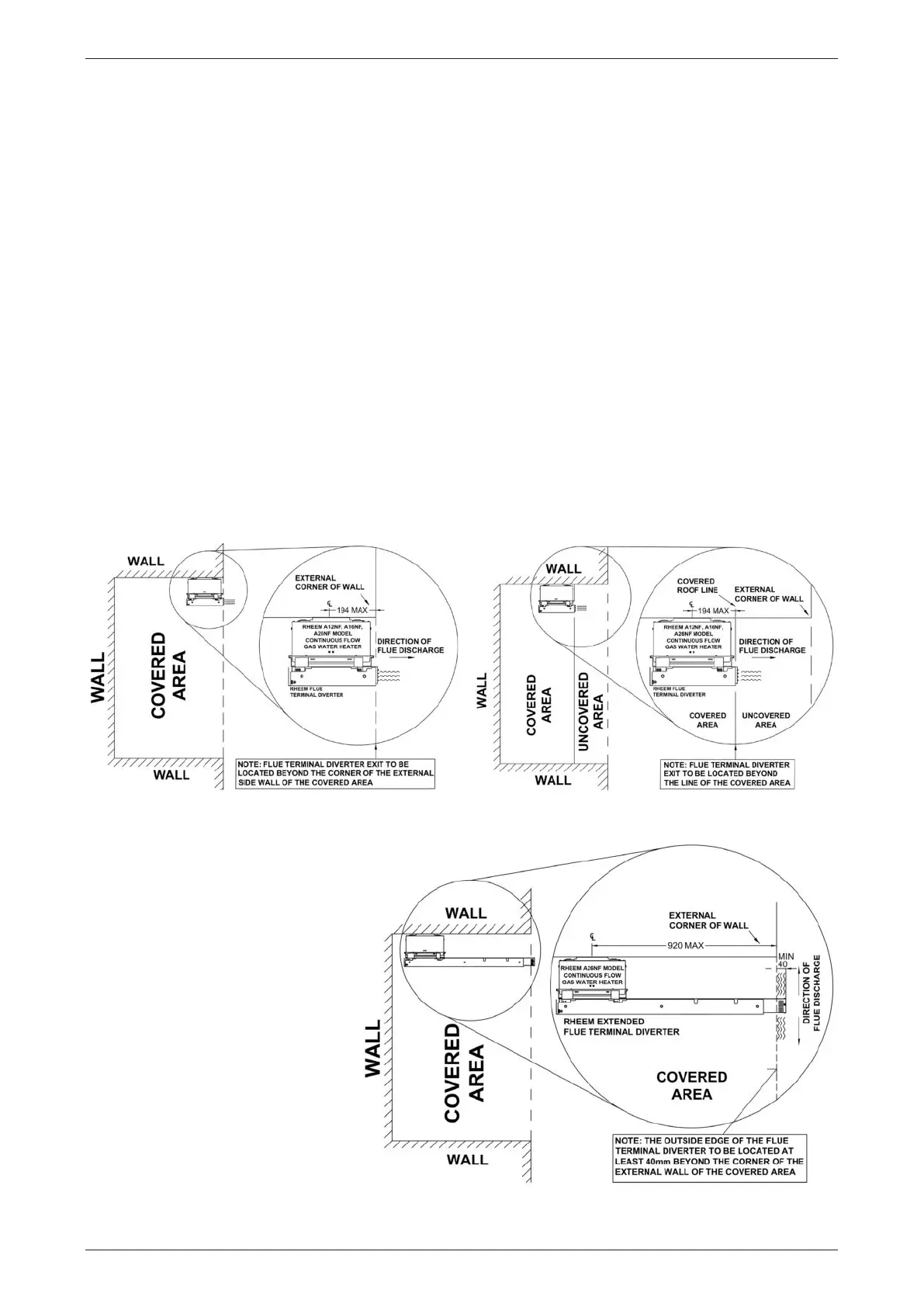

A12NF, A16NF or A26NF models – with a Flue Terminal Diverter – installed in compliance with AS/NZS 5601.1
A Rheem 874 or 876 series
A26NF model fitted with a Rheem
Extended Flue Terminal Diverter (kit
number 299334) in accordance with
its installation instructions, can be
installed to meet the requirements of
points (b) and (c), if positioned so the
outside edge of the Flue Terminal
Diverter extends at least 40 mm
beyond the external corner of the
covered area.
A Rheem Flue Terminal Diverter or
Extended Flue Terminal Diverter can
be fitted to these water heaters if
installed in a recess box. Refer to
“Recess Installation” on page 23.
A26NF models – with an Extended Flue Terminal Diverter
installed in compliance with AS/NZS 5601.1
