MSP 405 User Manual
16
recovery, supports loop output, no delay.

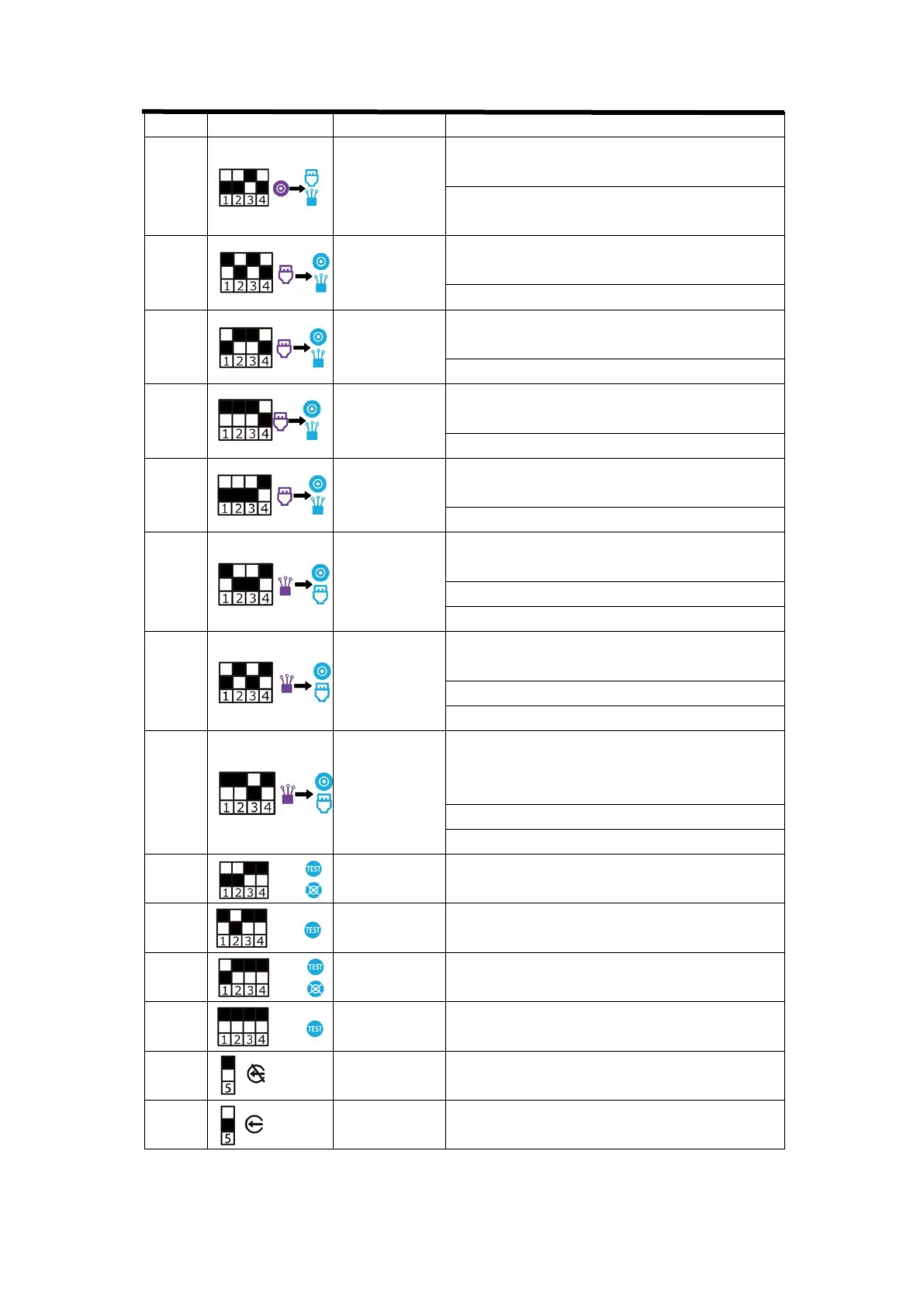

Mode 4
SDI→HDMI+OPT
1. Converts SDI signal to HDMI output, with format
conversion, output resolution of 3840x2160P@60Hz.
2. Converts SDI signal to optical output, with clock
recovery, supports loop output, no delay.
Mode 5
HDMI→SDI+OPT
1. Converts HDMI signal to HD-SDI output, with format
conversion, output resolution of 1920x1080P@30Hz.
2. Synchronizes optical signal with SDI output.
Mode 6
HDMI→SDI+OPT
1. Converts HDMI signal to 3G-SDI output, with format
conversion, output resolution of 1920x1080P@60Hz.
2. Synchronizes optical signal with SDI output.
Mode 7
HDMI→SDI+OPT
1. Converts HDMI signal to 6G-SDI output, with format
conversion, output resolution of 3840x2160P@30Hz.
2. Synchronizes optical signal with SDI output.
Mode 8
HDMI→SDI+OPT
1. Converts HDMI signal to 12G-SDI output, with format
conversion, output resolution of 3840x2160P@60Hz.
2. Synchronizes optical signal with SDI output.
Mode 9
OPT→SDI+HDMI
+OPT
1. Converts optical signal to SDI output, with clock
recovery, supports loop output, no delay.
2. Synchronizes HDMI output.
3. Synchronizes optical signal with SDI output.
Mode
10
OPT→SDI+HDMI
+OPT
1. Converts optical signal to 3G-SDI output, with format
conversion, output resolution of 1920x1080P@60Hz.
2. Synchronizes HDMI with SDI output.
3. Synchronizes optical signal with SDI output.
Mode
11
OPT→SDI+HDMI
+OPT
1. Converts optical signal to 12G-SDI output, with
format conversion, output resolution of
3840x2160P@60Hz.
2. Synchronizes HDMI with SDI output.
3. Synchronizes optical signal with SDI output.
Mode
12
Test Pattern_2K
Outputs 2K test pattern, with HDMI output at
1920x1080P@60Hz.
Mode
13
Test Pattern _2K
Outputs 2K test pattern, with HDMI, optical, and SDI
outputs all at 1920x1080P@60Hz.
Mode
14
Test Pattern _4K
Outputs 4K test pattern, with HDMI output at
3840x2160P@60Hz.
Mode
15
Test Pattern _4K
Outputs 4K test pattern, with HDMI, optical, and SDI
outputs all at 3840x2160P@60Hz.
/
AUDIO
Uses the embedded audio from the video signal for the
video output.
/
AUDIO
Uses the audio from the analog audio input port for the
video output.
