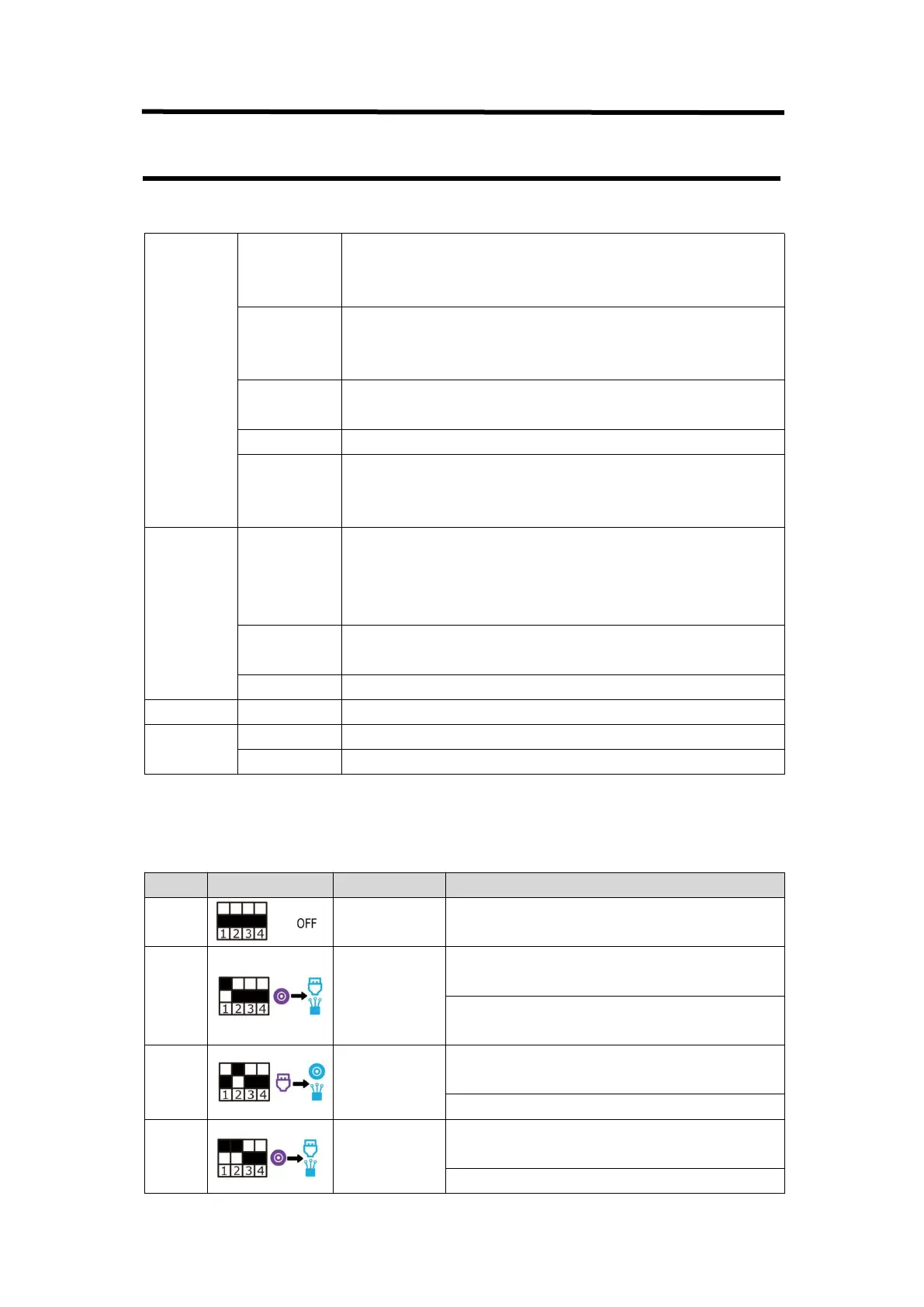

MSP 405 User Manual
15
Chapter 5 Appendix
5.1 Specification
Interface
Input
HDMI
1×HDMI-A
SDI
1×BNC
Fiber
1×LC
Output
HDMI
1×HDMI-A
SDI
1×BNC
Fiber
1×LC
Audio
Line In
1×3.5mm Audio Socket
Line Out
1×3.5mm Audio Socket
Power
Power
1×USB Type-C Power Jack
Control
LAN
1×RJ45
Reset
1×IP Reset Button
Switch
1×DIP Switch
Performance
Resolution
HDMI/SDI
/Fiber
720p@50/59.94/60
1080i@50/59.94/60
1080p@25/29.97/30/50/59.94/60
2160p@25/29.97/30/50/59.94/60
Supported
HDMI
2.0b
Standards
SDI/Fiber
HD/3G/6G/12G-SDI
Fan
1×built-in fan (speed auto adjusted)
Power
Input Voltage
USB Type-C 12V/1.5A
Physical
Net Weight
500g
Net Dimension
147.9mm × 98.4mm × 41.9mm
5.2 DIP Switch Description
Mode
Position
Function
Description
Mode 0
Power Off
Entire device/system powered off.
Mode 1
SDI→HDMI+OPT
1. Converts SDI signal to HDMI output, supports RGB
format, no delay.
2. Converts SDI signal to optical output, with clock
recovery, supports loop output, no delay.
Mode 2
HDMI→SDI+OPT
1. Converts HDMI signal to SDI output, supports YCbCr
4:2:2 format, no delay.
2. Synchronizes optical signal with SDI output.
Mode 3
SDI→HDMI+OPT
1. Converts SDI signal to HDMI output, with format
conversion, output resolution of 1920x1080P@60Hz.
2. Converts SDI signal to optical output, with clock
