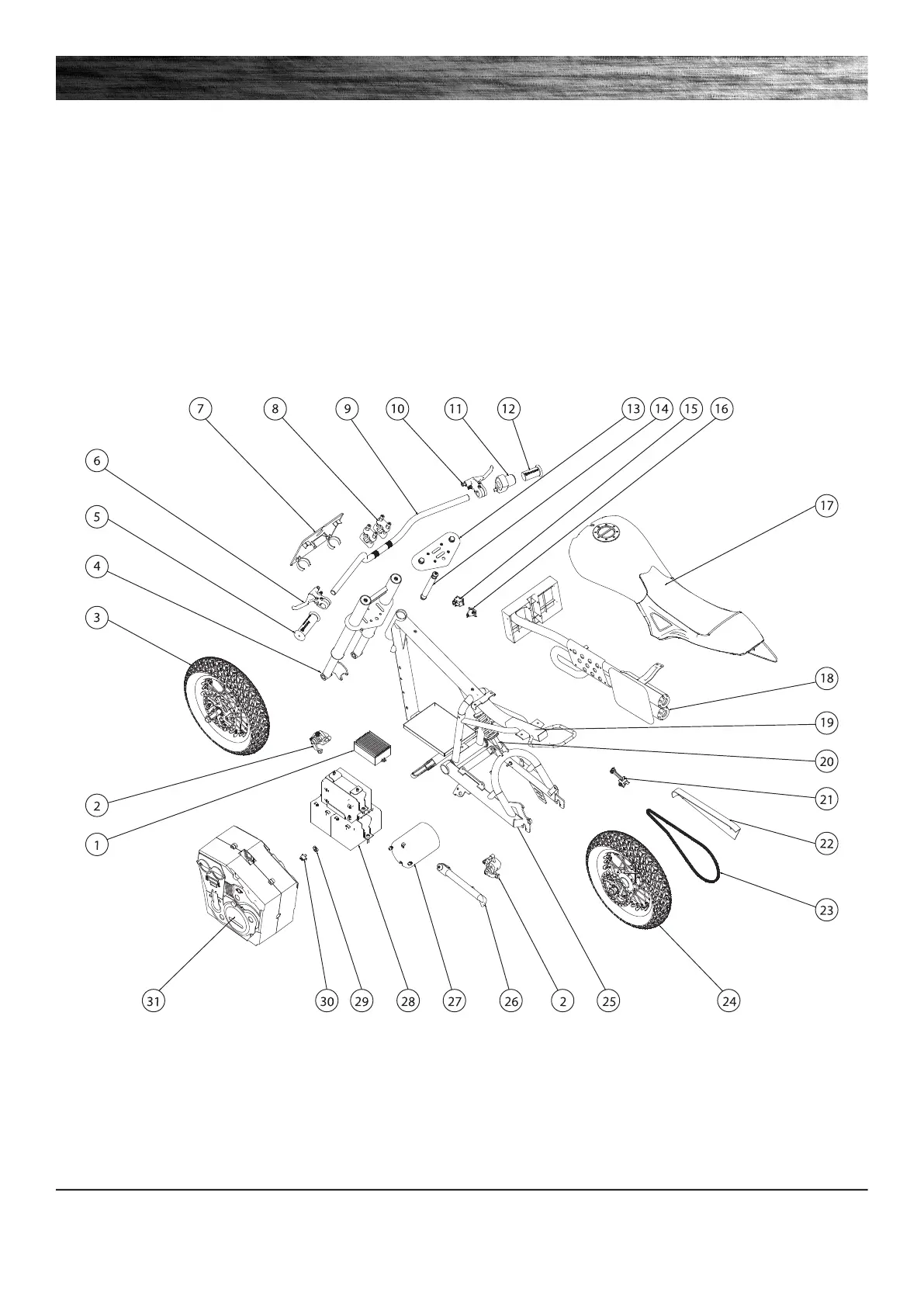

PRODUCT PARTS
Need Help? Visit our website for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer
Service contact information is listed at the back of this manual.
13
1. Control Module
2. Caliper Brake (Front and Rear)
3. Front Wheel Complete
4. Fork
5. Left Handlebar Grip
6. Left Brake Lever Assembly
7. Front Number Plate
8. Handlebar Clamps (x2)
9. Handlebar
10. Right Brake Lever Assembly
11. Throttle
12. Right Handlebar Grip
13. Crown Plate
14. Steering Bolt
15. ON/OFF Switch
16. Charger Port
17. Seat
18. Exhaust
19. Frame
20. Shock Absorber
21. Chain Tensioner
22. Chain Guard
23. Chain
24. Rear Wheel Complete
25. Swing Arm
26. Kickstand
27. Motor
28. Battery (3-12V/12 Ah)
29. Speed Control Switch Cover
30. Speed Control Switch
31. Battery Cover (Right/Left)
Keep your electric motor bike running for years with genuine Razor parts. Visit our website for more information on spare part availability.
(Illustrations may not reflect exact appearance of actual product. Specifications subject to change without notice.)
