RaySafe X2 – VOLT
Caution! Connection of the RaySafe X2 Volt directly to test points on generators shall only be
done by personnel authorized in calibration and repair of X-ray equipment. The user may be ex-
posed to electrical hazards if the equipment is damaged or improperly connected, or if the input
voltage to the Volt sensor is more than the specified maximum of ± 16 V.
Tip! Tap a parameter to get large digits, parameter information, and, if applicable, waveform.
Switch between these by swiping sideways.
VOLT SENSOR: SPECIFICATIONS
Dimensions: 17 × 23 × 93 mm
(0.7 × 0.9 × 3.7 in)
Weight: 55 g (1.9 oz)
Input terminal: BNC connector
Input voltage: ±16 V
Input impedance: 1 MΩ
Storage temperature: -25 – +70
°
C (-13 – +158
°
F)
Storage humidity: Non-condensing
Operating temperature: 15 – 35
°
C (59 – 95
°
F)
Operating atmospheric
pressure:
55 – 110 kPa (5000 m above sea level)
Operating humidity: < 80 % relative humidity, non-condensing
VOLT SENSOR: MEASUREMENT PARAMETER DEFINITIONS
Voltage is calculated as an average of all samples from the first time the signal reaches 50 % of
peak until the last time it drops below 50 %.
Time starts the first time the signal reaches 50 % of peak, and ends the last time it drops below
50 %. Live readings are time since start trig.
mA and kV are calculated from voltage using the selected conversion factor.
mAs is calculated as mA × time. Live readings are based on all samples since start trig.
Live readings of voltage, mA and kV are averages from the last second.

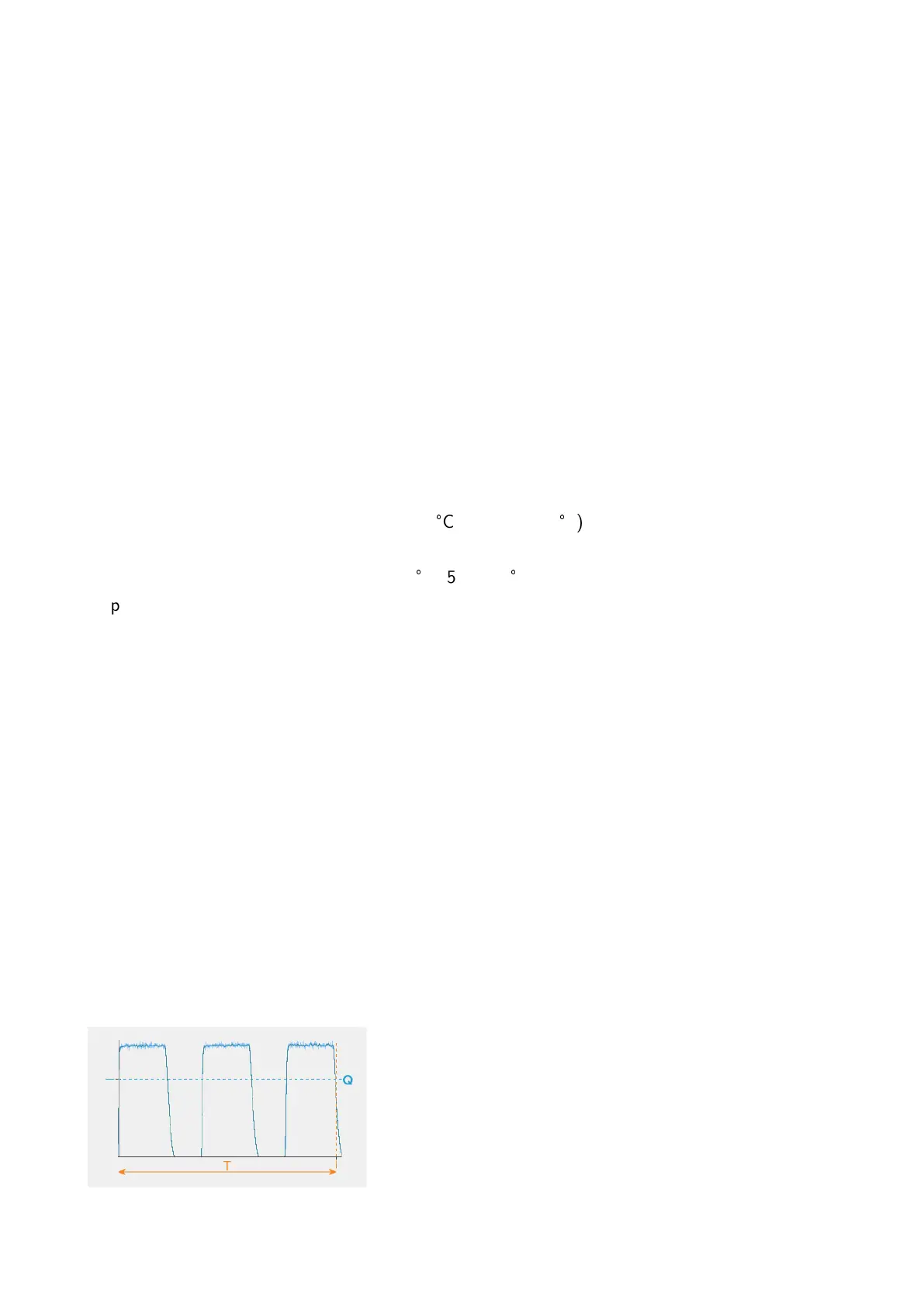

Parameters in waveform
T: Time
44
