INSTALLATION

Check the appliance is electrically safe and gas sound when you have nished.

ArtNo.350-0011 - Fitting the plinth 2 (Kitchener)

Outer plinth

Outer plinth xing screw

Inner plinth

ArtNo.350-0010 - Fitting the plinth 1 (Kitchener)

Final Fitting

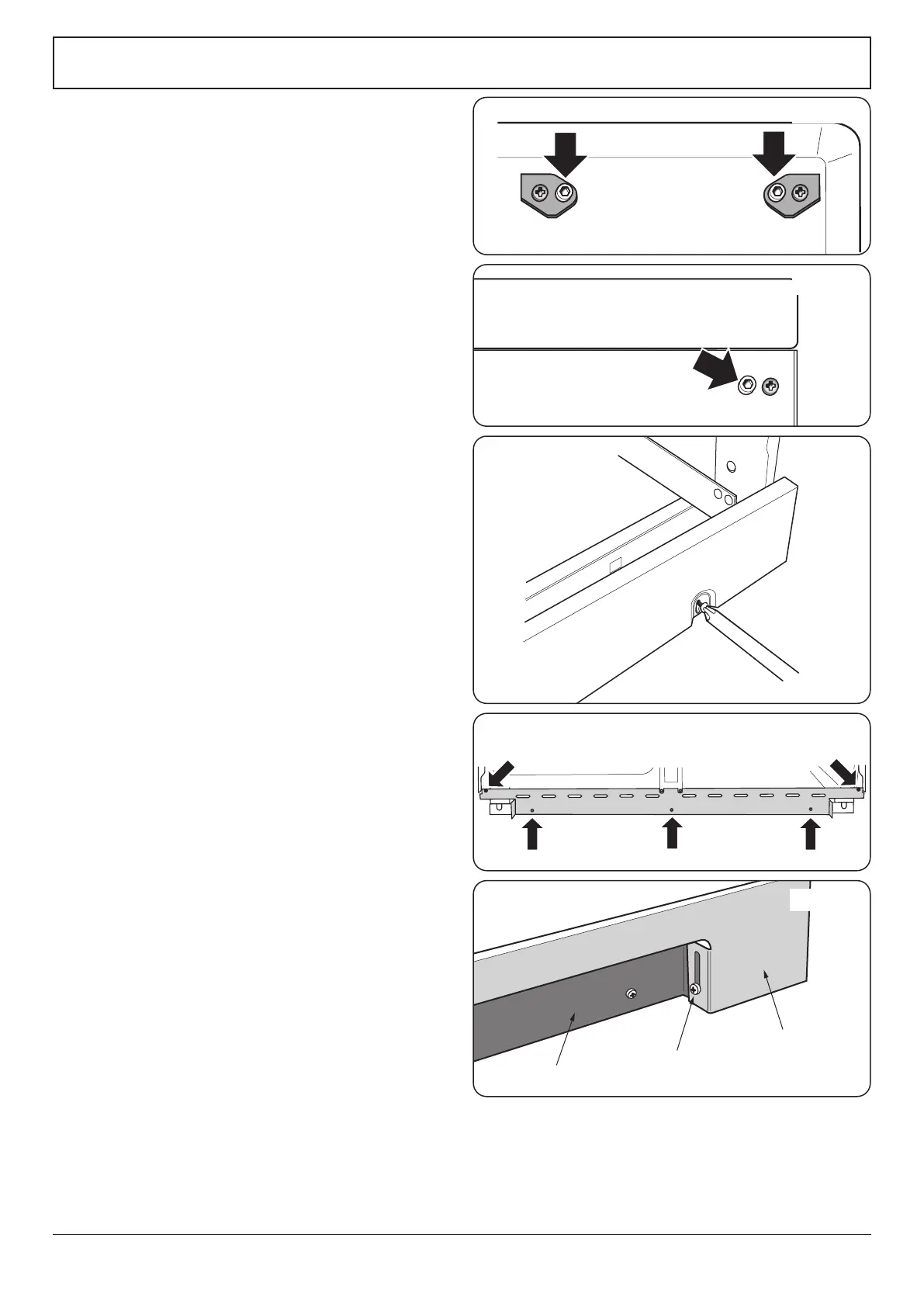

Fitting the Handles and Handrail (Classic)

Remove the 4 mm Allen screws from the doors (Fig. 10.15).

Fit the door handles and secure using the 4 mm screws.

n

The handles should be above the xings.

Remove the 4 mm Allen screws from the top corners of the

fascia (Fig. 10.16). Fit the front handrail in position and

secure using the 4 mm screws.

Fitting the 1-piece Plinth (Professional+)

Loosen the three screws along the front bottom edge of the

cooker. Hook the central keyhole over the central screw. Twist

and t each end keyhole over their respective screws. Tighten

the xing screws (Fig. 10.17).

Fitting the 2-piece Plinth (Classic & Kitchener)

Fit the inner plinth to the bottom front of the cooker using

the 4 or 5 screws provided (Fig. 10.18).

Fit the outer plinth (2 screws, 1 each end) to the inner plinth.

The height of the outer plinth can be adjusted by sliding it up

or down via the slotted hole (Fig. 10.19).

Fitting the Splashback (Classic)

Position the splashback on the rear of the hotplate and secure

with the screws supplied.

Final Checks

Hotplate Check

Check each burner in turn (refer to the ‘Hotplate Burners’

section at the front of the instructions).

Grill Check

Turn on the grill and check that the grill heats up.

Oven Check

Set the clock as described earlier in the instructions, and then

turn on the ovens. Check that the that the oven burners light

and start to heat up.

Note: The oven light bulb is not included in the guarantee.

Turn o the ovens.

Customer Care

Installer: Please complete your details in this guide, inform

the user how to operate the cooker and hand over the

instructions.

Thank you.

ArtNo.215-0026 - Handle gaskets fixed

Art No 215-0028 - Handrail fascia fixings

Fig. 10.15

Fig. 10.16

Fig. 10.17

Fig. 10.18

Fig. 10.19
