INSTALLATION

Check the appliance is electrically safe and gas sound when you have nished.

Flexible hose

PipeworkPipework

Flexible hose

Pipework

Flexible hose

Pipework

Levelling

You are recommended to use a spirit level on a shelf in one of

the ovens to check for level.

Place the cooker in its intended position taking care not to

twist it within the gap between the kitchen units as damage

may occur to the cooker or the units.

The front feet and rear rollers can be adjusted to level the

cooker.

To adjust the height of the rear of the cooker use the levelling

tool supplied to turn the adjusting nuts at the front bottom

corners of the cooker. To set the front turn the feet bases to

raise or lower.

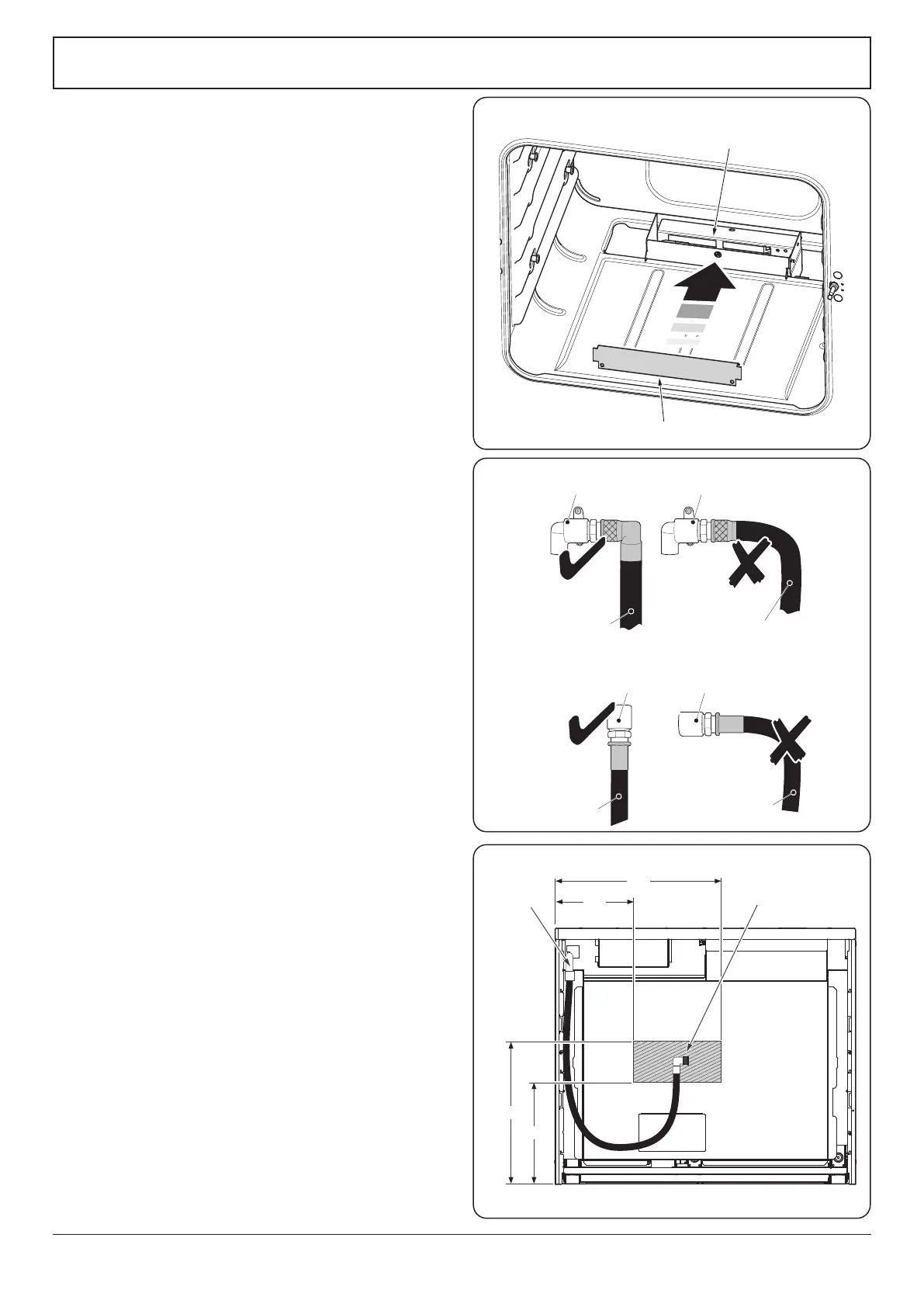

Fitting the Oven Burner Trim

The oven burner has an enamel burner trim. To t the trim,

simply hook it over the front of the oven burner bracket (Fig.

10.11). Make sure tha the burner trim is central to the oven

burner bracket.

Gas Connection

This must be in accordance with the relevant standards.

The exible hose (not supplied with the cooker) must be

in accordance with the relevant standards. Hoses may be

purchased at most builders’ merchants.

The connector is located just below the hotplate level at the

rear of the cooker. If in doubt contact your supplier.

The rear cover boxes limit the position of the supply point.

Because the height of the cooker can be adjusted and

each connection is dierent, it is dicult to give precise

dimensions.

Although a 900 mm hose can be used, a 1250 mm (maximum)

hose will allow slightly more exibility in the positioning of

the bayonet and make moving the cooker easier.

The hose should be tted so that both inlet and outlet

connections are vertical so that the hose hangs downwards in

a ‘U’ shape.

Ideally the hose supply connection should be within the

shaded area ‘A’ (Fig. 10.13).

For Natural Gas, the exible hose must be in accordance with

BS 669. For LP Gas, it should be capable of 50 mbar pressure

and a 70 °C temperature rise. If in doubt contact, your

supplier. Screw connect the threaded end of the hose into the

gas inlet.

After completing the gas connection, make sure that the

cooker is gas sound with a pressure test.

470

350

675

315

All dimensions in millimetres

Gas inlet

Oven burner trim

Oven burner bracket

Fig. 10.11

Fig. 10.12

Fig. 10.13
