INSTALLATION

Check the appliance is electrically safe and gas sound when you have nished.

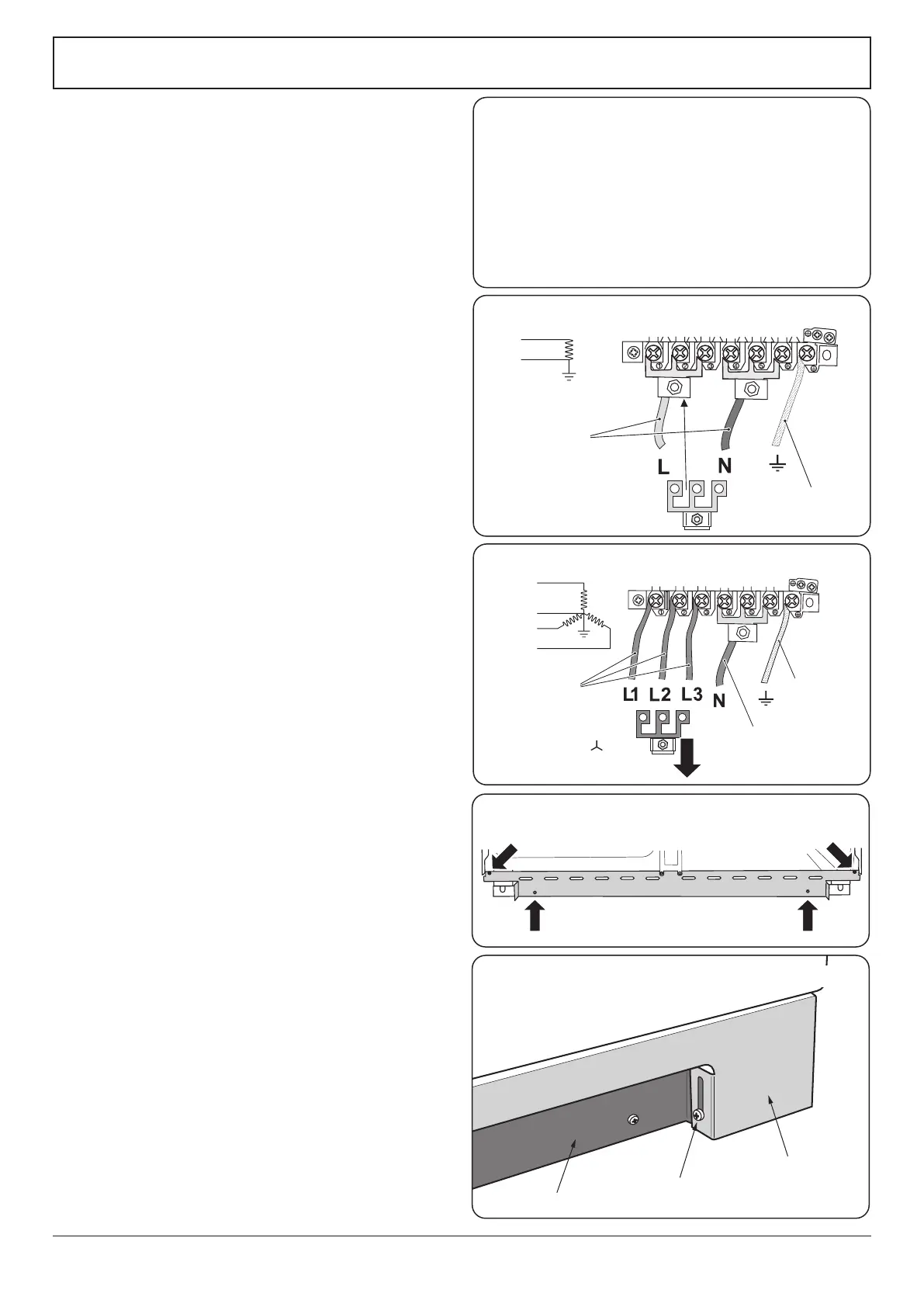

ArtNo.130-0010 Electrical connections single-phase

230 V ac 50 Hz

10 mm² max

6 mm² max

Current Operated Earth Leakage Breakers

The combined use of your induction cooker and other

domestic appliances may cause nuisance tripping, so we

recommend that the cooker is protected on an individual

RCD (Residual Current Device) or RCBO (Residual Current

Breaker with Overload).

IF IN DOUBT, PLEASE CONSULT A SUITABLY QUALIFIED

ELECTRICIAN.

Electrical Connection

The cooker must be installed by a qualied electrician, in

accordance with all relevant British Standards/Codes of

Practice (in particular BS 7671), or with the relevant national

and local regulations.

n

WARNING: THE APPLIANCE MUST BE EARTHED.

Note: The cooker must be connected to the correct electrical

supply as stated on the voltage label on the cooker, through

a suitable cooker control unit incorporating a double-pole

switch, having a contact separation of at least 3 mm in all

poles.

n

The cooker MUST NOT be connected to an ordinary

domestic power point.

Access to the mains terminal is gained by removing the

electrical terminal cover box on the back panel. Connect

the mains cable to the correct terminals for your electrical

supply type (Fig. 9.14 and Fig. 9.15). Check that the links are

correctly tted and that the terminal screws are tight. Secure

the mains cable using the cable clamp.

Final Checks

Hob Check

Check each cooking zone in turn. Be sure to use pans of the

correct size and material.

Grill Check

Turn on the grill control and check that the grill heats up.

Oven Check

Set the clock as described earlier, and then turn on the ovens.

Check the oven fans start to turn and that the ovens heat up.

Final Fitting

Fitting the 2-piece Plinth

Fit the inner plinth to the bottom front of the cooker using

the 4 screws provided (Fig. 9.16).

Fit the outer plinth (2 screws, 1 each end) to the inner plinth.

The height of the outer plinth can be adjusted by sliding it up

or down via the slotted hole (Fig. 9.17).

Customer Care

Installer: Please complete your details in this guide, inform

the user how to operate the cooker and hand over the

instructions.

Thank you.

3N ac

230/400 V 50 Hz

6 mm² max

10 mm² max

6 mm² max

Fig. 9.14

Fig. 9.15

ArtNo.350-0010 - Fitting the plinth 1 (Kitchener)

ArtNo.350-0011 - Fitting the plinth 2 (Kitchener)

Outer plinth

Outer plinth xing screw

Inner plinth

Fig. 9.16

Fig. 9.17
