True to the Music

Radial Engineering

Phazerbank

™

Tip = Send

Ring = Return

Sleeve = Common

Send

Return

TRS BALANCED

1/4” UNBALANCED

XLR BALANCED LINE LEVEL

15VDC · 400mA

INPUT

OUTPUT

www.radialeng.com

Made in Canada

TUPTUO

TUPNI

GND

PUSH TO

LIFT

XLR BALANCED LINE LEVEL

INPUT

OUTPUT

Larger consoles sometimes employ balanced inserts with separate jacks

(+4dB). These can be with either XLR or TRS Phone jacks.

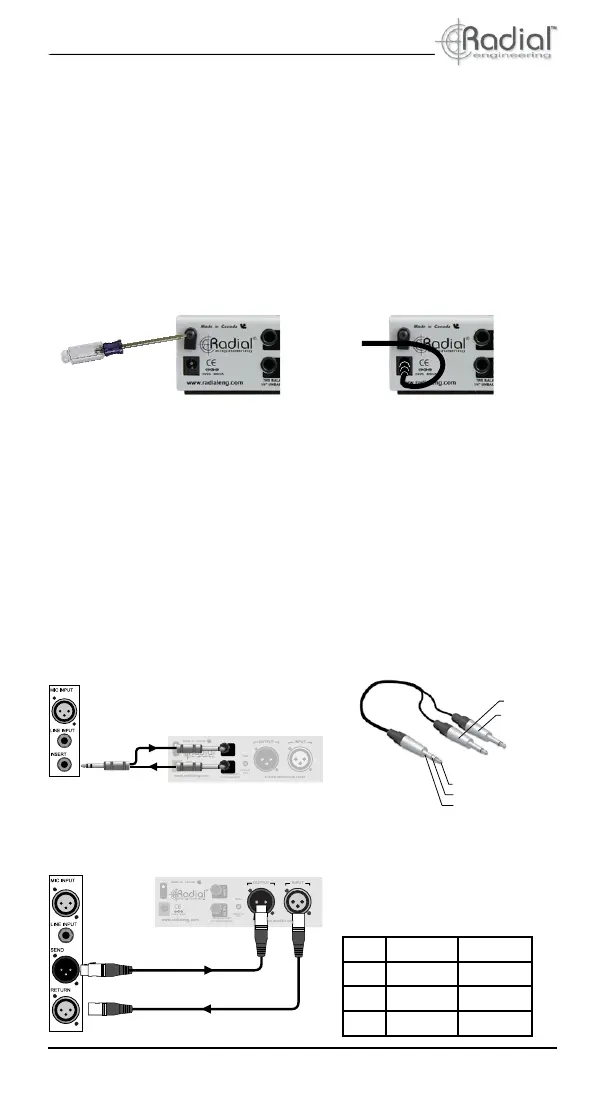

MAKING CONNECTIONS

Before making connections, make sure all levels are turned down in

order to prevent power-on and connection transients from damaging

more sensitive components such as tweeters.

Power: The Phazerbank is powered by the included 15VDC/400mA sup-

ply. Do not substitute with another power supply. If you need a replace-

ment please contact your dealer. The Phazerbanks's power connection

includes a cable lock feature that prevents accidental disconnection.

Once the power is plugged in the Phazerbank is active.

Audio: The Phazerbank is a line-level device that accepts +4dB

balanced and -10dB unbalanced signals at either the XLR or ¼”

phone jacks. Balanced connections use the AES standard (pin-2

hot). There are two basic methods for connecting the Phazerbank.

Console Insert Connection: This is the most common connection. The

Phazer is placed in the signal path using the 'insert' point at the console

(studio patchbay).

Most consoles are equipped with an unbalanced single-point insert

(-10dB) that employs a dual 1/4" to TRS connection as shown here:

XLR TRS Phone

Pin 1 Common Sleeve

Pin 2 Hot (+) Tip

Pin 3 Cold (-) Ring

TRS BALANCED

1/4” UNBALANCED

XLR BALANCED LINE LEVEL

15VDC · 400mA

INPUT

OUTPUT

www.radialeng.com

Made in Canada

TUPTUO

TUPNI

GND

PUSH TO

LIFT

TRS BALANCED

1/4” UNBALANCED

TUPTUO

TUPNI

Use a hex driver to

loosen the cable lock.

Pass the cable through

and re-tighten.
