RolloTube S-line Sun DuoFern Medium

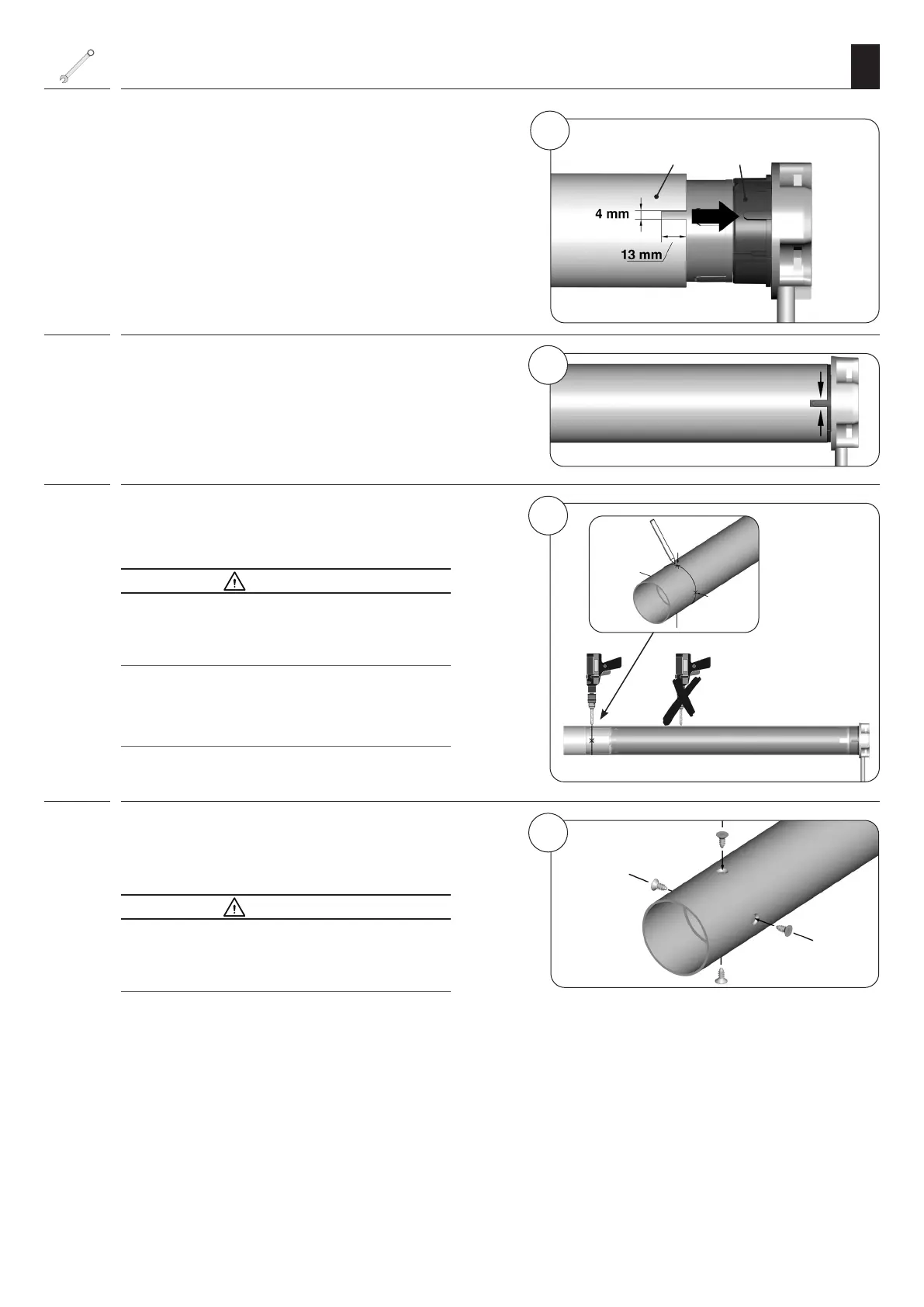

2. Saw a groove in the end of the precision tube 1
in order that the cam of the adapter (8) can
be completely pressed into the tube.
7.6 Preparation for use of the precision tubes
◆ There may not be any play between the
groove 1 and the cam .
3. Slide the tubular motor into the precision tube.
4. Mark the four fastening holes and subsequently drill
them through the precision tube into the catch (10).
ATTENTION!
Drilling too deeply may break the freewheel
mechanism.
◆ Never drill deeper than 10 mm into catch (10).
Drilling in the area of the drive causes serious
damage.
◆ Never drill in the area of the drive (9).
5. Screw or rivet the precision tube to the catch (10).
Use four self-tapping sheet metal screws or four pop
rivets for this.
ATTENTION!
Screws or rivets that are too long interfere with
the freewheel mechanism.
◆ Do not use screws or rivets longer than 10 mm.
