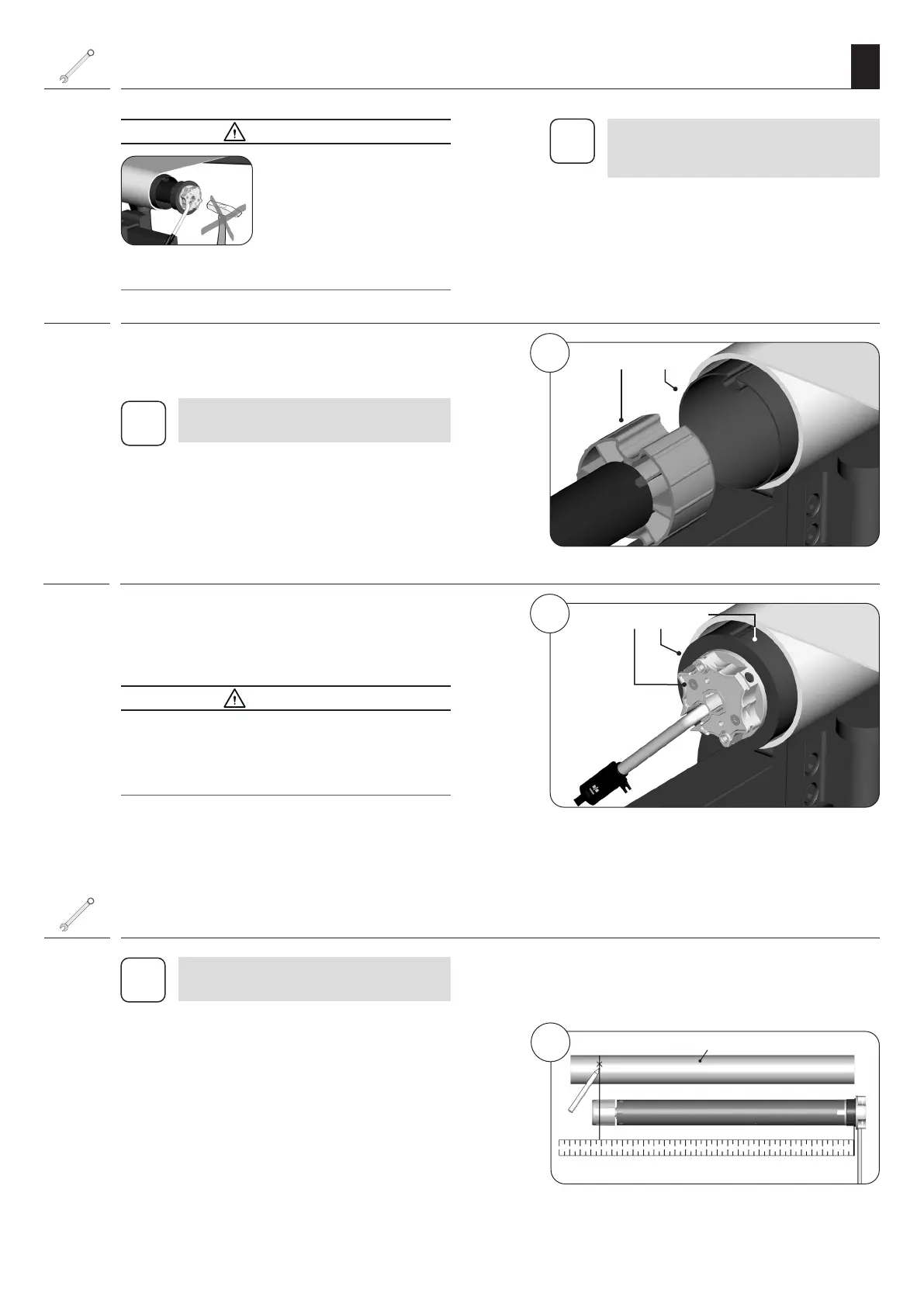

52
EN
9
(10) (11)
(11)(8)(6)
7
8
1. Measure the distance between the adapter (8) and
the rear third of the catch (10) and mark this distance
on the precision tube.
i
Please only use precision tubes
made from aluminium.
ALUMINIUM
7.6 Preparation for use of the precision tubes
7.5 Sliding the tubular motor (9) into the awning shaft (11)
ATTENTION!
Inserting the tubular motor
(9) forcibly into the awning
shaft (11) will cause serious
damage.
◆ Never knock the tubular
motor (9) with force into
the awning shaft (11).
1. First slide the catch (10) into the awning shaft (11).
2. Subsequently press the tubular motor into the
awning shaft (11) so that the adapter (8) is fully
inserted into the awning shaft (11).
ATTENTION!
◆ In doing so, ensure that the adapter (8) does not
slip off the magnetic ring (14) on the drive head
(6) during the assembly process. Otherwise
malfunctions may occur, see page 65.
i
The set button (7) for the tubular motor
must be easily accessible and the motor
cable (13) must be laid without kinking.
i
The motor must have sufficient free
space for awning shafts with internal felt.
