Attero Tech by QSC unHX2D
User Manual
QSC, LLC 2020 614-00038
2 – Device Installation

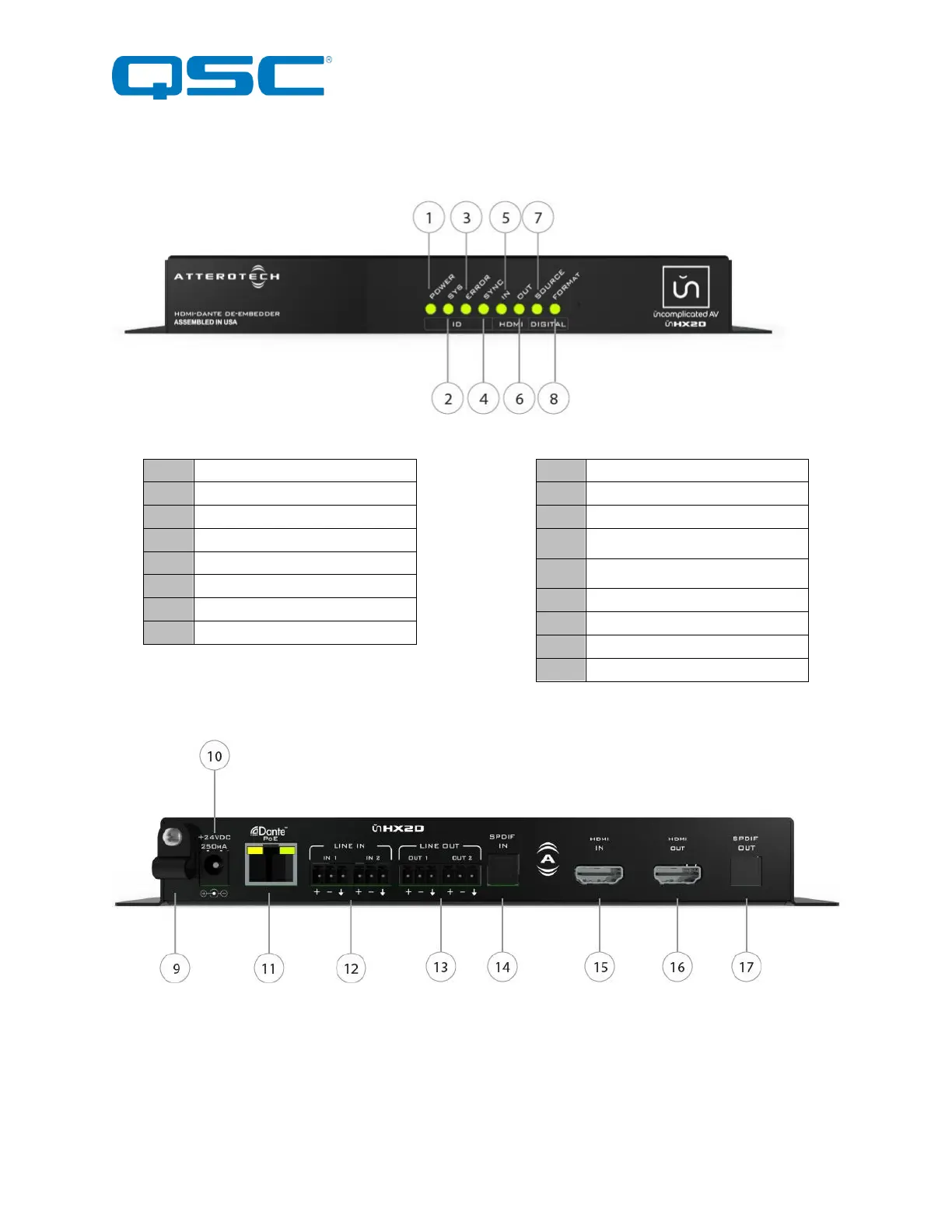

Figure 3 – unHX2D Front Panel
1
Power LED
2
Dante™/AES67 System Status LED
3
Dante™/AES67 Error Status LED
4
Dante™/AES67 Sync Status LED
5
HDMI Input Port Status LED
6
HDMI Output Port Status LED
7
Source Indicator LED
8
Digital Format Indicator LED
Table 1 - Front Panel Features
9
Power Input Strain Relief
10
DC Power Input
11
Dante™/AES67 PoE Port
12
Analog Audio Input – Balanced
Line Level
13
Analog Audio Output – Balanced
Line Level
14
S/PDIF Input (Toslink(
15
HDMI Input
16
HDMI Output
17
S/PDIF Output (Toslink)
Table 2 - Rear Panel Features
Figure 4 – unHX2D Rear Panel
*Note: The unHX2D has a label on the flange and on the base of the unit that shows the device’s MAC address. This is
important for initial device identification as the last six digits make up part of the device’s default network name that is
shown when the device is detected by Dante™ Controller.
