Attero Tech by QSC unHX2D
User Manual
QSC, LLC 2020 614-00038
o Hot Plug Override – Configurable Hot Plug Detect supports typical repeater scenarios but can also be
overridden to allow de-embedding of the HDMI audio source without a connected HDMI sink on the unHX2D
HDMI output.
o HDCP Override – HDCP can be disabled on the input in order to signal source devices, such as Mac computers
to output unencrypted content when used with downstream devices that don’t support HDCP.
*Note: This feature does not strip content protection from HDCP compliant sources.
o Dante™/AES67 Mono Mixdown – The Dante outputs feature a mono mix option that sums the stereo output
channel to a mono mix.
Dante Out 1 = 50% L + 50% R (Mixed from Dante 1 and 2 assigned channels)
Dante Out 2 = 100% R
Dante Out 3 = 50% L + 50% R (Mixed from Dante 1 and 2 assigned channels)
Dante Out 4 = 100% R
Matrix
Mixer
Analog In 1/2
Dante RX 1/2
Dante RX 3/4
HDMI IN
SPDIF IN
Lip
Sync
Delay
Mono
Mixer
Mono
Mixer
Volume
Volume
Volume
Volume
HDMI Out
Dante TX 1/2
Dante TX 3/4
Analog Out 1/2

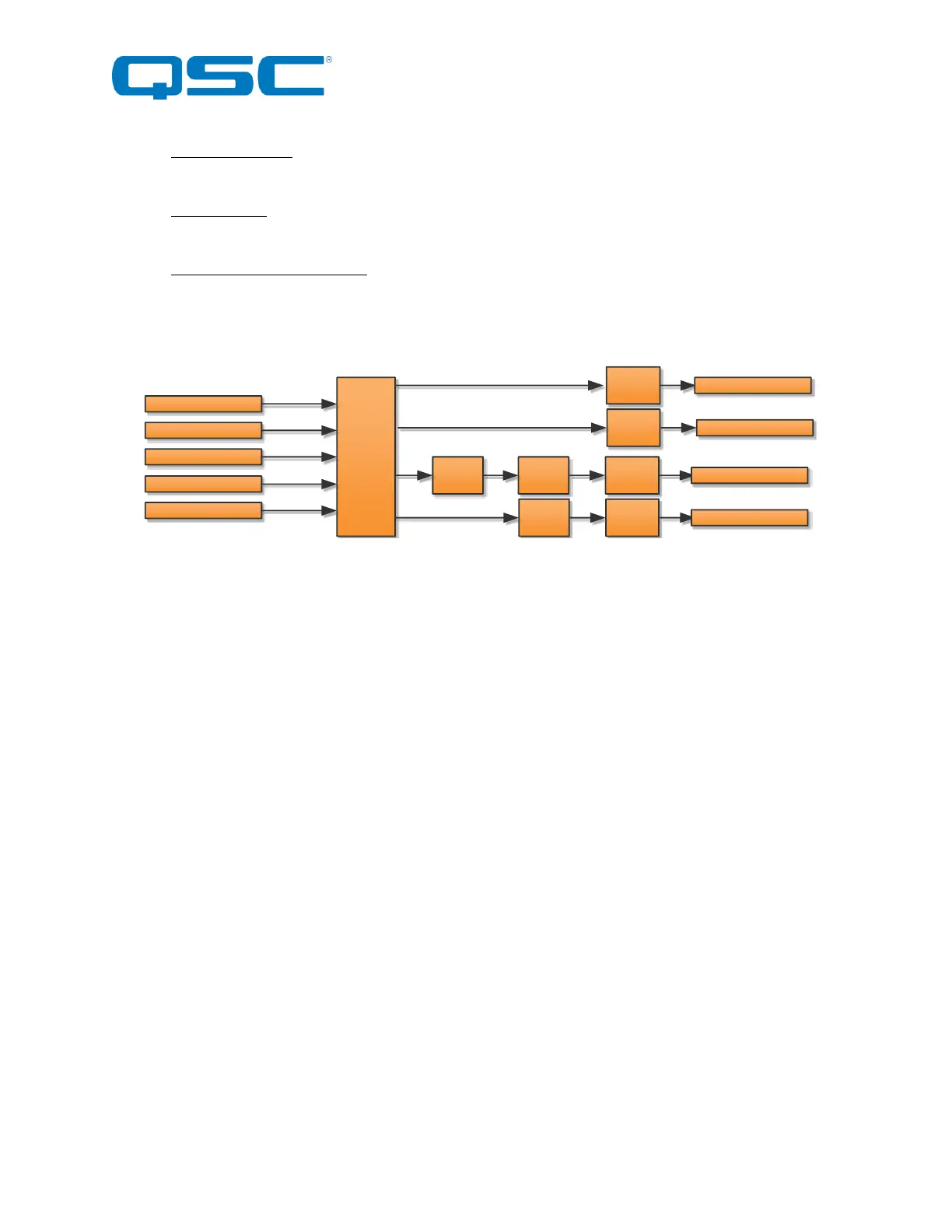

Figure 2 – Internal Audio Signal Flow
1.2 – What’s in the Box
The unHX2D comes supplied with the following:
o (1) unHX2D device
1.3 – Optional Extras
The following are available as options for the unHX2D and may be ordered separately:
o 24V DC Power Supply - P/N: 900-00175
