Connections and Callouts

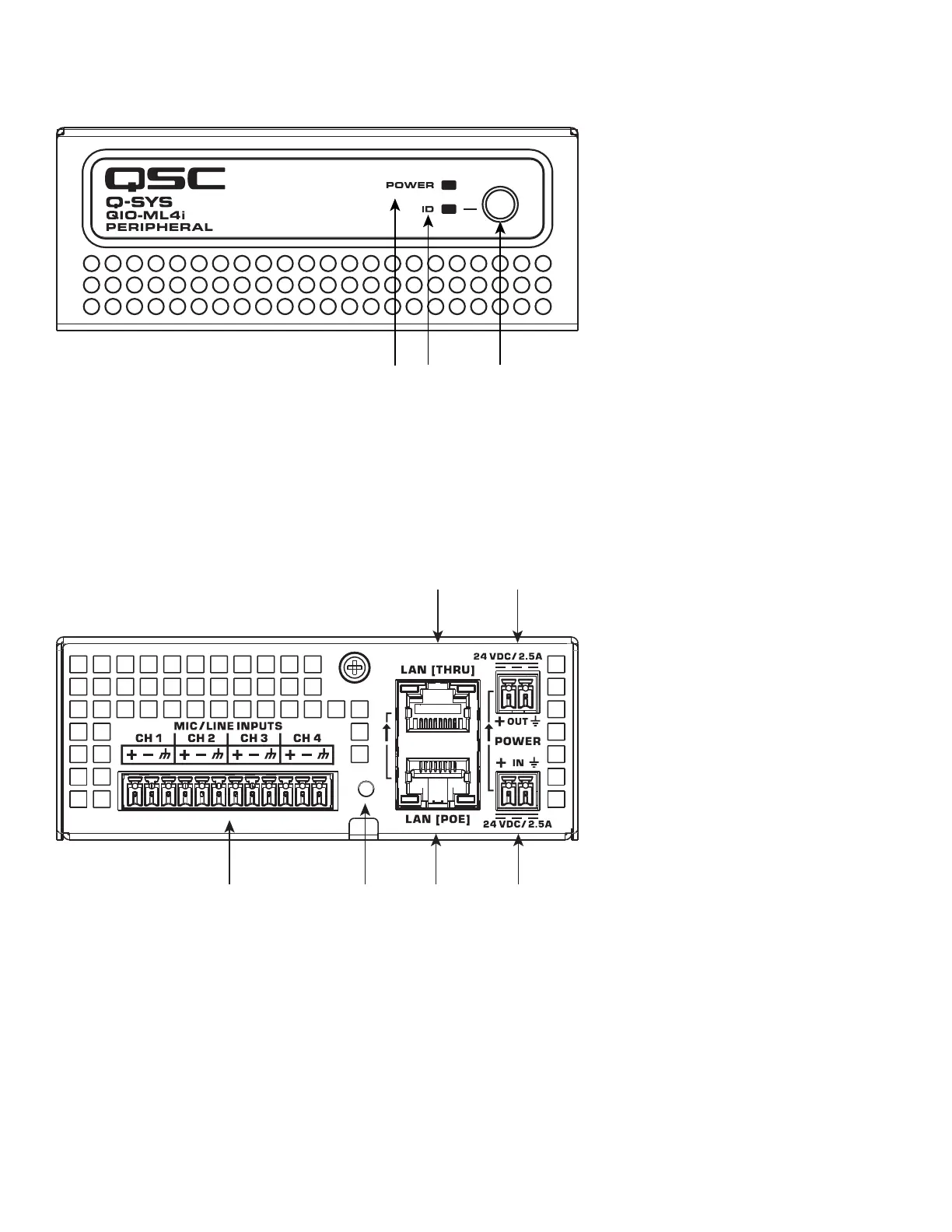

QIO-ML4i Front Panel
1
2
3
1. Power LED – Illuminates blue when the Q-SYS QIO-ML4i is powered on.
2. ID LED – LED blinks green when placed into ID Mode via ID Button or Q-SYS Configurator.
3. ID Button – Locates the QIO-ML4i in Q-SYS Designer Software and Q-SYS Configurator.
QIO-ML4i Rear Panel
4
2
1
3
5
6
1. External Power Input 24V DC 2.5 A – Auxiliary power, 24V DC, 2.5 A, 2-pin Euro connector.
2. Daisy-Chain Power Output 24V DC 2.5 A - Auxiliary power, 24V DC, 2.5 A 2-pin Euro connector.
3. LAN [PoE] – RJ-45 connector, 802.3af PoE Type 1 Class 3 power, Q-LAN.
4. LAN [THRU] – RJ-45 connector, Ethernet daisy-chaining.
5. Device Reset – Use a paperclip or similar tool to restore default network settings and recover factory default settings. Before
attempting a reset, refer to the Q-SYS Help for details.
6. Mic/Line Inputs – Four channels, balanced or unbalanced, phantom power – orange.
