Installing the Optional Input Cover
Due to the variety of cable diameters, the "cable gland" (suitable for a 22.5 mm diameter hole) must be sourced independently.
The subwoofer comes with a weather cover for the input cup to protect the input connections and switches from precipitation and other
weather hazards. Use the weather cover for all outdoor installations or any applications where the loudspeaker may be exposed to
moisture. To ensure a good seal in the cable gland, use outdoor-rated cable with a round jacket up to 0.37 in or 9.4 mm in diameter.
To use the weather cover:
1. Loosen the nut on the cable gland.
2. Pass the cable all the way through the nut and the rest of the gland.
3. Attach the input connector to the wires (see Input Connector, below).
4. Once the subwoofer enclosure is installed, plug the input connector into the
loudspeaker's input cup. Secure the connector to the loudspeaker using the two
captive retaining screws, one on each end.

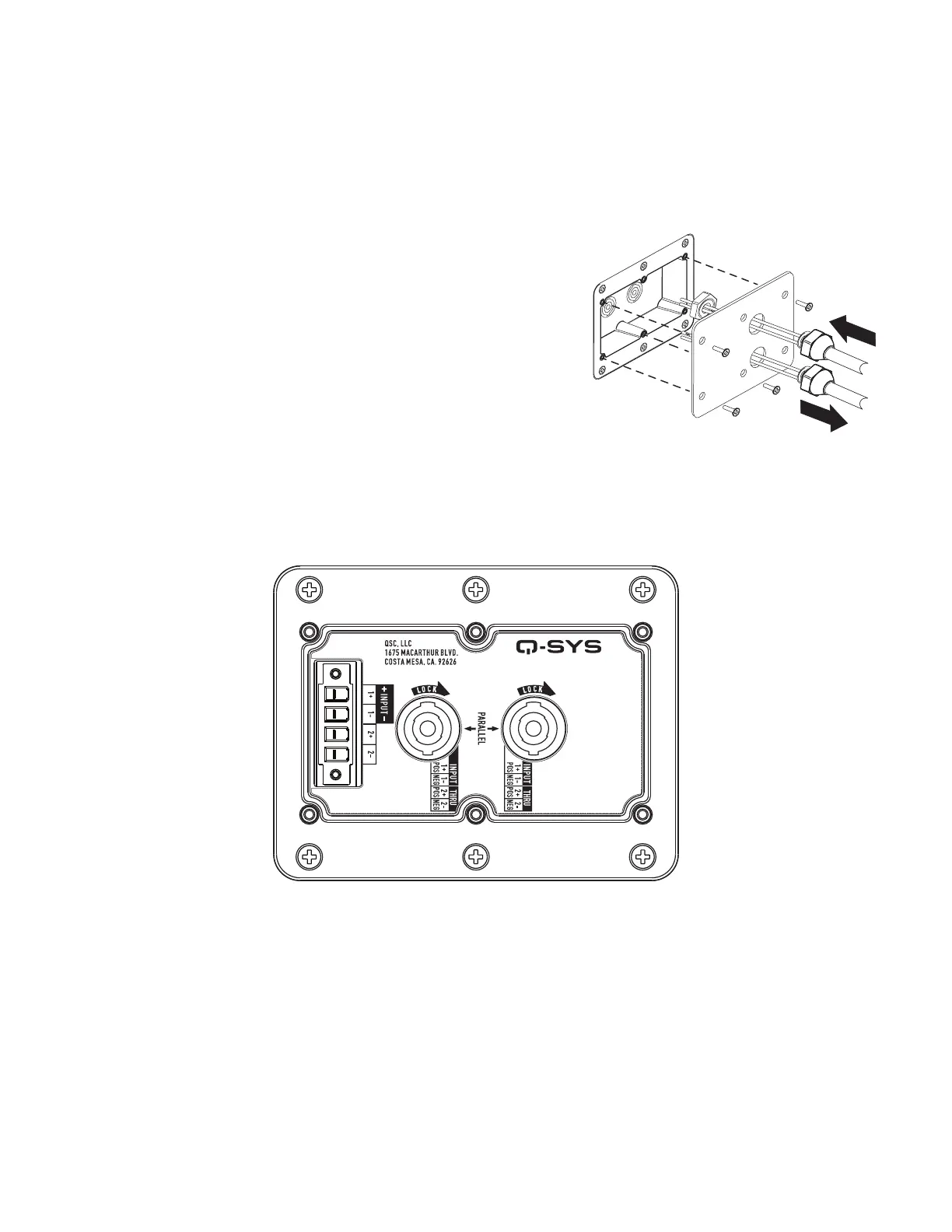

5. Place the cover onto the subwoofer's input cup and attach it using the four
screws, lock washers, and flat washers provided.
6. Dress the cable so there is no undue strain on it. Tighten the gland nut until the grommet inside the gland has made a tight seal onto
the cable jacket.
The optional input cover only accommodates the EUROBLOCK connector, not the SPEAKON NL4.
Use the hole cover LB-004261-20 for sealing the extra hole when needing only single termination.
