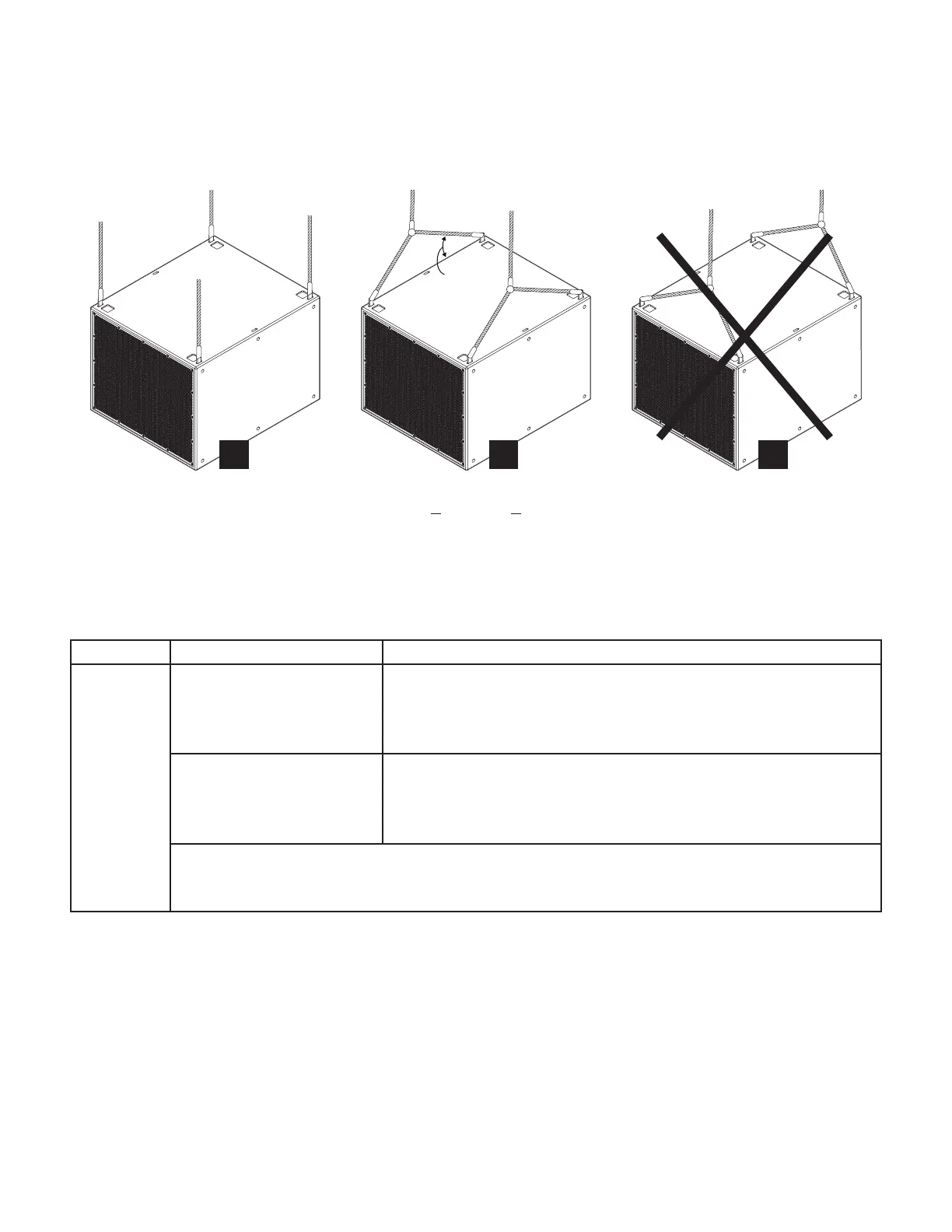

Flying a single PL-SUB18 without Array Frame
1. Attach four 1/4 in. shackles with an 8 mm pin shaft to the Straight Links in a straight position.
2. Attach bridles to the sides of the subwoofer so that the top angle is greater than 45°.
3. Do not attach bridles to the ends of the subwoofer.
1 2 3
>45°
Figure17
Input Connection
Product Connector Specifications
PL-SUB10
PL-SUB12
PL-SUB15
PL-SUB18
• 1 EUROBLOCK Connector • Current Rating 32 Arms
• Solid Wire 8-24 AWG (up to 10 mm
2
)
• 4 poles Connector 1+/1- SUB, 2-/2+ Not Connected
• Fasten on male part with M3.5 screws
• 2 x SPEAKON NL4 (cable
connector not provided)
• Locking
• Up to 30 Arms
• Up to 9-16 AWG gauge (up to 6 mm
2
)
• Connectors are wired in parallel, allowing daisy chain THRU
• Both connectors are recessed.
• The plate allows 2 gland connectors (not provided) to pass the signal IN and OUT.
• IP65 sealing is only available when using the EUROBLOCK connector.
