User Manual

PT-SCREEN-200

8

Front

Remote Control Receiver and

Power Lamp:

Remote Control Receiver: Use the remote control of

the signal source connected with HDBT TX to point

to this Remote Control Receiver to control the signal

source. Power Lamp: Lamp is red when power o.

Lamp is on when power is on.

Rear

A/V:

Push A/V to select the input signal between HDMI

and HDBT

Menu:

Button for OSD menu

Keylock function: Press Menu key for 8 sec, OSD will

be locked. To unlock, press Menu key for 8 sec again

Curser:

 move curser downward

 move curser upward

Power ON/OFF Button: Push button to ON/OFF display

HDBaseT (RJ-45):

HDBaseT signal sent from HDBaseT Transmitter by

CAT 5E/6 cable

HDMI:

HDMI Input。User can connect media player HDMI

output to this port.

DC Input:

If no 48V PoE HDBaseTtransmitter used, user can use

AC Adaptor to power the display.

VESA 75x75mm: Screw hole for VESA mounting

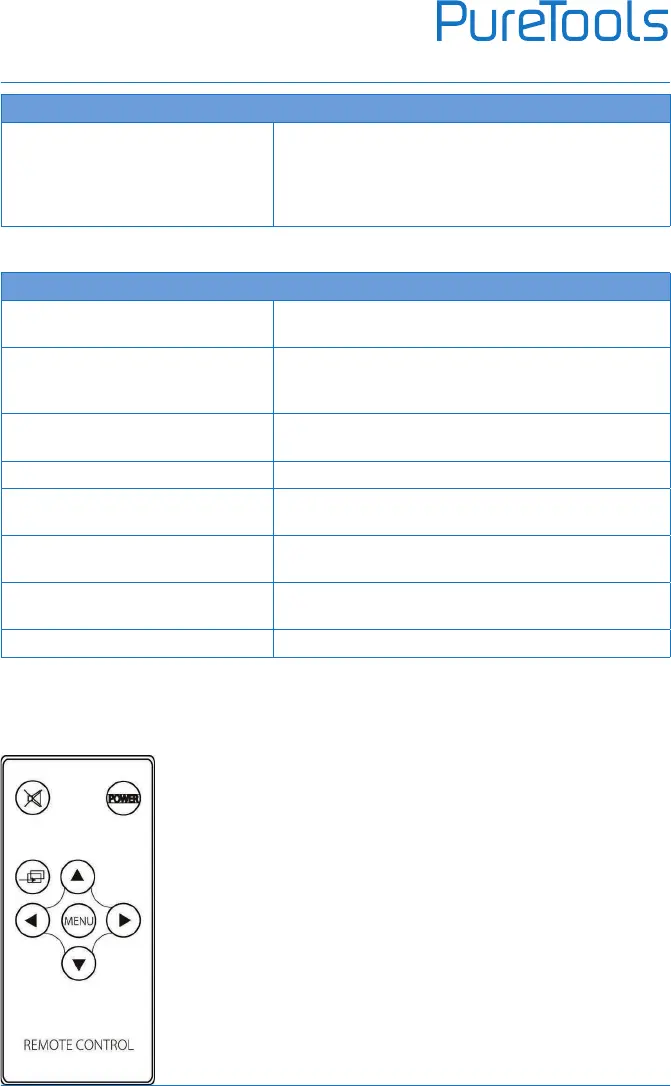

Remote Control

POWER: Power On / O

MUTE: Audio o

INPUT: Input Source Selection

MENU: Start Menu selection

 : No function

 : No function

 : Move cursor up

 : Move cursor down

NOTE: The Remote Control is used to control PT-SCREEN-200

from HDBT TX side. It can NOT be used to control PT-SCREEN-200

locally.
