206

Vess A Class Storage Appliance for Video Surveillance Promise Technology

How to disable the alarm buzzer

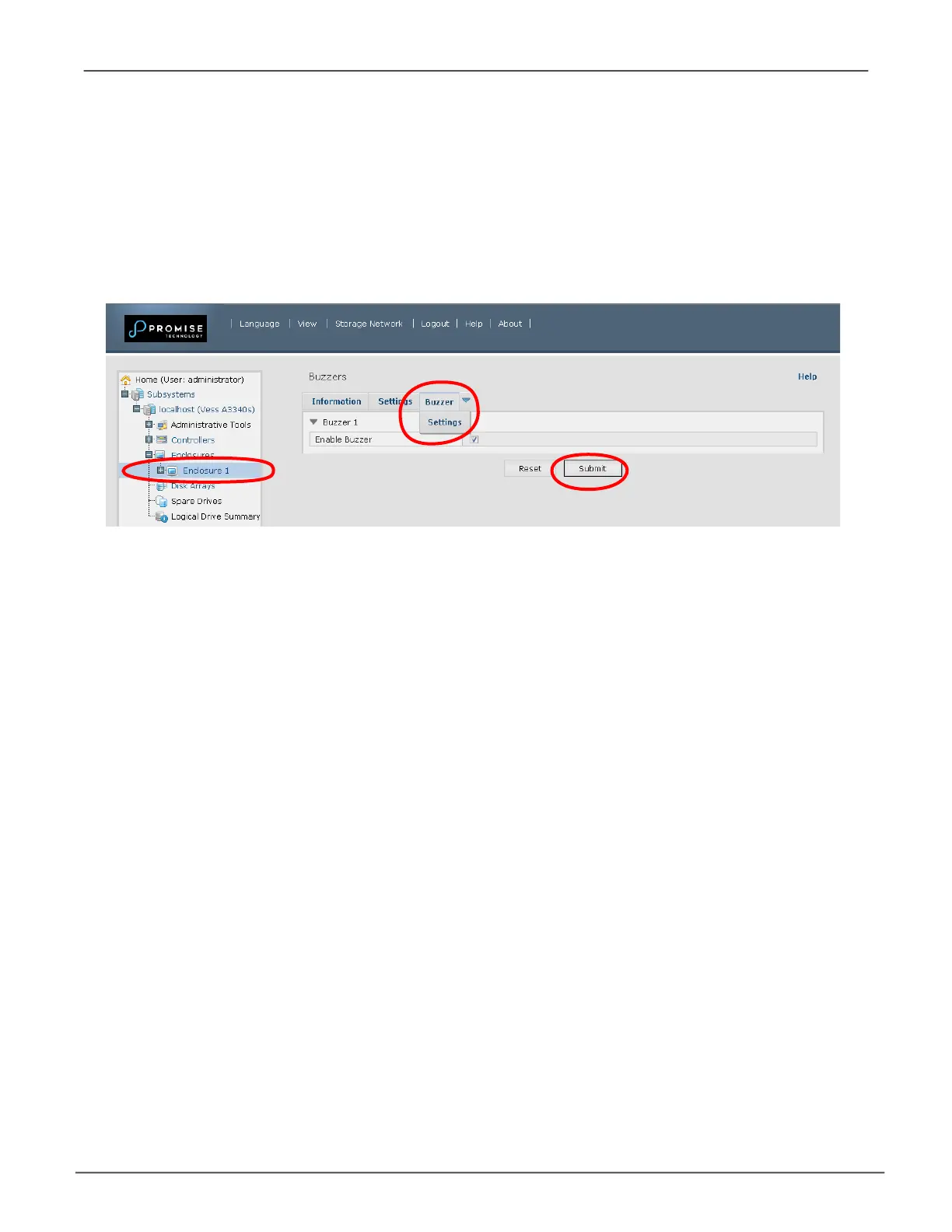

To disable the buzzer with Web PAM PROe, open WebPAM PROe, click on the enclosure

in Tree View, then click on the Buzzer menu expander, scroll to Settings and click the

Enable Buzzer option box to remove the check mark. Click the

Submit button.

To disable the buzzer in the CLU,

1. From the Main Menu use the arrow keys to go to Buzzer, a list of Controllers

appears with the current buzzer setting and status.

2. Highlight Enabled and press the spacebar to toggle No.

3. Press Control-A to save your settings.
