6

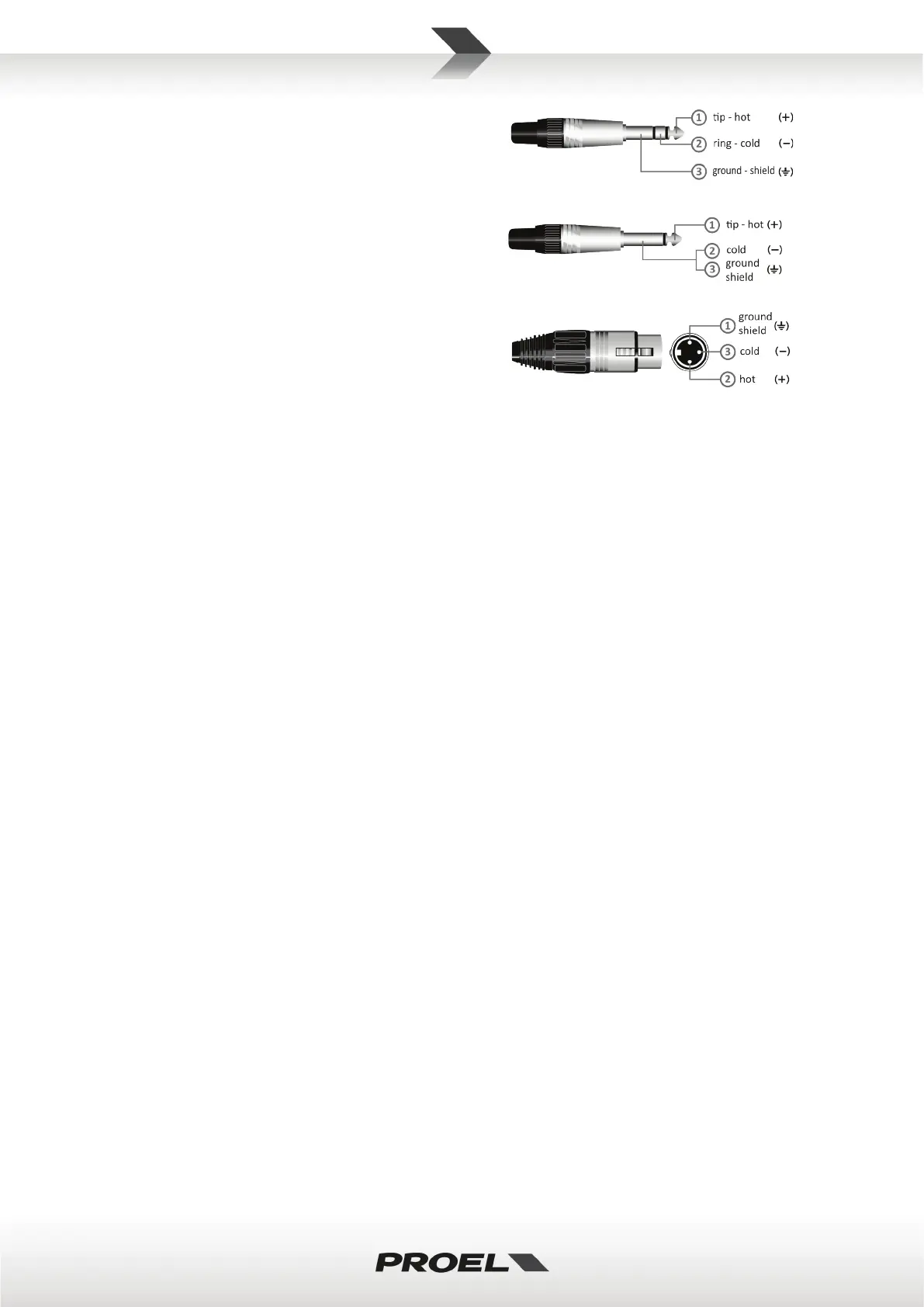

The balanced JACK input is wired as follows:
Tip = + positive or "hot"
Ring = - negative or "cold"
Sleeve = shield or ground
The unbalanced JACK input is wired as follows:
Tip = + positive or "hot"
Sleeve = shield or ground
2. LINK CONNECTOR
This is a male XLR connector, it is connected in
parallel with the respective INPUT socket, so
the LINK is wired as INPUT.
Connect these to the inputs of other powered speakers to make an array.
3. MIC / LINE SWITCH
This switch allows to choose the most appropriate input impedance and gain setting for the sound
source device connected at the input connector. Choose the proper setting among the following:
LINE Raised button if an instrument or another player or mixer with low impedance
line level output is connected.
MIC Pressed button if a dynamic microphone is connected.
4. WIRELESS
This input is reserved for using PROEL U24H or U24B 2.4GHz USB Wireless Microphone.
NOTE: when using the wireless microphones, it is preferable to disconnect any MIC/LINE device.
5. LEVEL
This potentiometer sets the level of MIC /LINE and WIRELESS inputs.
6. SIGN / LIMIT INDICATOR
GREEN LED illuminates to indicate the presence of the signal at the amplifier input.
RED LED illuminates when the internal amplifier's output is limited. When this LED flashes reduce the
input signal level.
7. PRESET BUTTON
Pressing it you can select the DSP PRESET. The selected PRESET is indicated by the corresponding LED:
MUSIC
Enhances low and high frequencies while slightly cutting mid-high tones, and it is used
for most music playback applications.
LIVE
Provides a linear response for the whole audio range and it is optimized for live vocal and
instrumental applications.
DJ
Boosts low and high frequencies typical of recorded electronic and dance music, while
reducing mid-high harshness that can occur at high levels.
MONITOR
Optimized for the use of the speaker as a stage monitor. It features a low-frequency roll-
off and carefully selected EQ cuts able to ensure the maximum gain before feedback.
SPEECH
Includes a significant low-cut filter to reduce rumble and several enhancements of mid-
high frequencies in the vocal range, to maximize the voice intelligibility and to avoid
feedback in speech applications. To be used when a dynamic microphone is connected
directly to the speaker’s input.
Note: the following figure shows the different equalization applied by the DSP. Note that it is a generic
representative graph not related to each single model in which the response is different, in particular at
low frequencies.
