8
USRMAN_AE604EN_REV003

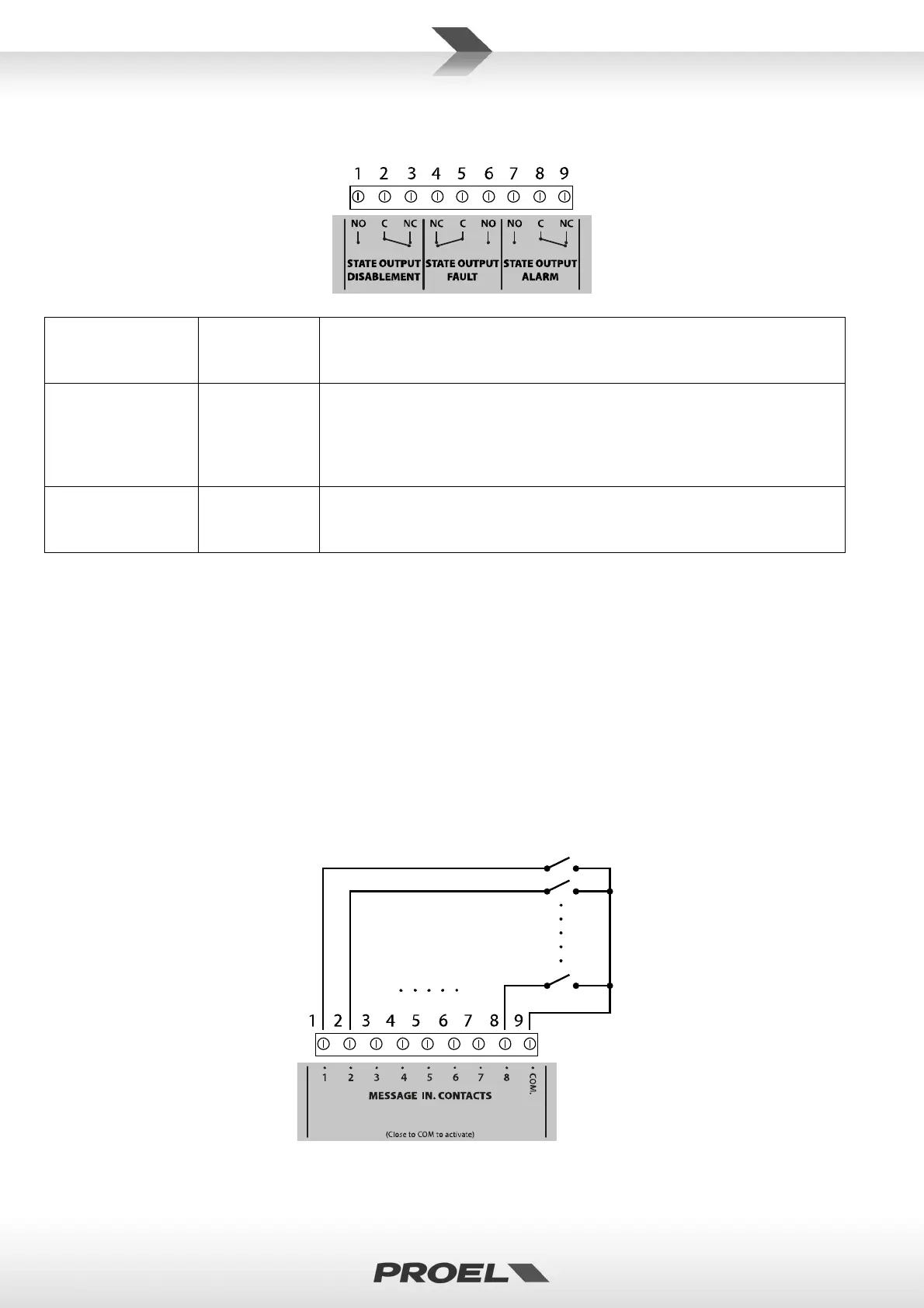

4.f Status outputs
The system has three status dry contact “Relay” outputs for reporting the machine status.
DISABLEMENT
1 – N.O.
2 – Common
3 – N.C.
Toggles in case of DISABLEMENTS
Max 500mA – 125Vac
FAULT
4 – N.C.
5 – Common
6 – N.O.
Toggles in case of FAULT
Max 500mA – 125Vac
It should be noted that in the absence of power supply the contacts switch to the FAULT
state.
ALARM 7 – N.O.
8 – Common
9 – N.C.
Toggles in case of ALARM
Max 500mA – 125Vac
4.g Generic messages activation contacts
The system has 8 unsupervised inputs for activating the generic and service messages recorded on uSD memory card. Each message is activated
by closing its ground input, as shown in the figure below.
The playback of the message is activated by a pulse. Releasing the contact after shorting it to ground has no effect, but the message will be
played till its end. When a message is being played, a second pulse will stop the player.
Generic messages have predefined priorities: message n has a priority over message n+1.
Example:
• When message 2 is played, the closing of contact 1 will stop message 2 and start message 1
• When message 2 is played, the closing of contact 2 will stop message 2
• When message 2 is played, the closing of contact 3 is ignored.
This said, message 8 will has the lowest priority, but message 1 has the highest.
Each contact is active only if an associated audio file is stored in the uSD card, refer to relative menù section. OK -> 3 x DOWN -> RECORDED
MESSAGES & SD.
