7
Line 1-A output
Line 1-B output
Line 2-A output
Line 2-B output
Line 3-A output
Line 3-B output
Line 4-A output
Line 4-B output
1 – 100V +
2 – 100V –
3 – 100V +
4 – 100V –
5 – 100V +
6 – 100V –
7 – 100V +
8 – 100V –
100V Constant voltage loudspeaker outputs
The sum of all loads connected to Lines 1 and 2 shall not exceed 300W, Rmin=33,3Ohm
The sum of all loads connected to Lines 3 and 4 shall not exceed 300W, Rmin=33,3Ohm
Use twisted cable with section 2.5mm / max 4mm

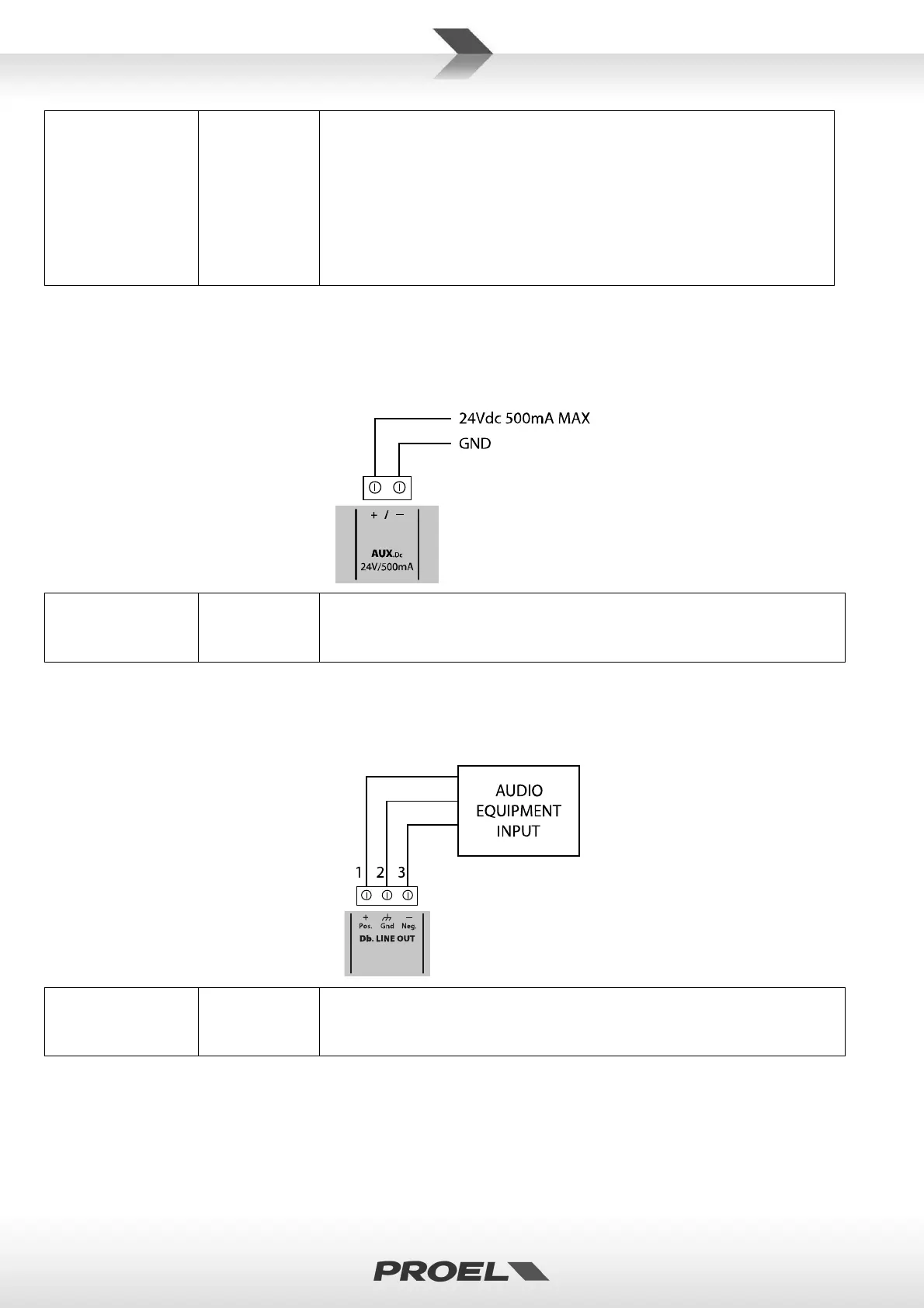

4.d 24Vdc Output
The system has an auxiliary 24Vdc output that can be useful to power external devices.
This output is automatically disabled when the unit is in the Fire Alarm condition and/or in case of a mains power loss.
24Vdc Aux output
1 – +24Vdc
2 - GND
Max 500mA, internally fused
WARNING: the Common port is hardly connected to system ground. Wire accordingly to
external equipment.
4.e Line Output
The system has a transformer-coupled balanced and isolated line audio output for a connection to external sound systems.
Line output
1 – Audio Pos
2 – GND
3 – Audio Neg
Power levels: 1.0Vrms, Ro=600ohm
Use shielded cable with min section 0.5 mm
This output is isolated from system ground
