12
USRMAN_AE604EN_REV003
3 – Audio N
4 – GND
5 – +24Vdc
6 – GND
7 – COMM P
C – COMM N
the communication with the microphone workstation is lost due to short-circuit or cable
cutting.
Proprietary connection for connection to the dedicated microphone workstations PA
DBExx Series
Use 8-pole UTP CAT5 cable, 4 pairs. Head the RJ45 connectors 1-to-1

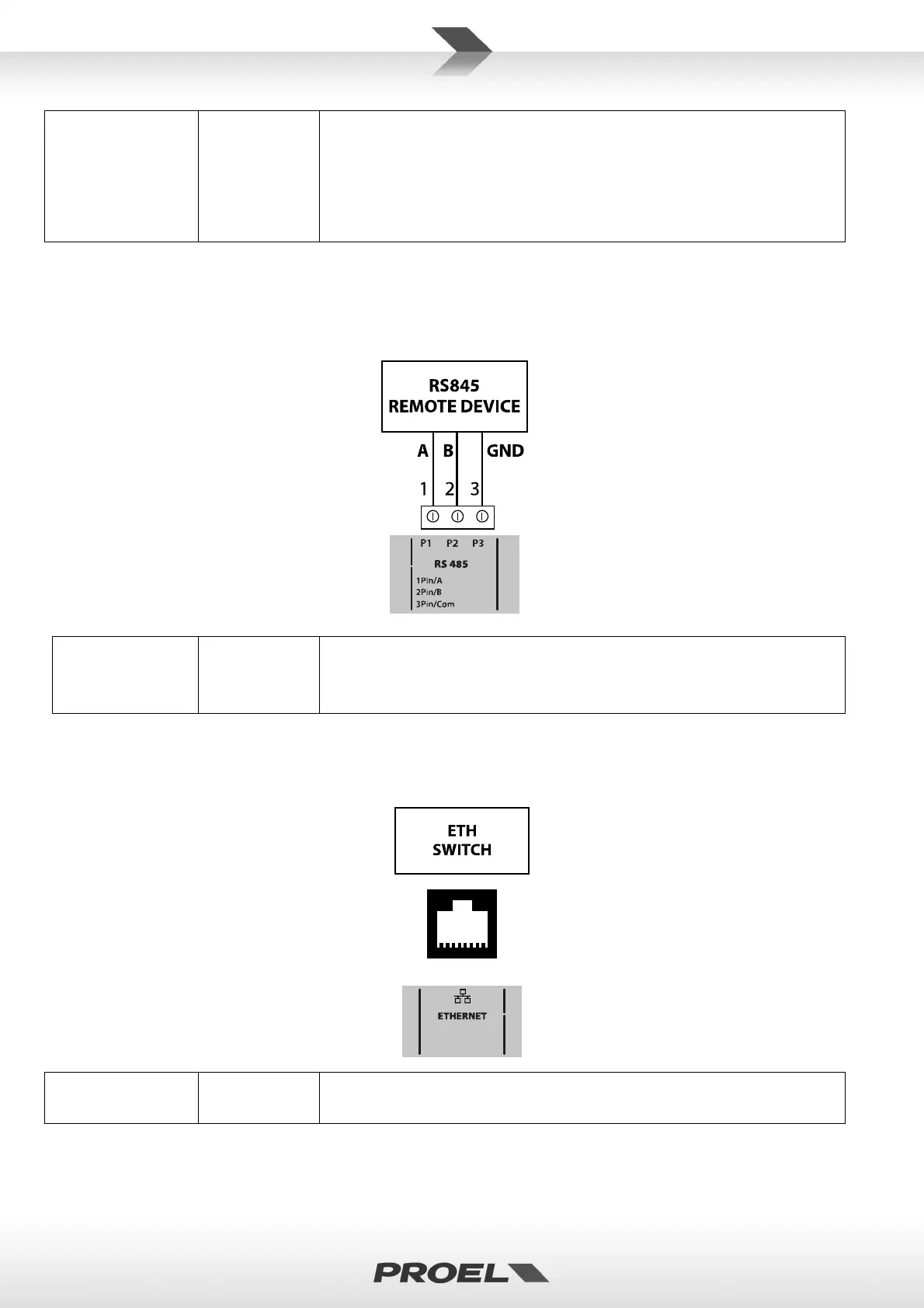

4.n RS485 Serial connection
The system implements an RS485 communication port for connection to remote devices with dialogue through protocol, described in the
specific manual. The following figure describes the connection between the AE604 and an external device, through RS485 port. The AE604 has a
120ohm termination that is not removable.
RS485
1 – RS485 A
2 – RS485 B
3 - Ground
Port RS485 not insulated.
Standard power levels ANSI TIA/EIA-485
Use shielded cable with min section 0.5 mm
4.o Ethernet port
The ethernet port allows connecting the system to a company data network, or a dedicated data network, to remotely monitor the machine and
connect several machines in a hierarchical manner.
Ethernet port Standard pinout Ethernet port 10/100 Base T insulated with coupling to connector built-in transformers
Use UTP CAT5 cable // Use Switch type PoE 8 Port rj45 /2 port SfP -150W .
