Extended Holding Bin
General Market Series

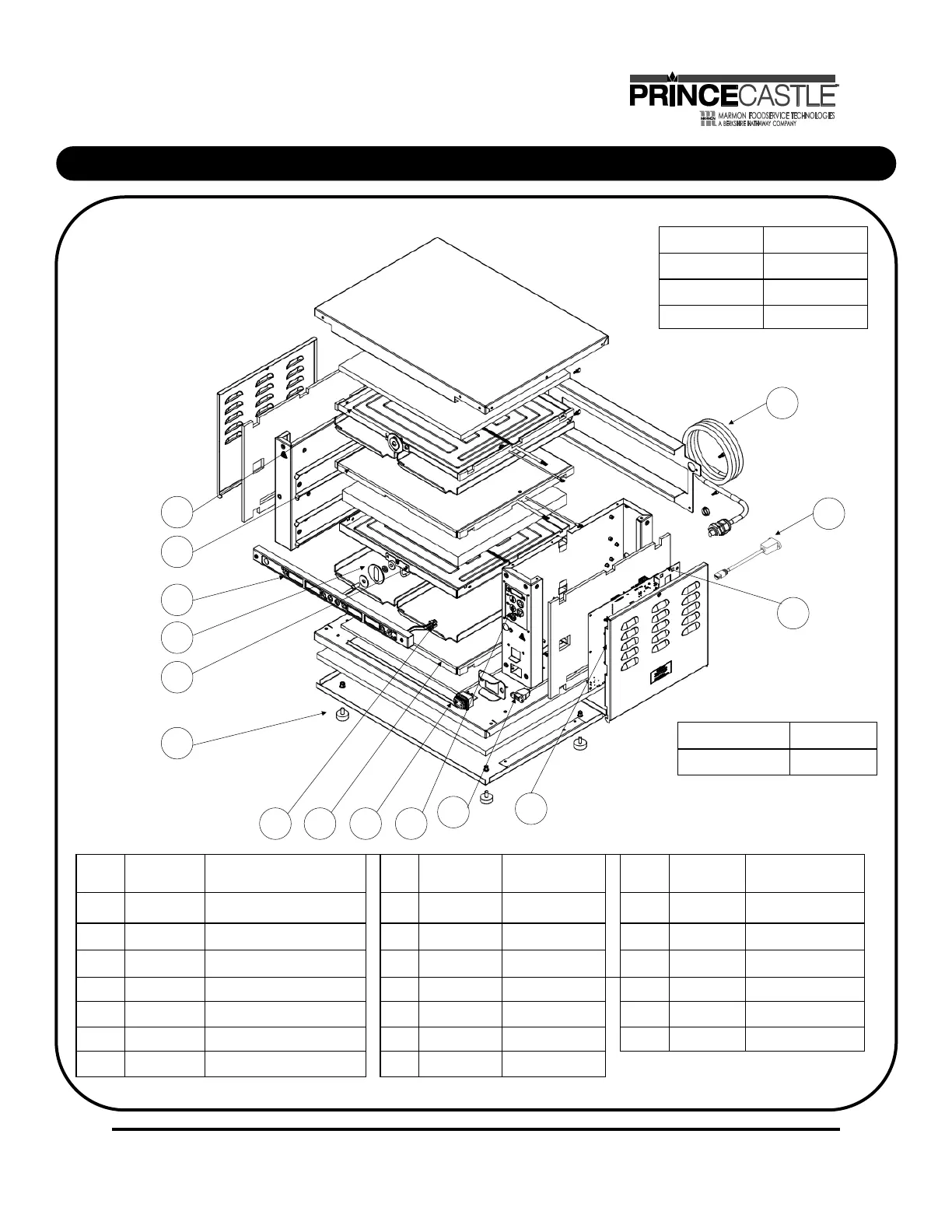

Exploded View
1
2
3
4
5
6
8
9
10
11
13 12
14
15
EHB22F1-GMS02
*Only for GMS60 and GMS78
16
ITEM
NO.
PART
NUMBER
DESCRIPTION
ITEM
NO.
PART
NUMBER
DESCRIPTION
ITEM
NO.
PART
NUMBER
DESCRIPTION
1 197-232S FOOT, 4 PACK 4* 540-1111S
HEATER ASSY, LOWER
TOP SHELF 2W, 220V 11 POWER CORD SEE CHART ABOVE
2* 540-1233S HTR, BOTTOM SHELF, LOWER, 120V 5* 540-1120S
UPPER HEATER TOP
SHELF, 220V 12 540-1215S OVERLAY AND DISPLAY
3* 540-1234S HTR, CENTER SHELF, UPPER, 120V 6 510-520S 4 CH MAIN BAR KIT 13 78-184S POWER SWITCH
4* 540-1235S HTR, CENTER SHELF, LOWER, 120V 7 510-521 4 CH AUX BAR KIT
14 94-1819S USB CORD
5* 540-1236S HTR, TOP SHELF, UPPER, 120V 8 540-1158S LATCH, CATCH
15 541-1750S EHB GM 2x2 5500 PCB KIT
2* 540-1107S HEATER ASSY LOWER SHELF, 2W, 220V 9 540-1251S LID, 4 PACK
16 95-2011S ETHERNET CONNECTOR
3* 540-1108S HEATER ASSY, UPPER, 2W, 220V 10 88-709-2-11S SPEAKER
*2-5 DEPENDENT ON
VOLTAGE OF UNIT
Part Number Descripon
88-824S LINE FILTER*
Model Power Cord
GMS02 72-704S
GMS60 72-693S
GMS78 72-526S
