63
13 The Settings Page
13.9 Smaart System Check Wizards (StudioLive AI-series only)
Universal Control for StudioLive
®
Mixers
Software Reference Manual
Clicking on the Smaart Wizards tab in the Settings page will launch Smaart System Check mode. While in
this mode you can launch any of the following wizards:
y SRA: Smaart Room Analysis generates a frequency-response trace and overlays it on the parametric EQ
in Universal Control so you can adjust your system to get rid of unwanted anomalies in the room.
y SSD: Smaart System Delay calculates and sets the correct amount of delay time between two
full-range systems.
y SOC: Smaart Output Check verifies that your system outputs are routed correctly and are passing signal.

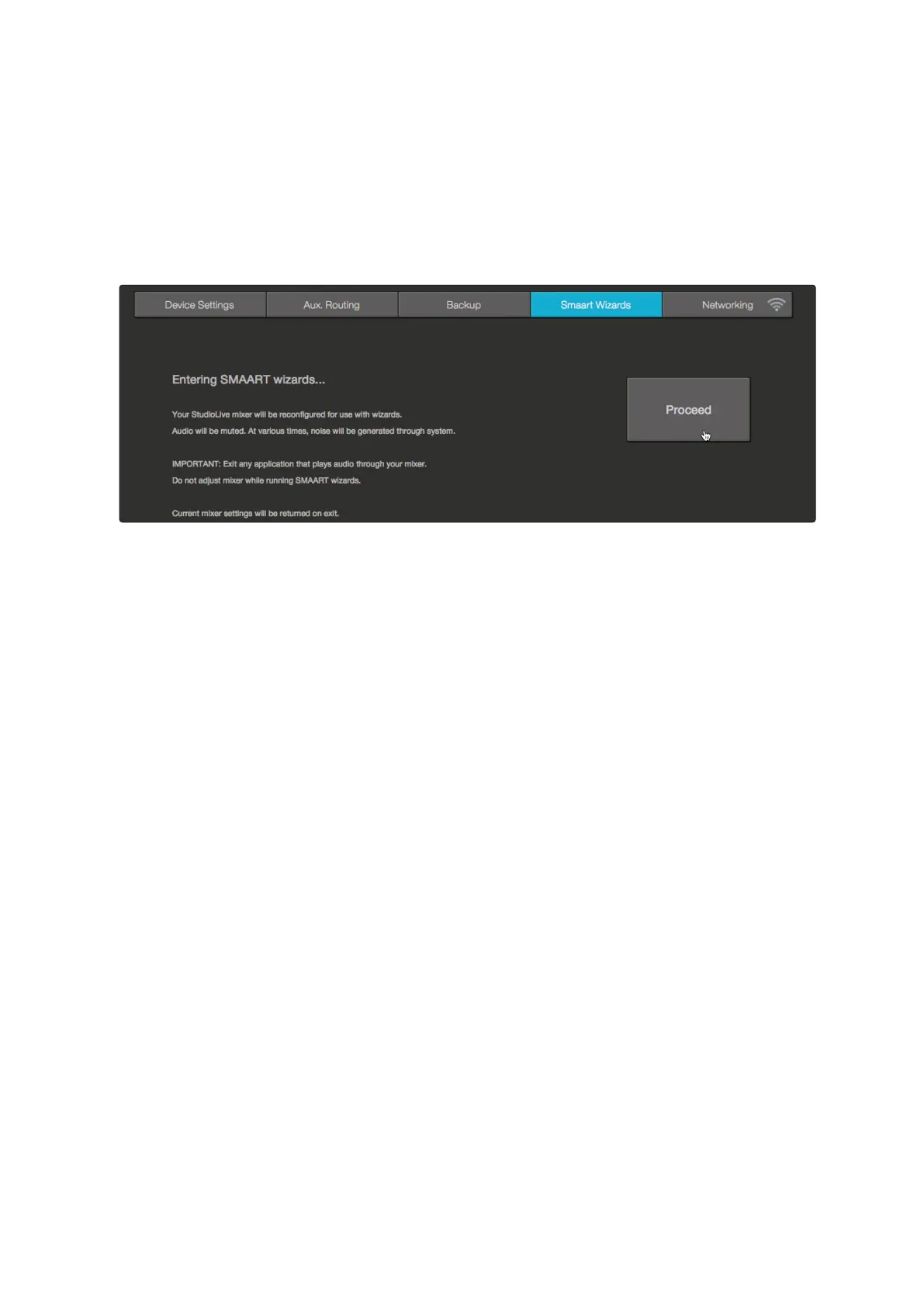

To run any of the Smaart System Check Wizards, Universal Control will need to take over your mixer. When
you first click on the Smaart Wizards, you will see a warning to this effect.
Clicking on the “Proceed” button will launch the Wizard select window and you will no longer have control
over your mixer. You can exit the Wizards and regain control at any point simply by clicking on one of the
other tabs or closing the Settings Page.
Note: To run the SRA and SSD wizards, you will need to connect a measurement microphone to your
StudioLive’s Talkback input. You’ll also need a mic stand and a long enough cable to place the mic in front of
your speakers.
A measurement microphone is special type of condenser microphone that is designed to provide an
accurate reproduction of a room’s sound characteristics for use with audio-analysis tools, such as RTAs
and spectrographs. Measurement microphones typically have an omnidirectional polar pattern and deliver
a very flat frequency response between a low end of 5 Hz to 30 Hz and a high end of 15 to 30 kHz. While
measurement microphones can be quite expensive, most affordable models will do the job nicely when paired
with the Smaart System Check Wizards. PreSonus offers the budget-priced PRM1 Precision Measurement
Microphone for this purpose.
