Je bekijkt pagina 58 van 97
54
13 The Settings Page
13.4 Backup
Universal Control for StudioLive
®
Mixers
Software Reference Manual

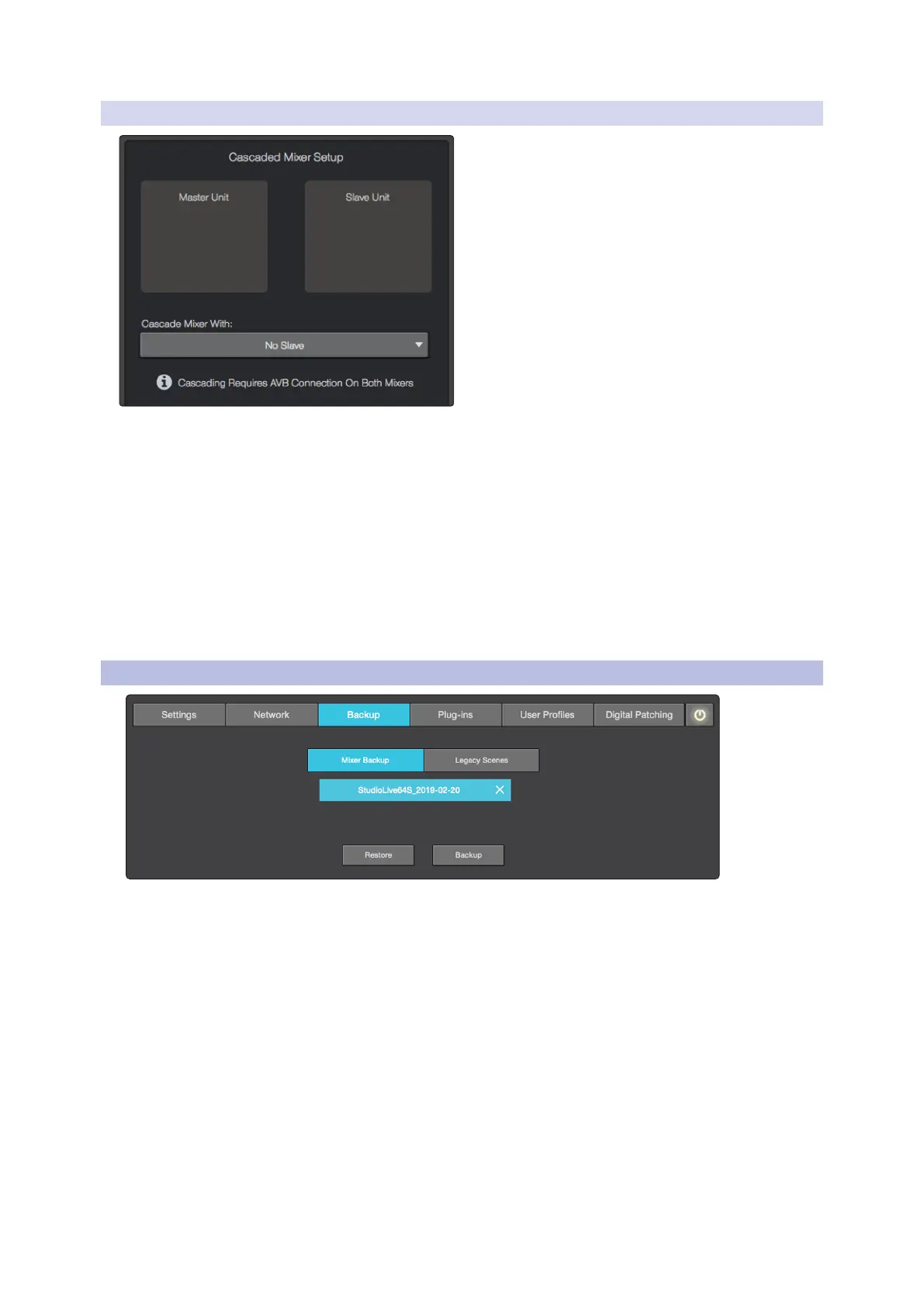

13.3.5 Cascading Mixers (StudioLive RM/RML mixers)
There are a few different ways to use cascaded RML-series mixers. For all configurations, you’ll need to
connect the mixers via Ethernet using a compatible AVB switch like the PreSonus SW5E.
In the Cascading Mixer Setup section of the Network tab, select the mixer you’d like to be Channels 33-64
from the drop-down list.
Note: Establishing the cascaded connection may take several seconds. When complete, you’ll see each
mixer displayed in the Master and Slave unit spaces.
Once your mixers are cascaded, they will function as a single 64-channel mixer. The tab at the top of the
screen for the slave mixer will go away and when looking at the mixer view in Universal Control, you will see
64-channels. Channels 1-32 will reside on the master mixer, and Channels 33-64 will reside on the slave.
To remove the cascade, select None from the “Cascade with mixer” drop-down list.
If you’re using a StudioLive CS18AI, select either mixer from the drop-down list in the UCNET screen, and
you’ll have control of both mixers as a single 64-channel system.
13.4 Backup
The Backup tab displays any backup logs that have been created in Universal Control. The Backup tab allows
you to create complete, time-stamped snapshots of your StudioLive. This can be especially useful when
completing a project that may need to be revisited in the future.
To create a backup, simply click on the Backup button.
To restore any backup file, select it and click the Restore button.
