39
7 Fat Channel XT
7.2 High-Pass Filter (HPF)
PreSonus Plug-Ins
Reference Manual

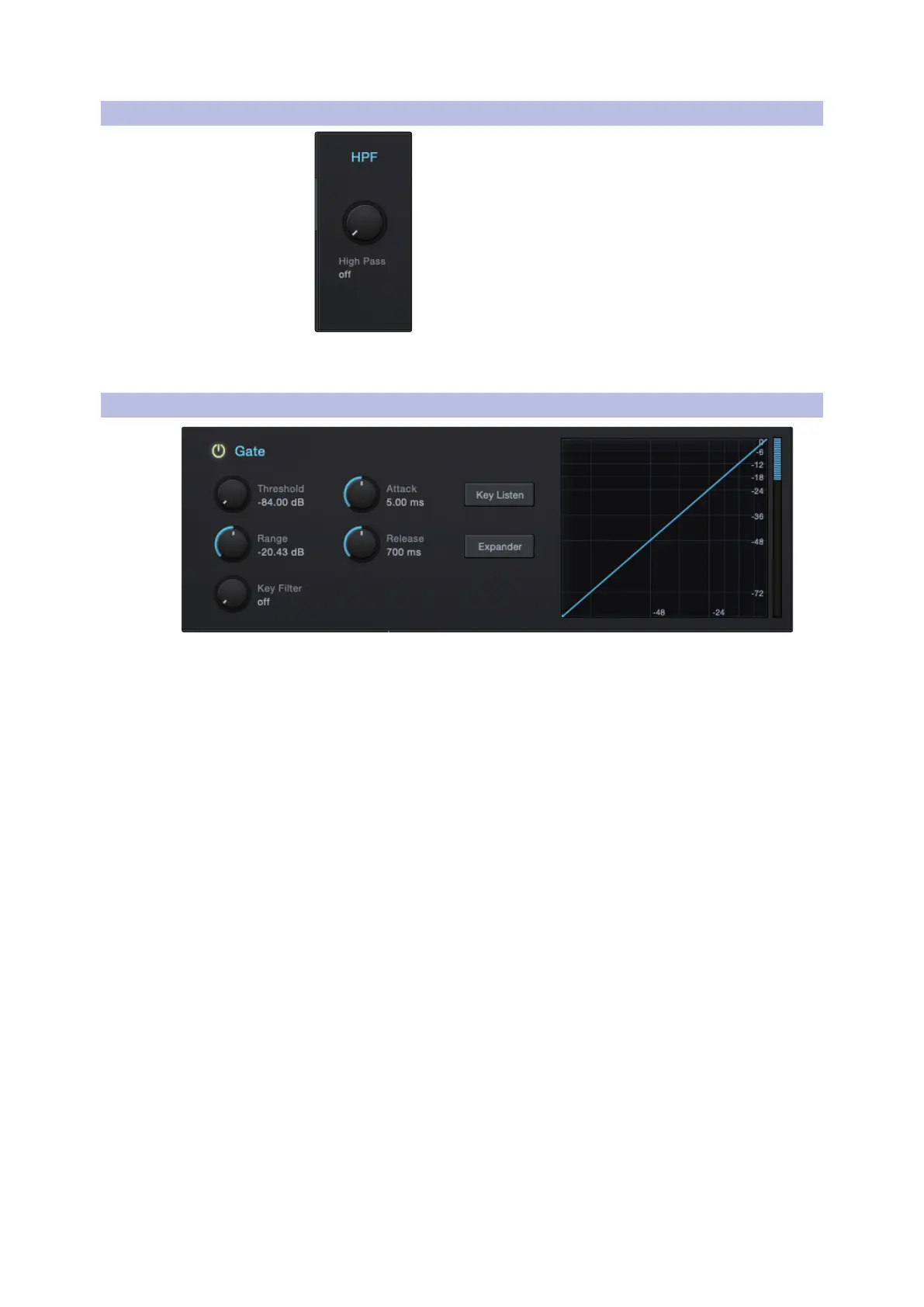

7.2 High-Pass Filter (HPF)
4 High Pass. Sets the frequency of the high-pass filter.
Turn all the way left to disengage the filter.
7.3 Gate
4 Enable/Disable. Click the power button either in the header
or in the module to enable or disable the Gate.
4 Threshold. This knob sets the level at which the gate opens. Essentially,
all signals above the threshold setting are passed through unaffected,
whereas signals below the threshold setting are reduced in level by the
amount set by the range control. If the threshold is set all the way to
the left, the gate is turned off (always open), allowing all signals to pass
through unaffected. You can set the threshold from 0 to -84 dB.
4 Range. This adjusts the amount of gain reduction the gate
produces. The range can be set from 0 to -84 dB. The Range
control is not available when using the expander.
4 Key Filter. This knob adjusts the frequency at which the gate opens. Setting
a specific frequency, in addition to a specific decibel level, provides more
sonic shaping. The key filter can be triggered by the selected channel or
bus’s signal or by sidechaining a channel and using its signal as the source.
4 Attack (Att). This adjusts the rate at which the gate opens on the selected
channel or output. You can set the attack time from 0.02 to 500 ms.
4 Release (Rel). Adjusts and displays the rate at which the gate closes on the
selected channel. The release time can be set from 0.05 to 2 seconds.
4 Key Listen. This button engages and disengages the Key Listen
function, which lets you hear how the gate Key Filter is set.
4 Expander. Switch the gate into expander mode.
4 Interactive Graph. This graph provides a visual representation of
the settings and current activity of the gate. You can also adjust the
setting by moving the blue dots to adjust Threshold and Range.
