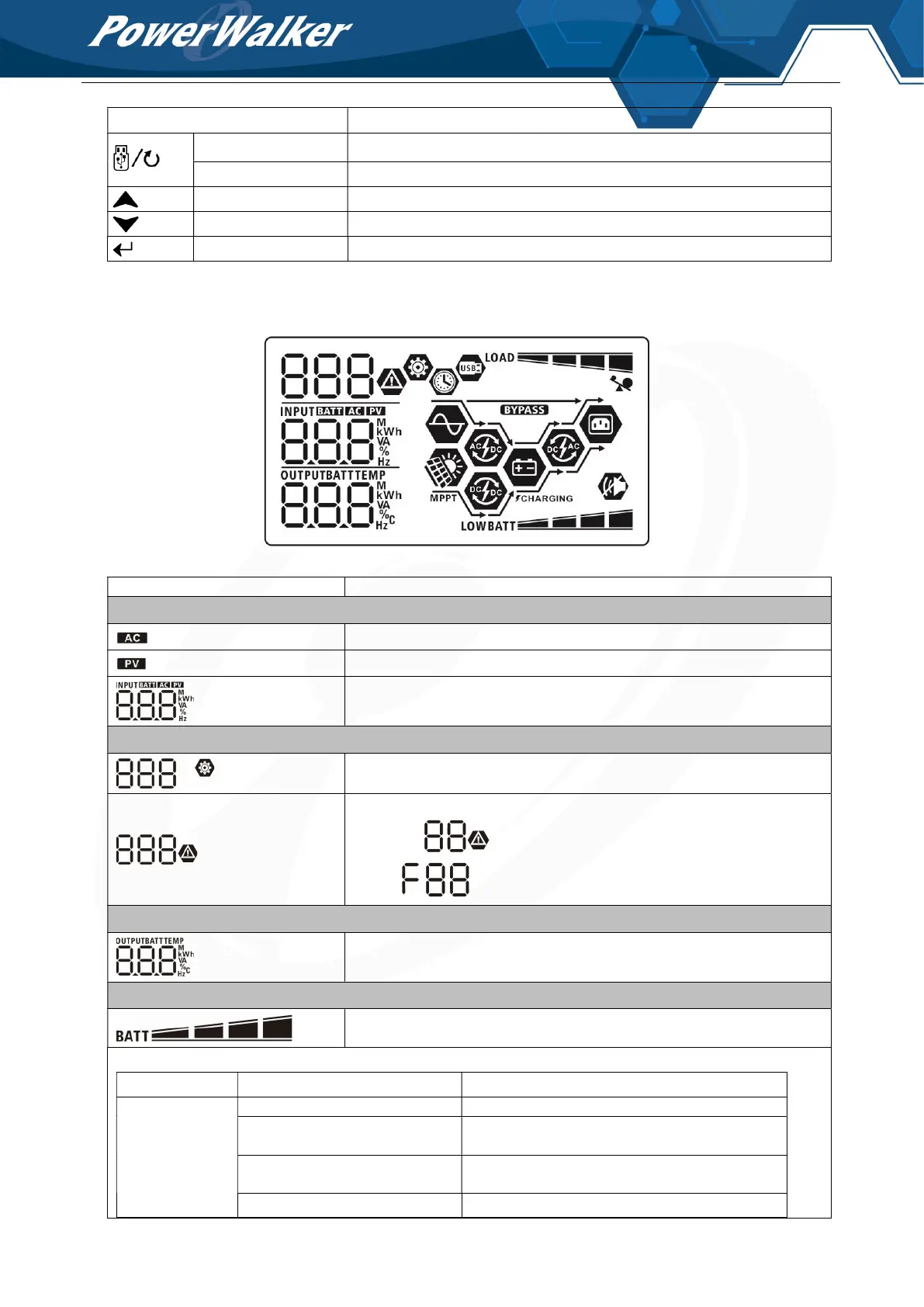

Function Keys

Function Key Description

ESC Exit setting mode

USB function setting Select USB OTG functions

Up To last selection

Down To next selection

Enter To confirm the selection in setting mode or enter setting mode

LCD Display Icons

Icon Function description

Input Source Information

Indicates the AC input.

Indicates the PV input

Indicate input voltage, input frequency, PV voltage, charger current,

charger power, battery voltage.

Configuration Program and Fault Information

Indicates the setting programs.

Indicates the warning and fault codes.

Warning: flashing with warning code.

Fault: lighting with fault code

Output Information

Indicate output voltage, output frequency, load percent, load in VA,

load in Watt and discharging current.

Battery Information

Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in

battery mode and charging status in line mode.

In AC mode, it will present battery charging status.

Status Battery voltage LCD Display

Constant

Current mode /

Constant

Voltage mode

<2V/cell 4 bars will flash in turns.

2 ~ 2.083V/cell

Bottom bar will be on and the other three

bars will flash in turns.

2.083 ~ 2.167V/cell

Bottom two bars will be on and the other two

bars will flash in turns.

> 2.167 V/cell Bottom three bars will be on and the top bar
