OPERATION

Power ON/OFF

Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch

to turn on the unit.

Operation and Display Panel

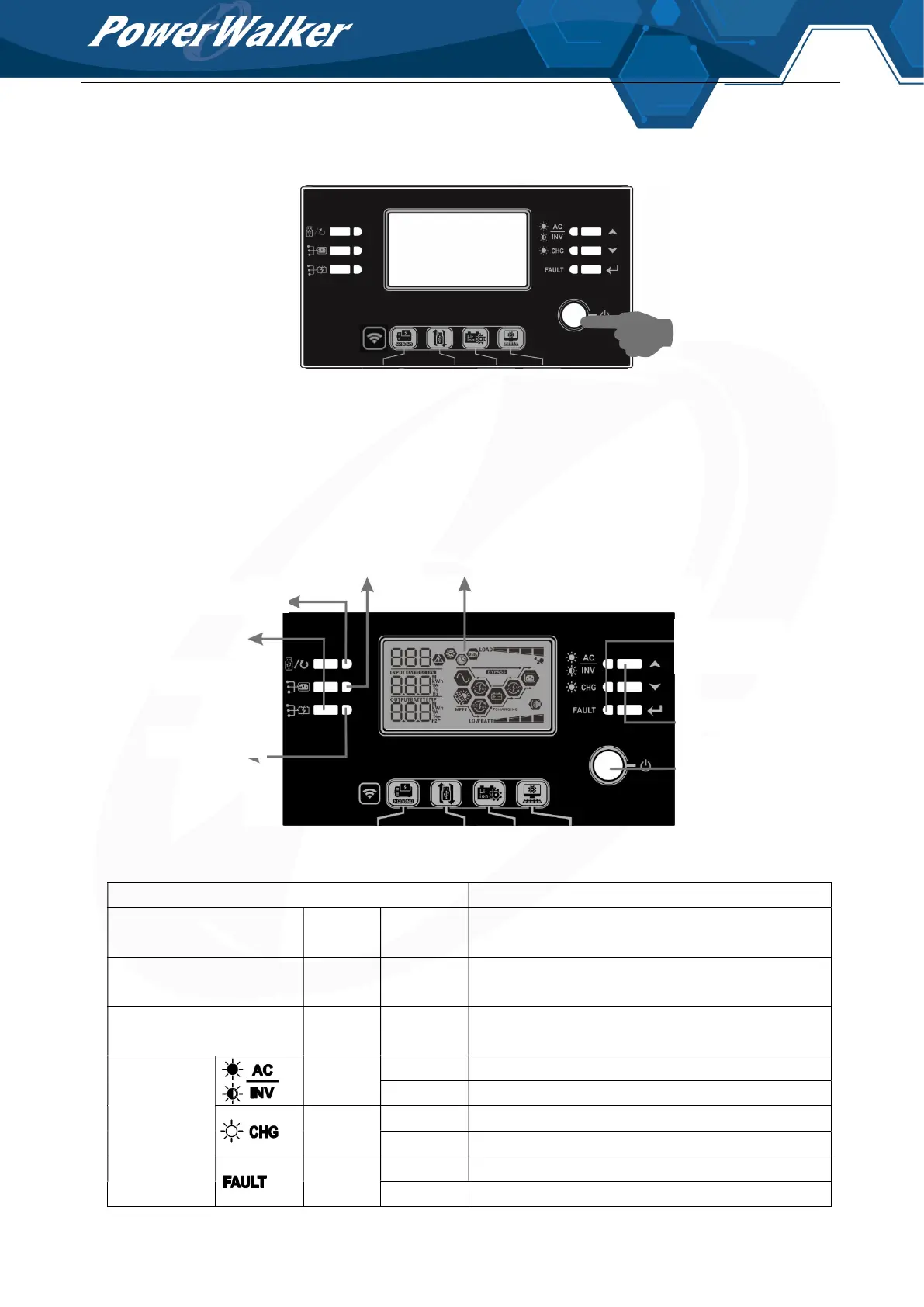

The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes

three indicators, four function keys and a LCD display, indicating the operating status and input/output

power information.

LCD display

LED Indicators

LED Indicator

Messages

Setting LED1 Green Solid On Output powered by utility

Setting LED2 Green Solid On Output powered by PV

Setting LED3 Green Solid On Output powered by battery

Status

Indicator

Green

Solid On Output is available in bypass mode

Flashing Output is powered by battery or AC in inverter mode

Green

Solid On Battery is fully charged

Flashing Battery is charging.

Red

Solid On Fault mode

Flashing Warning mode

Status

indicators

Function keys

On/off switch

Function keys

Setting LED 3

Setting LED 1

Setting LED 2
