Appendix I: Parallel function

1. Introduction

This inverter can be used in parallel with two different operation modes.

1. Parallel operation in single phase is with up to 9 units. The supported maximum output power for 3.6KW

is 32.4KW/32.4KVA. The supported maximum output power for 5.6KW is 50.4KW/50.4KVA. The

supported maximum output power for 6KW is 54KW/54KVA.

2. Maximum 9 units work together to support three-phase equipment. Maximum seven units support one

phase.

NOTE: If this unit is bundled with share current cable and parallel cable, this inverter is default supported

parallel operation. You may skip section 3. If not, please purchase parallel kit and install this unit by following

instruction from professional technical personnel in local dealer.

WARNING: Please make sure all output N wires of each inverter should be connected always. Otherwise, it

will cause fault in error #72.

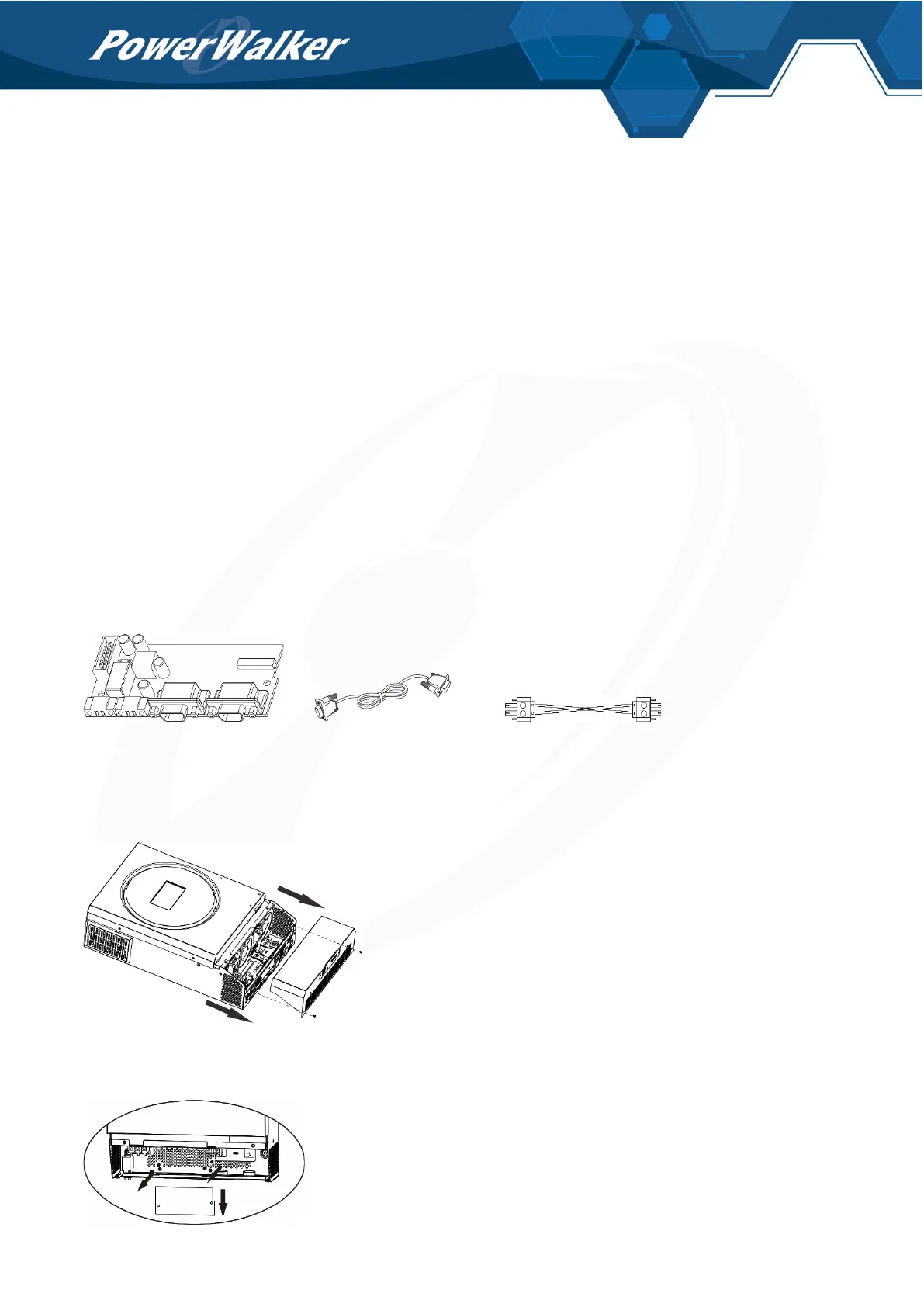

2. Package Contents

In parallel kit, you will find the following items in the package:

rallel board Parallel communication cable Current sharing cable

3. Parallel board installation

Step 1: Remove wire cover by unscrewing all screws.

ep 2: Remove two screws as below chart and remove 2-pin and 14-pin cables. Take out the board under the

communication board.
