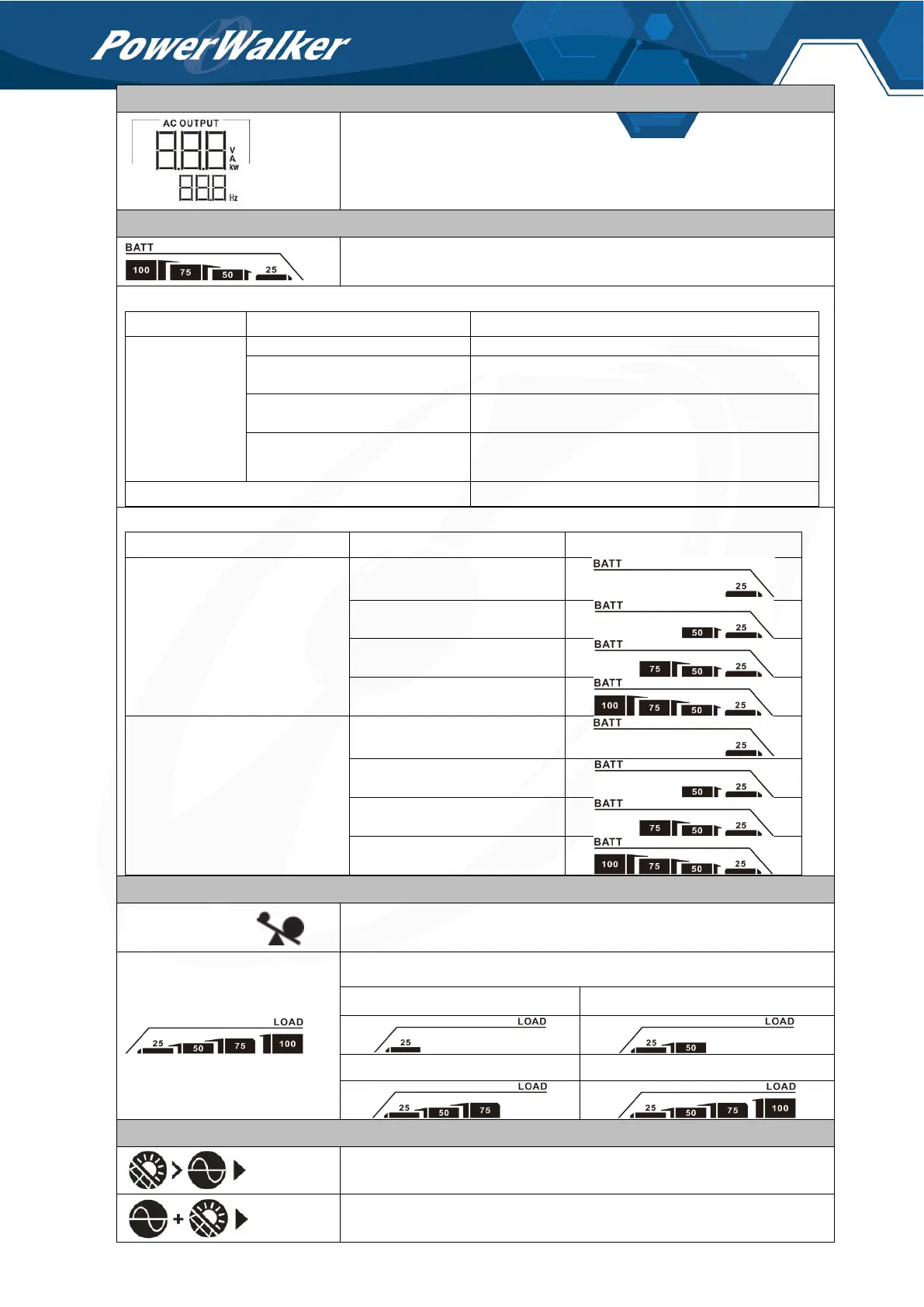

Output Information

Indicate the output voltage, load in VA, load in Watt and output

frequency.

Battery Information

Indicates battery level in battery mode and charging status in line

mode by 0-24%, 25-49%, 50-74% and 75-100%.

When battery is charging, it will present battery charging status.

Status

Battery voltage

LCD Display

Constant

Current mode /

Constant

Voltage mode

<2V/cell

4 bars will flash in turns.

2 ~ 2.083V/cell

The right bar will be on and the other three bars

will flash in turns.

2.083 ~ 2.167V/cell

The right two bars will be on and the other two

bars will flash in turns.

> 2.167 V/cell

The right three bars will be on and the left bar

will flash.

Floating mode. Batteries are fully charged.

4 bars will be on.

In battery mode, it will present battery capacity.

Load Percentage

Battery Voltage

LCD Display

Load >50%

< 1.85V/cell

1.85V/cell ~ 1.933V/cell

1.933V/cell ~ 2.017V/cell

> 2.017V/cell

Load < 50%

< 1.892V/cell

1.892V/cell ~ 1.975V/cell

1.975V/cell ~ 2.058V/cell

> 2.058V/cell

Load Information

Indicates overload.

In

dicates the load level by 0-24%, 25-49%, 50-74% and 75-100%.

0%~24% 25%~49%

50%~74%

75%~100%

Charger Source Priority Setting Display

Indicates setting program 16 “Charger source priority” is selected as

“Solar first”.

Indicates setting program 16 “Charger source priority” is selected as

“Solar and Utility”.
