5. Grid (Utility) Connection

5-1. Preparation

NOTE: The overvoltage category of the AC input is III. It should be connected to the

power distribution.

NOTE2: The inverter is built in a 63A/400V breaker to protect the inverter from AC

power damage.

WARNING! It's very important for system safety and efficient operation to use

appropriate cable for grid (utility) connection. To reduce risk of injury, please use the

proper recommended cable size as below.

Suggested cable requirement for AC wire

Nominal Grid Voltage

230VAC per phase

Conductor cross-section (mm

)

10-16

AWG no.

8-6

5-2. Connecting to the AC Utility

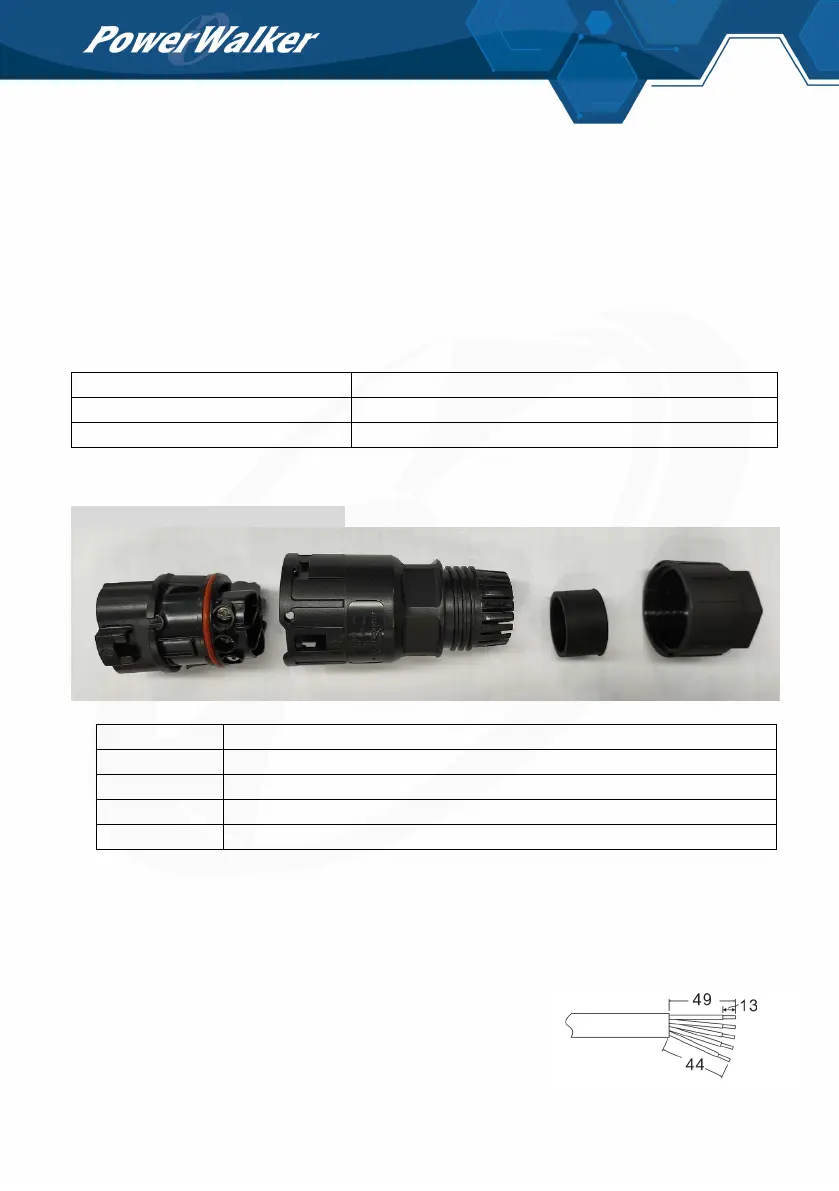

Overview of AC Connection Socket

Component

Description

Pressure dome

Plastic ring

Protective element

Socket element

Step 1: Check the grid voltage and frequency with an AC voltmeter. It should be the

same to “VAC” value on the product label.

Step 2: Turn off the circuit breaker.

Step 3: Remove insulation sleeve 13 mm for five conductors.

Step 4: Thread the five cables through pressure dome

(A), plastic ring (B) and protective element (C) in

sequence.
