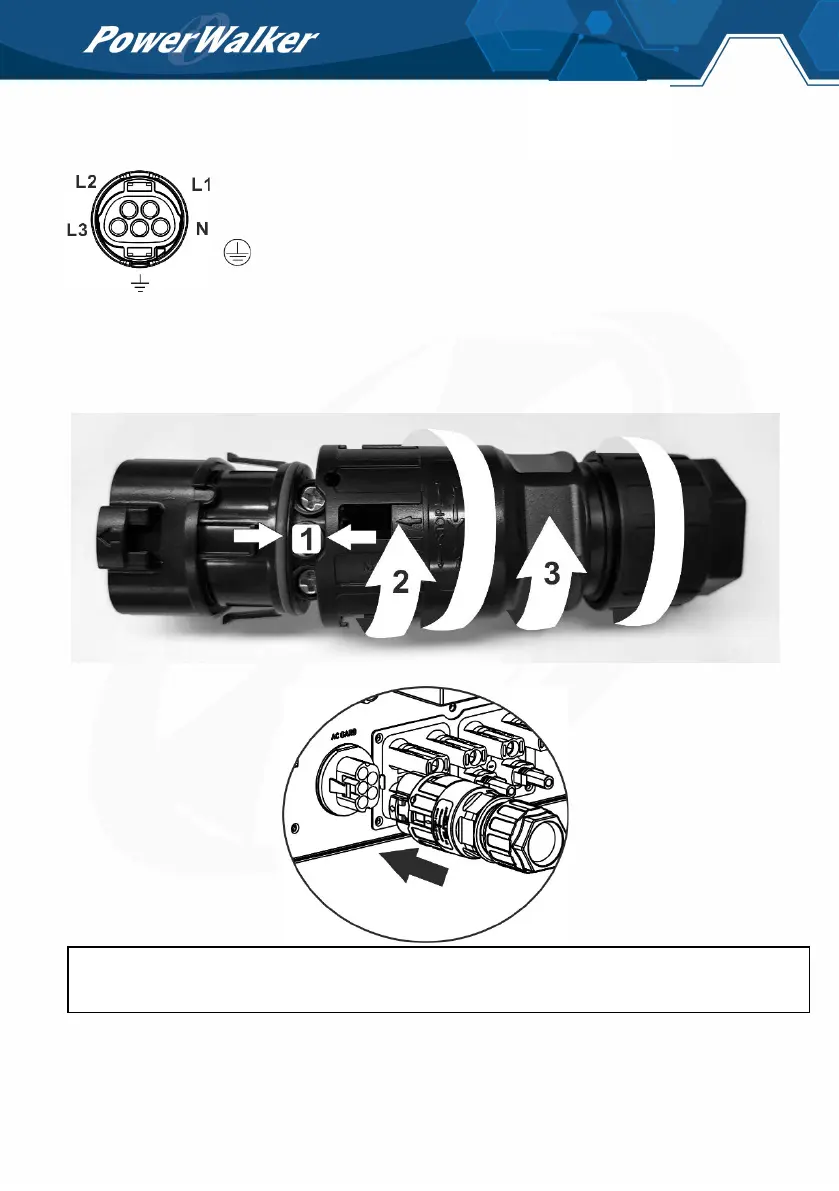

Step 5: Thread five cables through socket element (D) according to polarities indicated
on it and tighten the screws to fix wires after connection.
L1→ LINE 1 (Black)
L2→ LINE 2 (Grey)
L3→ LINE 3 (Brown)
→ Ground (Yellow-Green)
N→ Neutral (Blue)
The reference tightening torque is 1.5-2.5 N.m.
Step 6: Push protective element (C) on to socket element (D) until both are locked
tightly. Then, twist protective element (C) and pressure dome (A) so that all cables are
firmly connected.
Step 7: Plug the AC connection socket into AC grid terminal of the inverter.
CAUTION:
To prevent risk of electric shock, ensure the ground wire is properly earthed
before operating this hybrid inverter no matter the grid is connected or not.
