Product overview
2.3 System assembly

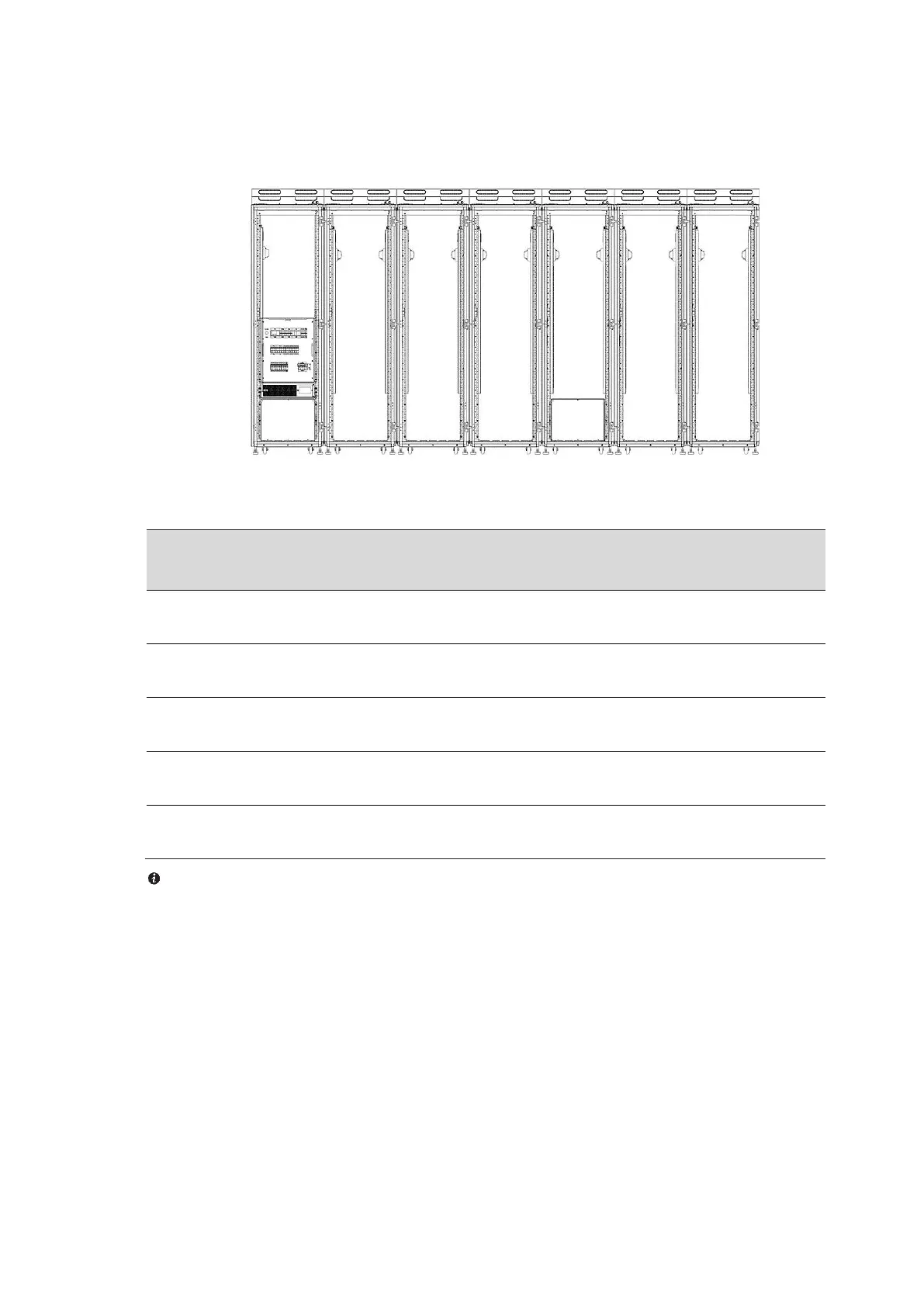

The following figure shows how a system is assembled with one main cabinet and six IT
cabinets for example.
System assembly (1+6 for example)
The following table describes how a system is assembled.
Model
*Load
capacity
Number of
cabinets
UPS
Air-
conditioning
Module
PDU
PMSS6K3C
3 kW*
1 (42U)
6KVA
R03A
PDM6K-P
Basic type 32A IEC20x
C13, 4 x C19 (1PCS)
PMSS6K4S
3.5 kW
1 (42U)
6KVA
E04SE/EW06E
PDM6K-P
Basic type 32A IEC20x
C13, 4 x C19 (1PCS)
PMSS10K4S
3.5 kW
1 (42U)
10KVA
E04SE/EW06E
PDM10KSR-P
Basic type 32A IEC20x
C13, 4 x C19 (1PCS)
PM3MS10K8S
*7 kW
1+2 (42U)
10KVA
E08SE/EW10E
PDM10KMR-P
Basic type 32A IEC20x
C13, 4 x C19 (1PCS)
PM3MS10K(2)8S
*7 kW
1+2 (42U)
2*10KVA
E08SE/EW10E
PDM2*10K-P
Basic type 32A IEC20x
C13, 4 x C19 (1PCS)
Note
The load capacity of the model marked with an asterisk (*) need to be derated to 90%
when the cabinets are used in an environment of 30°C to 40°C.
When using three-phase power, pay attention to the principle of equal load distribution of
each phase and try to distribute the load evenly in each cabinet.
