~ 25 ~

3.6 Installation Process

3.6.1 Installation Precautions

Step 1: Use the steel measuring tape to determine the drilling hole positions on the wall for securing the power

control module and mark the positions using a marker.

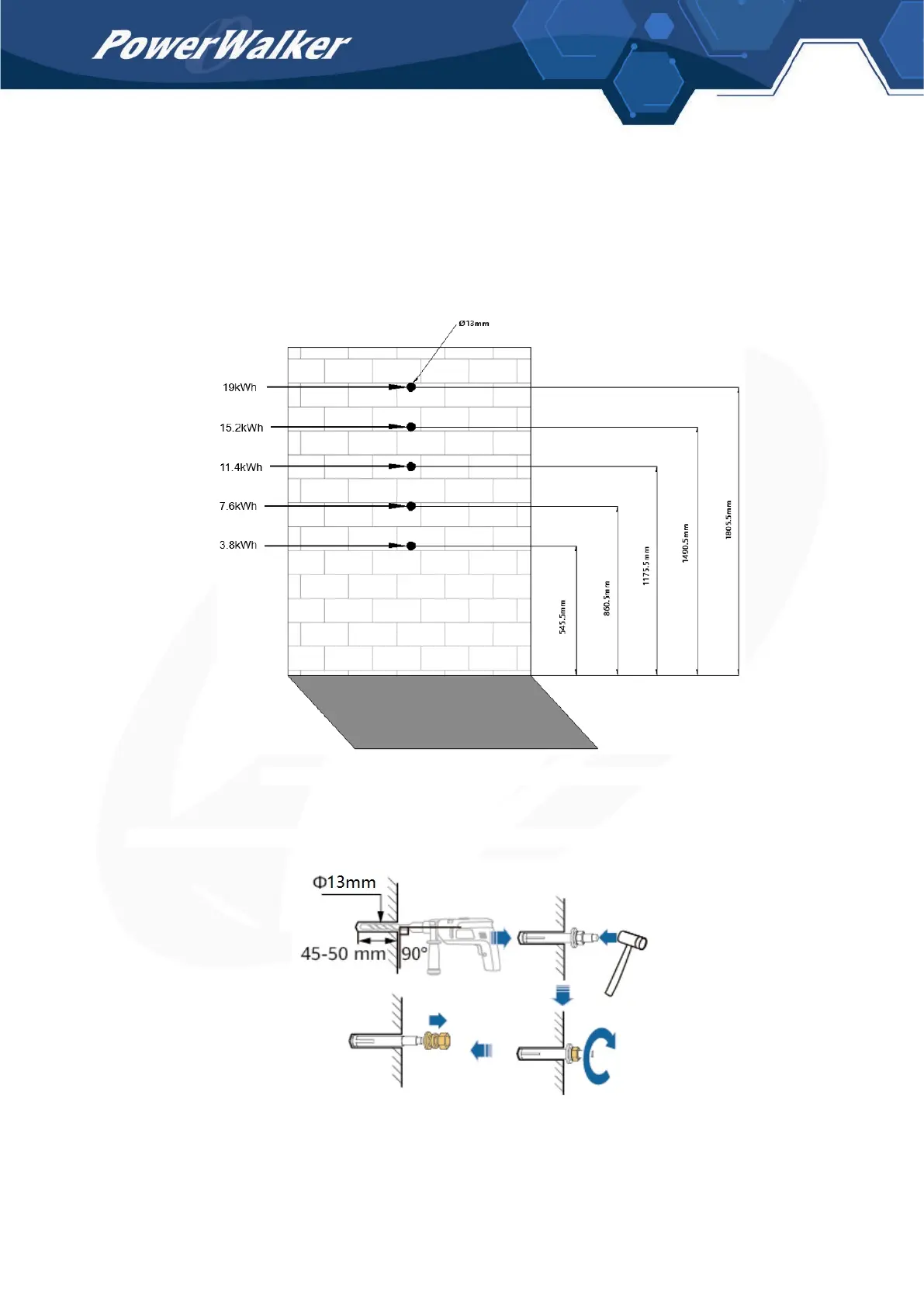

Figure 13 Dimensions of mounting holes for the system on the wall

Step 2: Use a Hammer drill to drill a Ø13mm hole in the wall and insert the M10 expansion bolt into the hole.

Figure 14 Installing expansion bolts.
